20-200mm Width Flat Surface Label Applicator With Top And Back Side Labeler

Detailed Product Description

Machine Size:	1600(L)×550(W)×1600(H)mm	Thickness Of Object:	20-120mm
Power Supply:	220V 50/60HZ 0.75KW	Height Of Object:	30-200mm
Width Of Object:	20-200mm	Height Of Label:	15-180mm
Length Of Label:	25-300mm	Accuracy Of Labeling:	±1mm (excluding Object And Label Error)
Key1:	Label Applicator	Key2:	Cup Labeling Machine
Key3:	Flat Labeling Machine

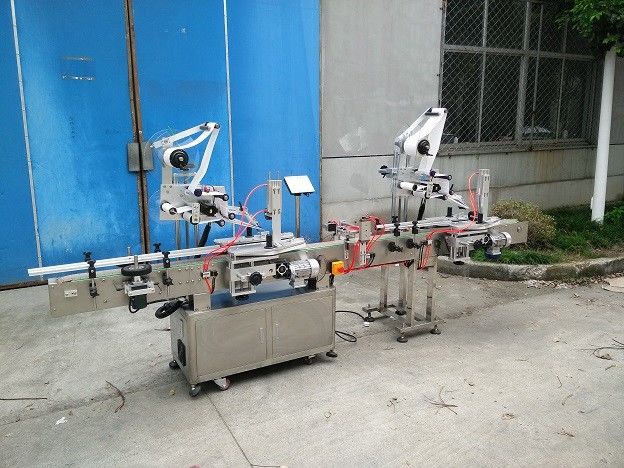

20-200mm width flat surface Label Applicator with top and back side labeler

Features

1. Main body is made by SUS304 stainless steel & high grade aluminum alloy.

2. Labeling head is driven by advanced step motor which is imported from Japan.

3. All the magic eye is advanced photo detector made in Japan.

4. PLC control system is equipped with human interface, including 60 groups of memory unit.

5. Labeling position and height is adjustable.

6. The transportation height can be adjusted by height of production line.

7. Be able to connect with conveyor and production line

8. Transparent label monitor for option.

Technical Parameters

Name	20-200mm width flat surface Label Applicator with top and back side labeler
Labeling Speed	20-200pcs/min
Height of Object	30-200mm
Thickness of Object	20-120mm
Height of Label	15-110mm
Length of Label	25-300mm
Label Roller Inside Diameter	76mm
Label Roller Outside Diameter	300mm
Accuracy of Labeling	±1mm
Power Supply	220V 50/60HZ 0.75KW
Gas Consumption of Printer	5Kg/m2(if add coding machine)
Size of Labeling Machine	1600(L)×550(W)×1600(H)mm
Weight of Labeling Machine	150kg

Configuration:

No.	Part	brand	quantity
1	PLC	MITSUBISHI(Japan)	1
2	Main converter	DANFOSS(Denmark)	1
3	HMI	WEINVIEW(Taiwan)	1
4	Servo labeling motor	DELTA(Taiwan)	1
5	Servo labeling motor driver	DELTA(Taiwan)	1
6	Conveyor motor	H.Y(Taiwan)	1
7	Conveyor motor gearbox	H.Y(Taiwan)	1
8	Spoke motor	GPG(Taiwan)	1
9	Spoke motor gearbox	GPG(Taiwan)	1
10	object detect magic eye	OMRON(Japan)	1
11	optical fiber	OMRON(Japan)	1
12	Label outing detect magic eye	LEUZE(Germany)	1

main brand logo as up

TECHNOLOGY:

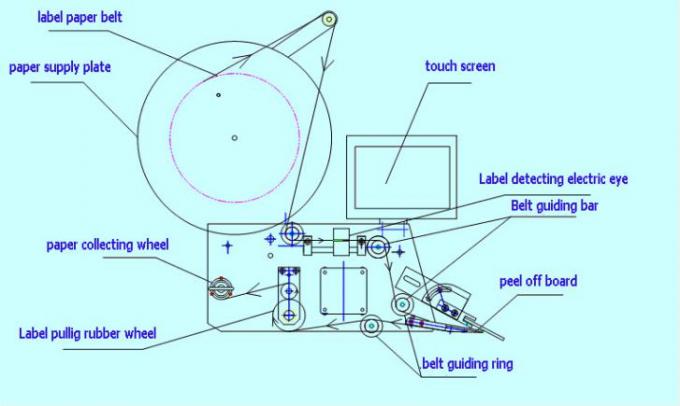

The labeling machine is the most important parts as follow, diffirent parts have diffirent use. According to the specification, we can adjust the label head or master basic knowledge about labeling machine.

1. touch screen

2. detect magic eyes

3. belt guide ring

4. paper label plate

5. peel off board
