7th Battery Label Sticker Vial Labeling Machine

Detailed Product Description

Type:	Conveyor Motor Vial Labeling Machine, 7th Battery Label Sticker Machine For Electronics	Labeling Speed:	60-300pcs/min
Packaging Material:	Wood	Key Word1:	Order Stickers
Key Word 2:	Bumper Stickers	Key Word 3:	Self Adhesive Sticker Labeling Machine
Brand Of Object Feeding Motor:	GPG（Taiwan）	Object Detect Magic Eye:	OMRON（Japan）
Height Of Label:	20-90mm	Length Of Label:	25-80mm

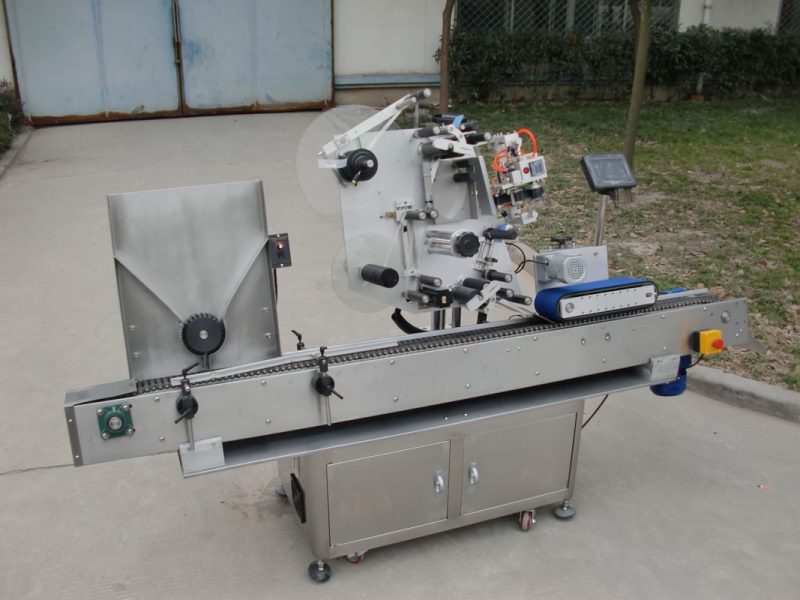

Conveyor motor vial labeling machine, 7th battery label sticker machine for electronics

Working principle:

1. Core principle: The object detect magic labeling machine detects theproduct, go back to the signal by the labeling control system, in the appropriate position control system control send label and attached with the product. For labeling position,product floes through the device.coating attached on the product label.

2. The operation process: Put product (line) product delivery product separation labeling (equipment automatically) collect product of labeling

Technical Parameters:

Name	Conveyor motor vial labeling machine, 7th battery label sticker machine for electronics
Height of Label	25-95mm
Length of Label	25-80mm
Gas Consumption of Printer	5Kg/m2(if add coding machine)
Label Roller Inside Diameter	76mm
Label Roller Outside Diameter	280mm
Height of Object	20-90mm
Length of Label	25-80mm
The packaging details:	wooden case export packing
Power Supply	220V 50/60HZ 2KW
Accuracy of Labeling	±1mm
Labeling Speed	60-200pcs/min
The port of shipping	60-200pcs/min

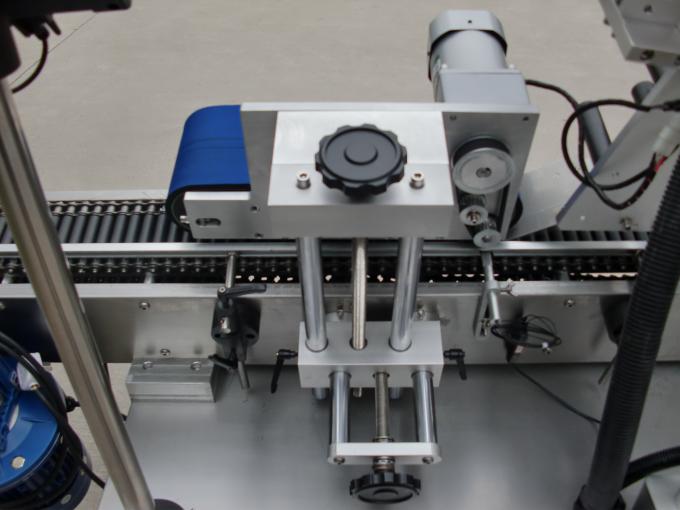

Mechanical adjustment

1. rolling labeling :Put down the platen of rolling labeling then modify the stainless bottom wall. Please install the paper plate and platen after fix the screws if bottom wall and tap can match with rolling plate at the same level (Note: do not match internal hole of paper plate with stainless centre localization roll tightly), then fix again with screws. Please check whether paper plate can turn around smoothly, if not, please modify it according to the above steps until it can turn round smoothly.

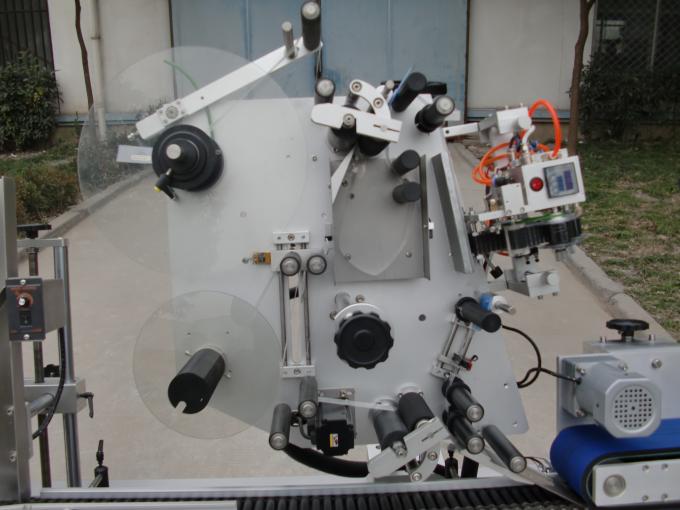

2. Object detect magic eye: Requirement of thread in the label tapes: First, check flexibility of all rollers on the line which label will pass; please adjust it until it can work smoothly. For thread in method, please take the sketch map on the next page as reference, arrow direction refers to the direction which labels go through. please take a special note that labels must go through in the middle of the opposed photo-sensor to insure the photo-transmission device is keep running. (up and down position of photo-transmission device can be adjusted to ensure electrical eye can irradiate the gap between labels.

FAQ:

Labels can't be labeled on the bottle reasons: Bottle arrive at labeling position can not match the time of label's out

Ways:

1. Modify the transfer speed. Such as if label already came out when bottle arrive, it can slow down the transfer speed.

2. Modify opposed photo electricity .Move the bracket which fix on the transfer device a little left and then press “start" to run the machine. if speed of labeling out still not accurate ,it can be modified best condition according to above procedure
