Detailed Product Description
| Function: | Sticker Labeling | Accuracy Labeling: | ±1mm |
|---|---|---|---|
| Driven Type: | Electric | Bottle Diameter/width: | 30-140mm |
| Manufacture Speed: | 200BS/Min | Label Max Width: | 190mm |
| Packaging: | Woodcase With PE Firm | Warranty: | One Year |
| Machine Size: | 3048mm X 1400mm X 1650mm |

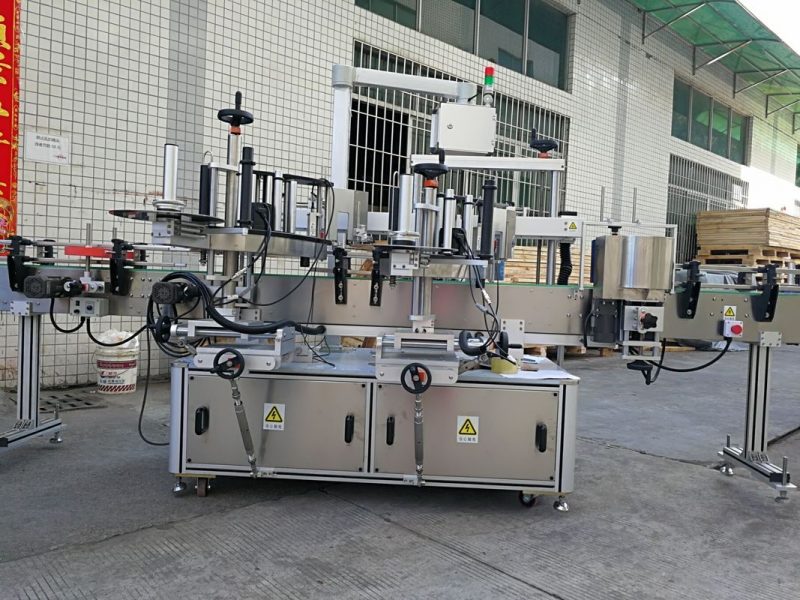

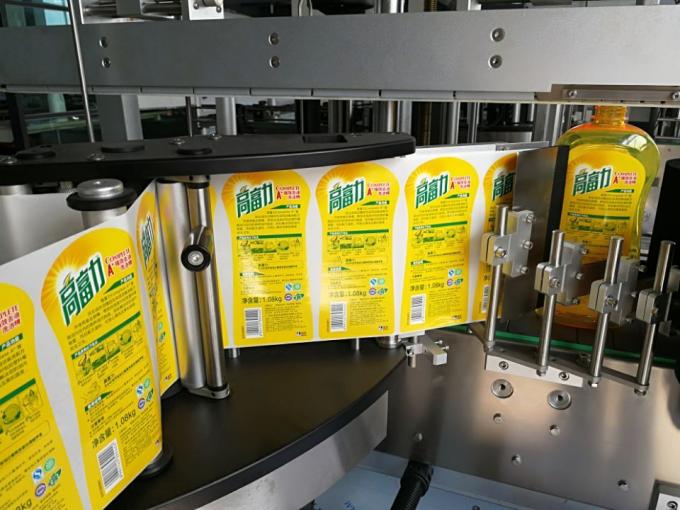

Full-Auto single side labeling machine self adhesive labeling system
Application for
1 , Suitable for three kinds of bottle shape (round, square, flat etc.), makessingle labeland orientation labeling requirement possible. Speed up to 60 bottles per minute for orientation labeling;one side offlat / square bottle labeling speed up to 200 bottles per minute. (up to bottle size and label size)
2 , Installed round bottle labeling device , adhesiving wrap around labeling for round bottles , plus one sensor ,can realize orientation labeling of the round bottles. The speed is around 2500B/H, max label high 168mm (accept custom)
Installed square bottle wrap around device ,can apply one label with multi-faces of square bottle
3 , Using 114.6 mm chain board width ,applications to bottle diameter / width 30-140mm for flat bottle, round bottle, square bottle and some irregular bottles
4 , Labeling head: Width 200mm,suit max label high 190mm, eight orienation adjustment
5 , Ribbon date printer and injek printer for options
6 , Labeling all kinds of bottles ,only need to adjust machine
Technical Parameters
| Production speed | 45m/min |
| Labeling accuracy | ±1mm |
| Label max width | 190mm |
| Bottle diameter | 30-140mm |
| Label inner diameter | 76.2mm |
| Label outer diameter | Max330mm |
| Outline size | L2000×W700×1400mm |
| Air source | 4-6KG 30L/MIn |
| Using power | 220V 50HZ 1200W |
Description
1 ,For label: self-adhesive labels, self-adhesive film, electronic supervision code, bar code, etc.
2 ,Applicable products: Requires the side plane, side sweeping surface, the circumferential surface attached label.
3 ,Industry: Widely used in cosmetics, daily chemical, electronics, pharmaceutical, metal, plastics and other industries.
4 ,Application examples: Head & Shoulders shampoo flat bottle labeling, Shell Lubricants flat bottle labeling, labeling and fresh wine.
5 ,.Applicable to the pharmaceutical, food, cosmetic and other light industrial products such as square, flat bottles on the single labeling.
6 ,The man-machine interface system is advanced and compatible, easy operation, complete functions, has a wealth of online help function
7 , The bottle dividing device shaped general, any diameter of the bottle without replacement parts, rapid positioning adjustment; bilateral chain correction device ensure the material on the neutral
8 , Special elastic pressing equipment ensure seeding materials stability
9 , Automatic optical inspection, have nothing items come without labeling, and without label automatic correction or alarm and automatic detection function, to prevent leakage and waste
10 , Labeling speed, conveyor speed, sub-bottle speed stepless speed, adjust as needed
11 , The machine has the advantages of simple structure, compact structure, convenient operation and maintenance
Tag: square bottle labeler, jar labeling machine
