Detailed Product Description
Warranty Of Equipment: | 12 Months | Labeling Precision: | ±1mm |
---|---|---|---|
Label Height Max.: | 190mm | Equipment Type: | Self Adhesive Labeling Machine |
Equipment Outer: | 3048mm X 1700mm X 1600mm | Labeling Goods: | Glass Bottle ,plastic Bottle ,container |
Applications: | Bevarage/Drinks/Daily Chemical |

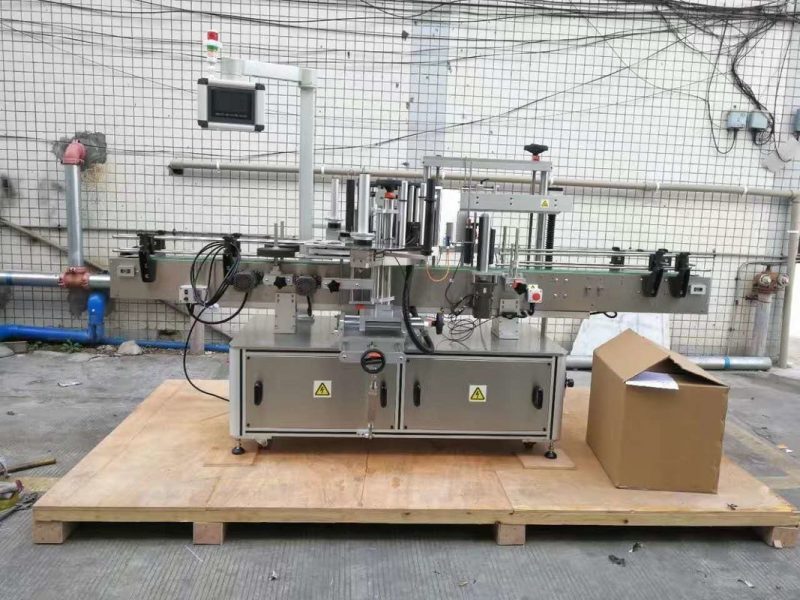

Automated Label Applicator Detergent Bodylotion Hair Conditioner Labeling Machinery
Suitable for
1. This machine suit for one side or double sided labeling of the square bottle,flat bottle and round bottles
2. Installed round bottle labeling device ,adhesiving labeling for round bottles , plus one sensor ,can realize orientation labeling of the round bottles.The speed is around 2500B/H,max label high 168mm (accept custom)
3. Using 82.6mm chain board width ,applications to bottle diameter / width 30-110mm for flat bottle, round bottle, square bottle and some irregular bottles
4. Labeling head: Width 200mm,suit max label high 190mm,eight orienation adjustment
5. Ribbon date printer and injek printer for options
6. Labeling all kinds of bottles ,only need to adjust machine
7. For oval bottle, only need to adjust oval bottle labeling device.
Technical Parameters
Production speed | 45m/min |
Labeling accuracy | ±1mm |
Label max width | 190mm |
Bottle diameter | 30-100mm |
Label inner diameter | 76.2mm |
Label outer diameter | Max330mm |
Outline size | L2000×W700×1400mm |
Air source | 4-6KG 30L/MIn |
Using power | 220V 50HZ 1200W |
Before / After sales service
1. We can accept customer labeling machine according to customer plant and labeling requirement
2. Customer can send engineer to our factory for trainning,the training cost for free ; or we send engineer to your place for trainning but need pay related charges.
3. During using machine,have small problem for debugging,send us the video or picture,we can tell you how to settle by whatsapp or skype or wechat ,or we take solution video as soon as possible.you follow it
4. Machine with one year warranty expect wearing parts and human factors,Irresistible factor
5. Machine with whole life maintainance .
Product Feature
1 , This labeler is full- automatic and can label on any shape bottles : single-side labeling and double-sides.
2 , Widely used in medicine, daily chemicals and cosmetic, food and beverages industries.
3 , Equipped with PLC control system and Touch Screen Control.
4 , The machine automatically stop running when no label and no product.
5 , Coding device can be equipped if customer need to print batch No, date No. Or other numbers on label.
6 , Photoelectric detecting make labeling in high speed and high accuracy.
7 , Have a very good labeling effect, no crumple and no bubble.
8 , Used high class of stainless steel and aluminum alloy. The whole machine structure has high strength and good

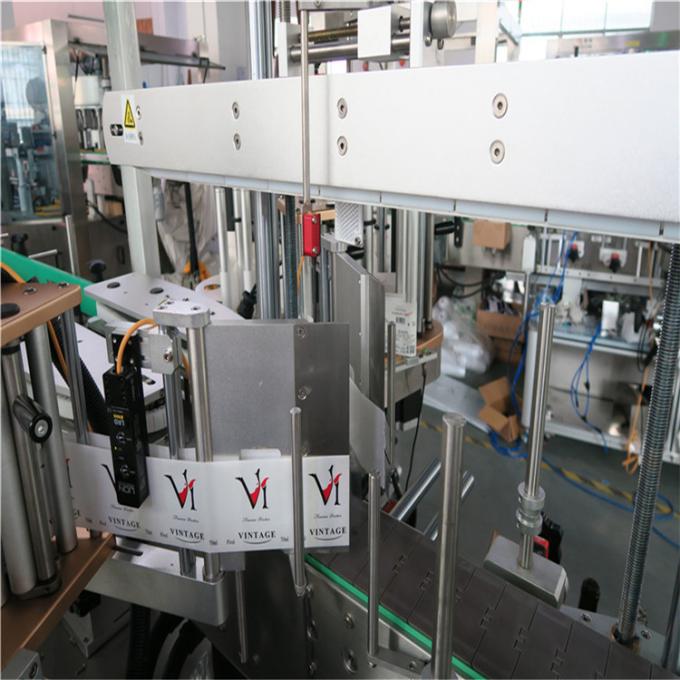

Labeling device

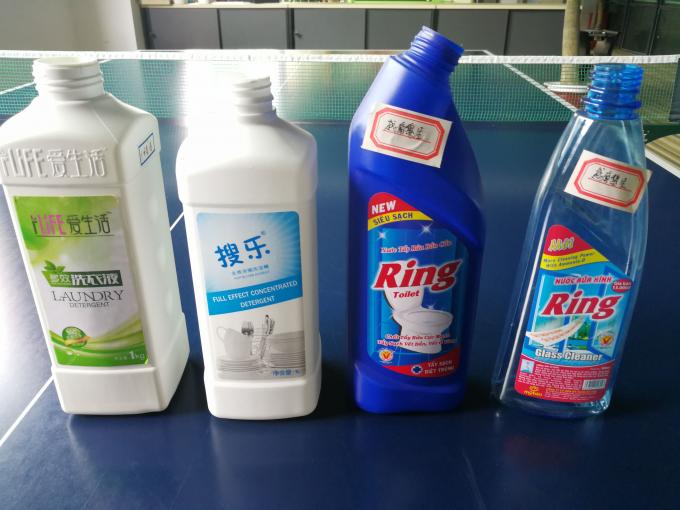

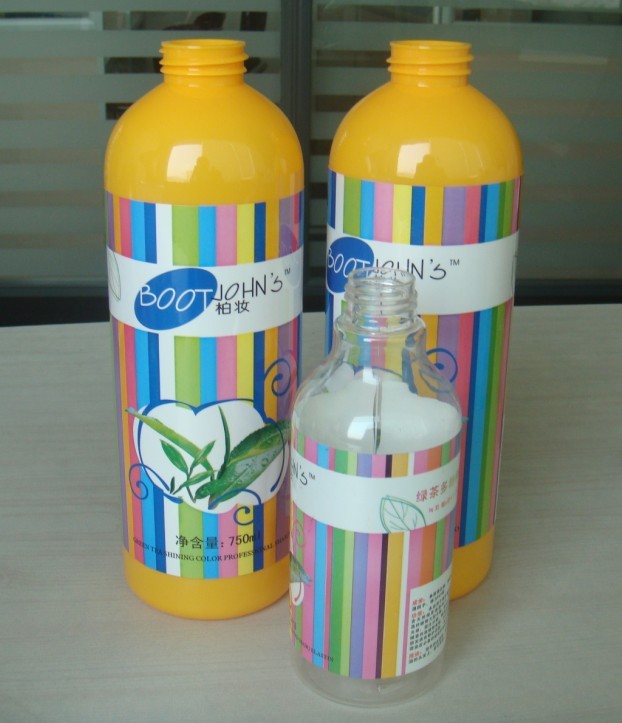

Labeling bottle samples
Tag: auto labeler machine, automated label applicator
