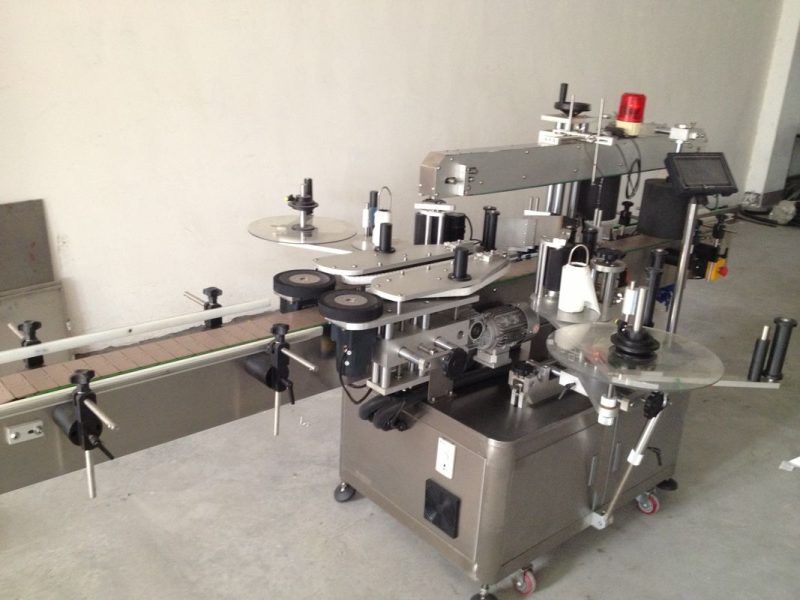

Automatic Beer Bottle Double Side Sticker Labelling Machine

Detailed Product Description

Material:	SUS304	Height Of Product:	30-280mm
Thickness Of Product:	20-200mm	Height Of Label:	5-150mm
Length Of Label:	25-300mm	Accuracy Of Labeling:	±1mm
The Inner Of Label Roller:	76mm	The Outside Of Labeling Roller:	350mm
Origin:	Shanghai	Optical Fiber:	OMRON（Japan）

Automatic round bottle double side sticker labelling machine for beer bottle

Quick Details:

Automatic Grade: Automatic

Driven Type: Electric

Power Supply: 220V 3.5KW Single-phase 50/60HZ

Height of Object: 30-350mm

Applicable Diameter of Bottle Body: 20-120mm

Height of Label: 5-180mm

Place of Origin: Shanghai,China(Mainland)

Size of Labeling Machine: 2800(L)×1650(W)×1500(H)mm

Weight: 450Kg

Label roller outside diameter: 420mm

After-sales Service: Provided engineers available to service machinery overseas

Labeling Speed: 60-350bottles/min

Application:

This servo motor automatic wrap round bottle labeling machine is applicable for all kinds of flat objects such as food, chemical, pharmaceutical, cosmetic, stationery, CD disc, carton, box and various oil kettles etc.

Customer's service:

1. VKPAK can provideo turn-key project for you, only you have any idea to start beverage factory plant.

2. VKPAK have professional design team, our engineer can draw bottle samples and flow chart of workshop for you .

3. VKPAK give you the best quotation for all kinds of beverage production, only you can tell me which kind of drink you want to product, what is your capacity(how many bottles one hour) what is you bottle material, pet or glass,etc

Spare part:

Name: Timing belt Number: 1 pcs

Name: O-belt Number: 2 pcs

Name: Hexagon wrench Number: 1 set

Name: Cross screwdriver Number: 1 pcs

Name: One screwdriver Number: 1 pcs

Configuration:

No.	part	brand	quantity
1	PLC	MITSUBISHI(Japan)	1
2	Main converter	DANFOSS(Denmark)	1
3	Bottle separating frequency convertor	DELTA(Taiwan)	1
4	HMI	WEINVIEW(Taiwan)	1
5	Servo labeling motor	DELTA(Taiwan)	2
6	Servo labeling motor driver	DELTA(Taiwan)	2
7	Conveyor motor	H.Y(Taiwan)	1
8	Conveyor motor gearbox	H.Y(Taiwan)	1
9	Spoke motor	GPG(Taiwan)	1
10	Spoke motor gearbox	GPG(Taiwan)	1
11	Bottle separating motor	GPG(Taiwan)	2
12	Bottle separating motor gear box	GPG(Taiwan)	2
13	object detect magic eye	OMRON(Japan)	1
14	optical fiber	OMRON(Japan)	1
15	Powder	DELTA(Taiwan)	1
16	No label alarm magic eye	OMRON(Japan)	2
17	Label outing detect magic eye	LEUZE(Germany)	2

Important alert

• Please note the specification before using, especially the proper circumstance for using.
• Operators of this machine must be trained specially
• Installation and examination must be carried out by professional.
• Before installation, you are expected to check if all the parts are ready without missing, as well as files.
• The system must be reliably grounded.
• All the safe indications must be obeyed strictly.
• Do please check the connecting parts are all connected correctly before you turn on the power.
• Do not put your hands or figures into the machine, in order to not get your figures hurt by the machine.
• Do not uninstall the machine before the machine stop working, do please turn off the power before you uninstall the controller box.
• Do no place anything inflammable on the machine.
