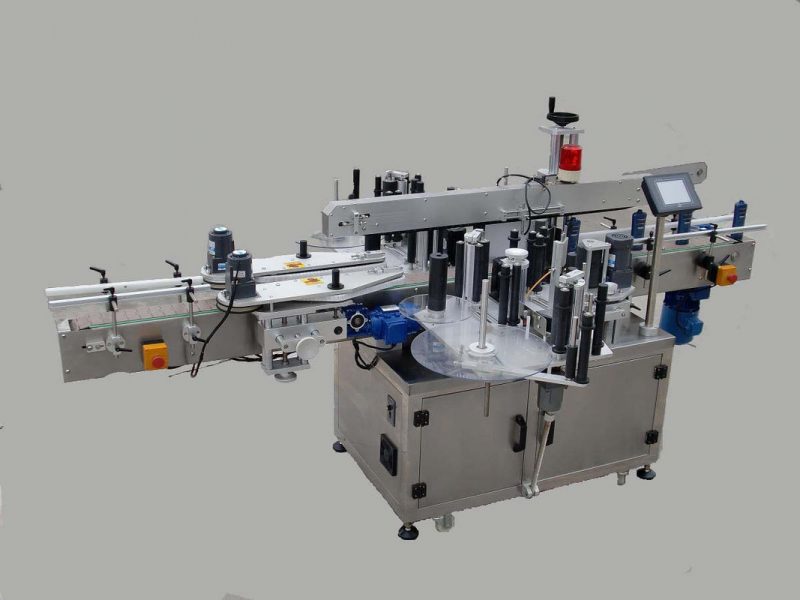

Automatic Double Side Sticker Labeling Machine With Paging Device And Coding Machine

Detailed Product Description

Labeling Speed:	60-200pcs/min	Height Of Object:	30-280mm
Thickness Of Object:	20-200mm	Height Of Label:	5-150mm
Length Of Label:	25-300mm	Accuracy Of Labeling:	±1mm
Power Supply:	220V 3.5kw 50/60HZ	Payment Term:	T/T L/C
Powder:	DELTA（Taiwan）	No Label Alarm Magic Eye:	OMRON（Japan）
Optical Fiber:	OMRON（Japan）

label automatic doubel side sticker labeling machine with paging device and coding machine

Model of labeling machine:

LABELING MACHINE SIZES	LABELING SPEED	CONTAINER	WEIGHT
2800(L)×1650(W)×1500(H)mm	60-200PCS/MIN	double sides round or square cans bottles	250kg
1600(L)×550(W)×1600(H)mm	20-200PCS/MIN	flat surface boxes paper cans	150kg
440(L)×250(W)×600(H)mm	20-50pcs/min	semi-auto flat boxes cans	25kg
2000(L)×1100(W)×1300(H)mm	20-200pcs/min	round bottles cans	150kg
2000(L)×1100(W)×1250(H)mm	20-40pcs/min	fixed position round bottle	150kg
570(L)×250(W)×500(H)mm	20-50pcs/min	semi-auto round bottle cans	25kg
2500(L)×1250(W)×1750(H)mm	60-500pcs/min	horizontal small round bottle	150kg

Quick Details:

Automatic Grade: Automatic

Driven Type: Electric

Power Supply: 220V 3.5KW Single-phase 50/60HZ

Height of Object: 30-350mm

Applicable Diameter of Bottle Body: 20-120mm

Height of Label: 5-180mm

Place of Origin: Shanghai,China(Mainland)

Size of Labeling Machine: 2800(L)×1650(W)×1500(H)mm

Weight: 450Kg

Label roller outside diameter: 420mm

After-sales Service:Provided engineers available to service machinery overseas

Labeling Speed: 60-350bottles/min

Application:

The labeling Machine is suitable for all kinds of regular and irregular containers, flat surface or round bottles, especially ideal for flat surface and square containers.

Features:

1. It can make labeling on both sides at the same time efficiently. Of course client can choose to make one side or double sides labeling.

2. Client can choose to add coding machine.

3. It can work separately or work connecting with conveyor.

4. Equipped with touch screen & PLC control system.

Competitive Advantage:

1. After test the machine for you,we will send the whole machine by ship or other ways you want, which means you even have no need to reassemble the machine, just move to the factory, and press the switch button, it will work well.

2. We have professional English/Spanish/Japanese/Korean/Portuguese/French salesman, if any problem after you received you machine, we will go through with you all the time.

Tag: bottle sticker labeling machine, automatic label applicator machine
