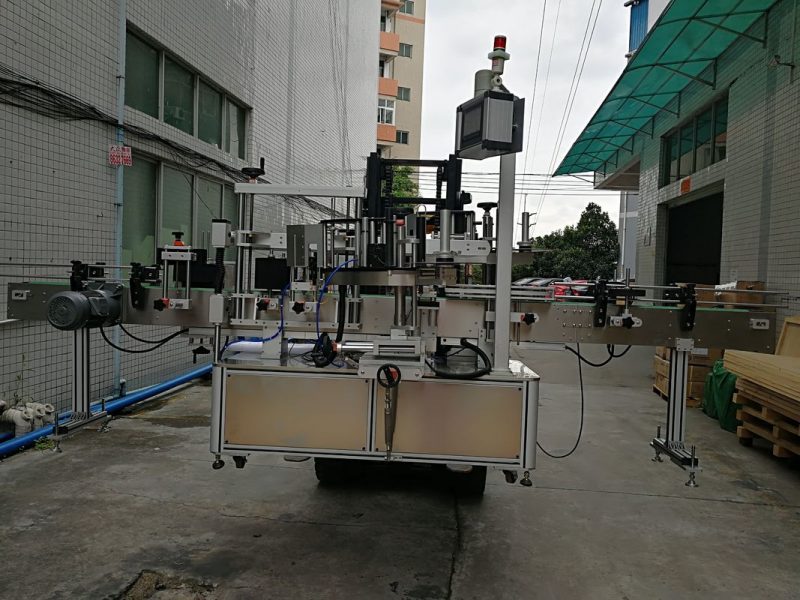

Automatic Double Side Sticker Labelling Machine Label Applicator For Plastic Jar

Detailed Product Description

Warranty Of Equipment:	12 Months	OEM & ODM:	Labeling Machine
Control System:	PLC And Touch Screen	Name Of Machine:	Self Adhesive Labeling Machine
Specification:	3048mm X 1700mm X 1600mm	Labeling Packaging:	Glass Bottle ,plastic Bottle ,container
Applications Area:	Bevarage/Drinks/Daily Chemical

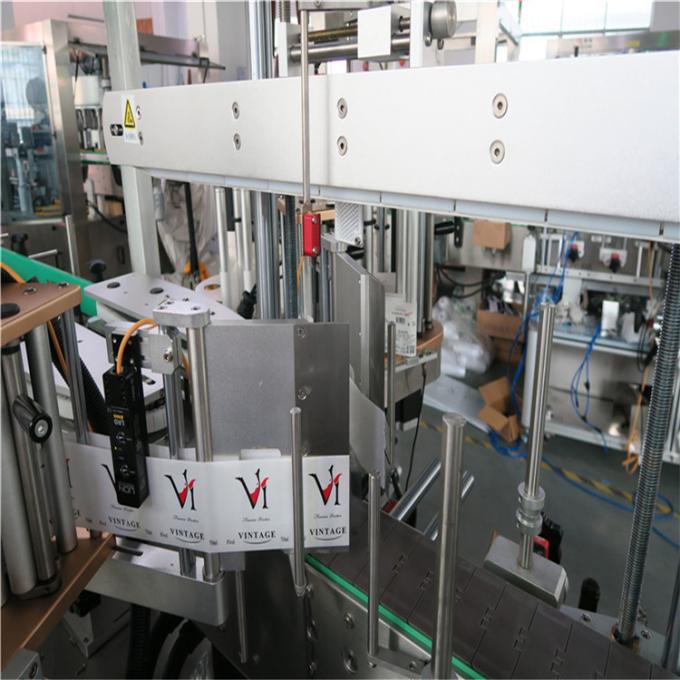

Automatic Double Side Sticker Labelling Machine Label applicator for plastic jar

Applications for

1, This machine suit for one side or double sided labeling of the square bottle,flat bottle and round bottles and oval bottle in chemicals, petroleum, machine oil, cleaning supplies, food and beverage, pharmaceutical ​industries speed 4000-8000B/H

2, For oval bottle, only need to adjust oval bottle labeling device.

3 , Installed round bottle labeling device ,adhesiving labeling for round bottles , plus one sensor ,can realize orientation labeling of the round bottles.The speed is around 2500B/H,max label high 168mm (accept custom)

4 , Using 82.6 mm chain board width ,applications to bottle diameter / width 30-110mm for flat bottle,round bottle,square bottle and some irregular bottles

5 , Labeling head: Width 200mm,suit max label high 190mm,eight orienation adjustment

6, Labeling all kinds of bottles ,only need to adjust machine

Technical Parameters

Production speed	45m/min
Labeling accuracy	±1mm
Label max width	190mm
Bottle diameter	30-100mm
Label inner diameter	76.2mm
Label outer diameter	Max330mm
Outline size	L2000×W700×1400mm
Air source	4-6KG 30L/MIn
Using power	220V 50HZ 1200W

Product Feature

1 , This labeling machine is made of SS 304 and high-class alloy, the controlling system adopts advanced PLC with touch screen.

2 , Unique design, new style, complete functions, multi-purpose, convenient in operation, beautiful construction, high automaticity

3 , This machine can stick Double Sides Lables on various olive, round, squarel objects, bottles, jars, boxes, hardwares, etc

4 , This labeling machine can work independently, and can be installed on any product lines, work with automatic filling machine, capping machine, coding machine, etc.

Tag: can labeling machine, sticker applicator machine
