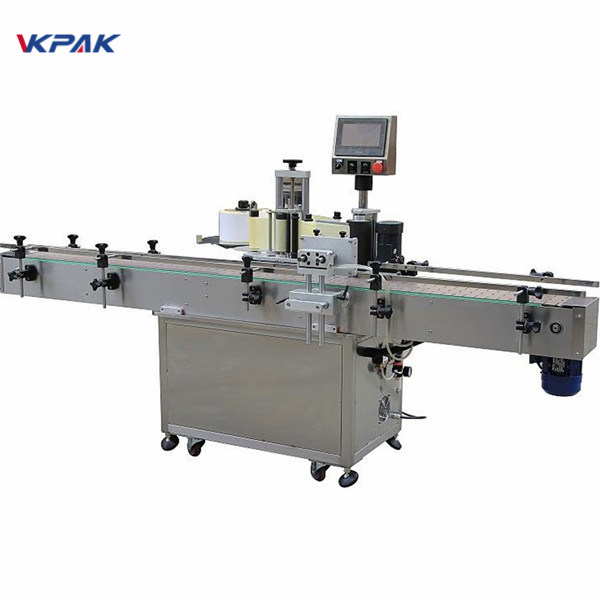

Automatic Oil Vertical Self Adhesive Round Bottle Labeling Machine
Detailed Product Description

Machine Size:2000x(L)x1100(W)x1300(H)mmOutput Speed:20-200pcs/min
Hight Label Object:30-280mmLabel Hight:15-140mm
Label Length:25-300mmPower Supply:220V 1.5HP 50/60HZ

self adhesive round bottle labeling machine with full automatic oil vertical automatic sticker

Features

1. Operation: PLC control system makes labeling machine easy to operate
2. Material: Labeling machine's main body is made of SUS304 stainless steel
3. Configuration: Our labeling machines adopt well known Japanese, German, American, Korean or Taiwan brand parts
4. Flexibility: Client can chose to add printer and code machine; can chose to connect with converyer or not.

Name :self adhesive round bottle labeling machine with full automatic oil vertical automatic sticker
Labeling Speed : 60-350pcs/min
Height of Object : 30-350mm
Thickness of Object : 20-120mm
Height of Label : 5-180mm
Length of Label : 25-300mm
Label Roller Inside Diameter : 76mm
Label Roller Outside Diameter : 420mm
Accuracy of Labeling : ±1mm
Power Supply : 220V 50/60HZ 3.5KW
Gas Consumption of Printer : 5Kg/m2(if add coding machine)
Size of Labeling Machine : 2800(L)×1650(W)×1500(H)mm
Weight of Labeling Machine : 180kg

Our Services

1. Offer you professional labeling sulution according to your specific labeling requirements.

2. Supply you high quality labeling machine after placing order.

3. Try to make the delivery time as short to meet your needs.

4. Provide you lifelong free technial support after you receiving our machine.

FAQ

1. What kind of labeling machine do you have?

Dear Customer, we have automatic and semi-automatic labeling machine for round containers and flat surface.

Some model for one label and others for two labels or even more. And we can design the machine according to your specific

labeling situation.

Thus, pls fell free to send us your labeling requirements, we'll provide you satisfying labeling solution.

2. Could we add coding machine to print date and lot No.?

Yes, you can chose to add coding machine to print the letters and No. you want.

It's hot stamp and can print at most three lines.

3. What information should we supply to check the suitable model?

Pls send us picture of your container and label, as well as the container and label size.

Pls also tell us what kind of label you use, if possible. (For exampe, self-adhesive, could glue, hot glue, etc. whether the label are in roll or pieces.)

Then, we'll let you check the suitable model.

Packaging & Shipping

  • Port: Shanghai
  • Packaging details: wooden case export packing
  • Delivery detail: Normally 12-15 days after receipt of payment

Application

self adhesive round bottle labeling machine with full automatic oil vertical automatic sticker is suitable for all kinds regular andregular containers, flat surface or round bottles, especially ideal for flat surface and squarcontainers.

Tag: bottle label applicator machine, glass bottle labeling machine
