Automatic Single / Double Side Hexagon Round Bottle Sticker Labeling Machine

Detailed Product Description

Adhesive Type:	Sticker	Error:	±1mm
Optional Device:	Laser Printer	Warranty:	220V/380V
Max Outer Diameter Of Label:	330mm	The Power Of Motor:	1200W

Automatic Sticker Labeling Machine Single / Double Side Hexagon Round Bottle Labeler

Device Advantages

1 , Imported electric elements, stable performance, low failure rate.

2 , Adopting photoelectric detection, PLC control system, software operation, conveyor belt, labeling.

3 , accurately and high precision.

4 , Can be operated alone or contract with the production line.

5 , No bottle not labeling, automatic alarm when achieve leakage label.

6 , The whole machine use the material of S304 stainless steel and anodized senior aluminum alloy, with high corrosion resistance and never rust.

Characteristics

1 , It is easily to operate, servo motor control label,The machine is suitable for round bottle or round container to label control system adopted matsushita stepper two-axis PLC control, control, collocation large LCD human interface.

2 , Standard score better bottle wheel for roundness and labeling speed is less than 80 bottle per minute.
Separating screw labeling speed per minute for more than 80 bottle or more bottles and standing firm.

3 , Speed is synchronized with conveyor speed track, can be used with 650mm diameter turntable automatically into the bottle. Optional hot foil printer.

This machine is made of SUS304 and aluminum alloy to meet GMP standards label.

Functions

1 , The Labeling machine adopts imported PLC control system, elected Germany transparent photoelectric device,variable speed motors,conveyor chain board and imported belt related parts.

2 , The quick printer adopts the motor drive,gas drive.The words in the ribbon are clear and clean.

3 , Host design absorbs imported machines' labeler transmits way,solving the general domestic labeling unstable factors.

4 , Without special training,the general staff after instructions were able to operate and maintenance.Standardization of electrical components,make purchase fittings is easy,convenient for daily maintenance management.

5 , The Labeling Machine is suitable for different bottles,easy to adjus,can be finished in a short time.

6 , The whole machine is designed to meet GMP standard.

7 , Adopt imported stepping motor control,Japan fiber, Taiwan technolog,Ensure labeling machines quality.

Application

This machine is suitable for medicine,chemical,food,commodity etc.Labeling for bottle and box of flat, square, circle, elliptic, tapered, single orientation etc.

Function

1 , The range of labels is extended because of high -power serco motor ,solves the common problem of theinsufficient strength.

2 , The advanced kind human interface system, on-line helping system,really human-machine communicating. It is easy to operate so the worker can operate the machine in several hours.

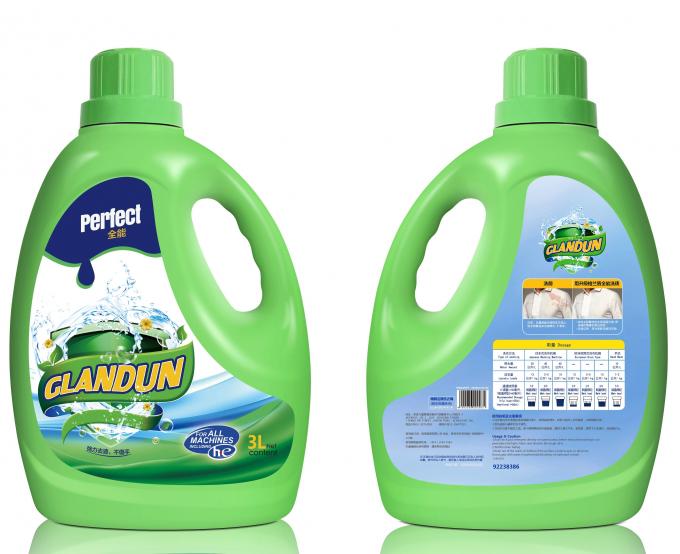

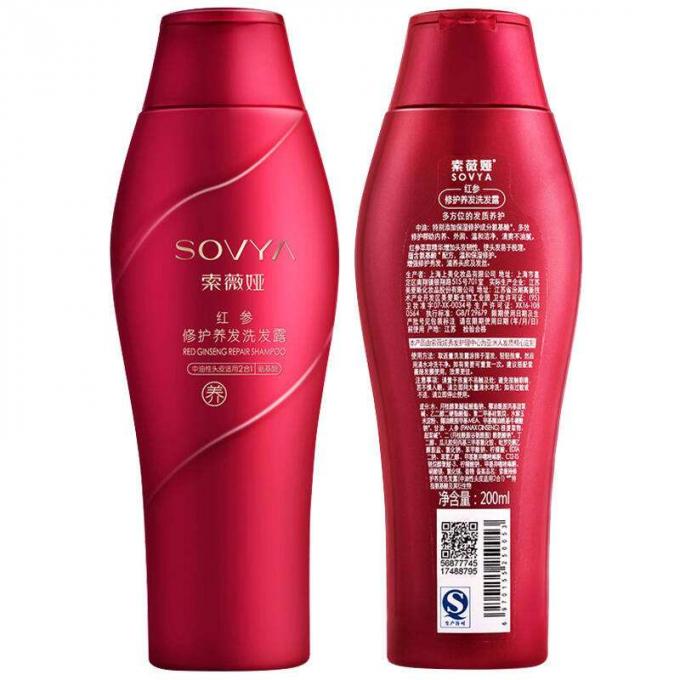

3 , Can be choose to label one piece or two pieces. And it can label the washing hand liquid bottles in front and b ack at the same time.

4 , The Multi-function round bottle labeing machine is application to label cylinder bottles for daily chemical , beverages, pharmaceuticals etc.

5 , The machine adopts the special structure of air driving and labeling rollers with high labeing accuracy .

6 , The machine is particularly applicatable to circular label forbig round bottles, high repeat accuracy, without air bladder, with specia design, no need the structure of separate bottle it makes the system easier ,higher efficiensy .

7 ,  Automatically the machine adopts our company palent technology .

8 , The inaccurate labeling is Eliminated largely becase of the structure of three rollers capable of locating labeing position.

Features

1 , Working Process for Automatic Singel/Double Sides Self-Adhesive Labeler/Labeling Machine

2 , The product of bottle body separated, the sensor detects the product passes the signal returned to the labeling control system, the control system in place to control the motor sends label affixed to the product subject to labeling and position, product flow the standard unit cover, covered with standard rotation driven products, the label is roll coating, a label attached to the action is completed.

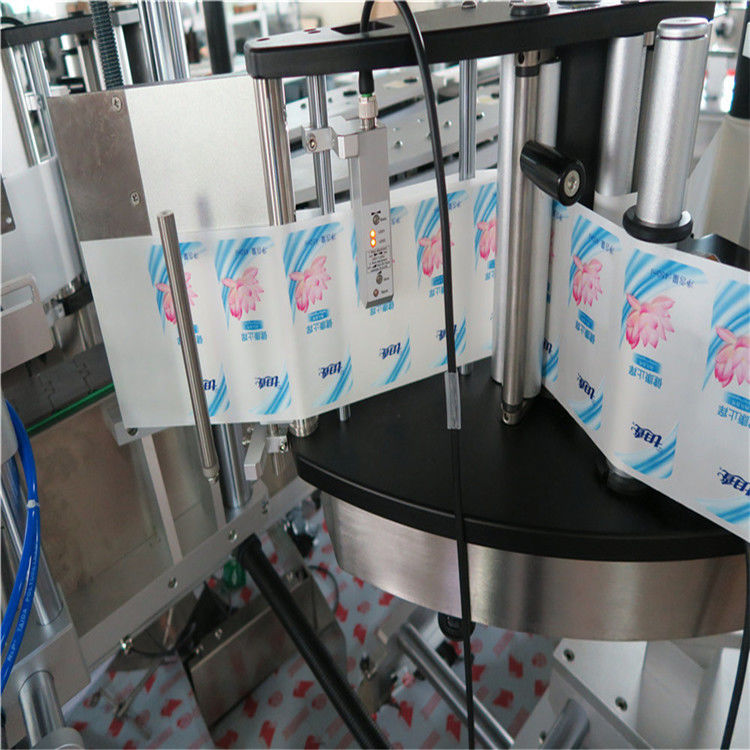

Introduction Of Machine Structure

1 , All feeding label guide bar use heavy whole process, for making sure every guide bar with the vertical degree, ensure feeding label is stability.

2 , The machine has the vertical, horizontal of regulatory agencies, label can be realized position before and after adjustment for direction, suitable for various products, various position labeling. Adopt Japanese Mitsubishi PLC control system, a more stable performance.

3 , Part of labeling head

Labeling head mainboard:Using 30mm thick aluminum alloy plate , The whole process of grinding,ensure that plane grinding surface smoothness.The surface of aluminum alloy anode processing, gush arenaceoustechnology, ensure hardness and beautiful.

4 , The bottom of labeling head adopt whole seal structure, to avoid danger snap.

5 , Head motherboard adopt the most advanced CNC processing centerproduction, to ensure that each size precision.

6 , Feeding label part use five axis positioning, the max ensure feeding label process is stability.
Label and feeding label roller nearly 2 / 3 of the contact area, great avoid label and the roller sliding, improve accuracy of feeding label.

7 , Feeding label and recover label part use synchronization skid, avoid the label will been snapped.

Our Advantages

1 , We carry out careful inspection and running and debugging for each machine before they are delivered to the customers, to ensure we maintain the highest customer satisfaction of the machine. Therefore, our company enjoys high level of business credit among our customers in the industry for our high quality of machines delivered.

2 , Also, we have professional engneers who ensures correct manufacturing for the machines according to designs and if the customer needs, they will provide professional after sales service.

3 , Our company has many experienced and professional designers who can provide customized designs of machines for your products according to your requirements.

4 , Our professional workers are with at least five years of machine production experience, who help to manufacture high quality of machines for your products.

5 , If the client needs customized design of machines for your products, please kindly inform us your material viscosity, power voltage, the speed you require, the size of your vessels, etc. We sincerely welcome your inquiry and visit.

6 , We provide excellent after sales service for each customer whenever the customer has any question with the machine. And even after they have bought the machines for many years, we still provide necessary help for the machine to run normally.

Packaging & Shipping

1 , The machine is packed in wooden case, all the machines should be coated before sealed in the wooden or iron case to make sure they are damp-proof and shock-proof.

2 , We provide detailed installation videos for the machine, and also we provide the training video for the machine operation as well as the Instruction Manual, machine specifications and other relate files to the customers.

3 , We also help the customers to clear the customs and provide them the custom with proforma invoice.

Technical Parameters

Production speed	45m/min
Labeling accuracy	±1mm
Label max width	190mm
Bottle diameter	30-100mm
Label inner diameter	76.2mm
Label outer diameter	Max330mm
Outline size	L2000×W700×1400mm
Air source	4-6KG 30L/MIn
Using power	220V 50HZ 1200W

Bottles
