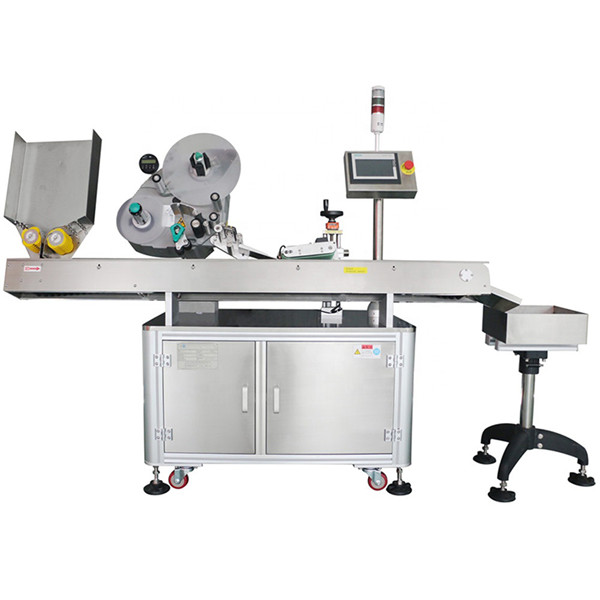

Automatic Small Round Bottle Horizontal Vial Labeling Machine

Detailed Product Description

Type:	Automatic Small Round Bottle Horizontal Vial Labeling Machine For Self Adhesive Sticker	Applicable Diameter Of Bottle Body:	12-25mm
Packaging Material:	Paper, Plastic

Automatic Small Round Bottle Horizontal vial Labeling Machine for self adhesive sticker

Application for :

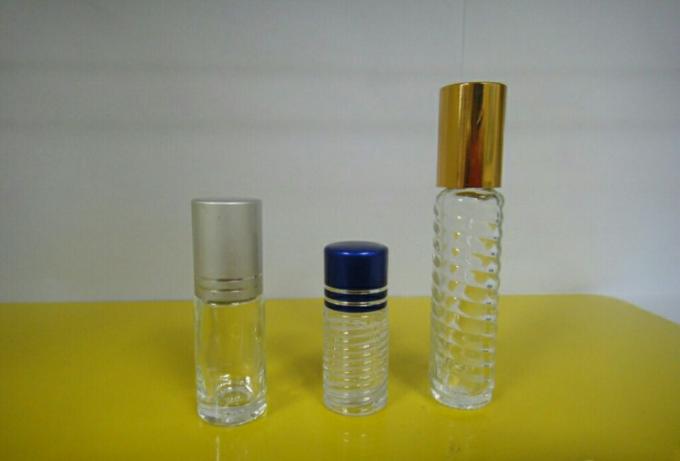

This Automatic Small Round Bottle Horizontal vial Labeling Machine for self adhesive sticker for portable is applicable for all kinds of round cylinder shape object in food, chemical, pharmaceutical, cosmetic etc industry.

Features:

Operation	PLC control system makes labeling equipment easy to operate
Material	Labeling equipment's main body is made of SUS304 stainless steel
Configuration	Our labeling equipments adopt well known Japanese, German, American, Korean or Taiwan brand parts
Flexibility	Client can chose to add printer and code equipment; can chose to connect with converyer or not.

Technical Parameters:

Name : Automatic Small Round Bottle Horizontal vial Labeling Machine for self adhesive sticker
Labeling Speed : 60-350pcs/min
Height of Object : 30-350mm
Thickness of Object : 20-120mm
Height of Label : 5-180mm
Length of Label : 25-300mm
Label Roller Inside Diameter : 76mm
Label Roller Outside Diameter : 420mm
Accuracy of Labeling : ±1mm
Power Supply : 220V 50/60HZ 3.5KW
Gas Consumption of Printer : 5Kg/m2(if add coding machine)
Size of Labeling Machine : 2800(L)×1650(W)×1500(H)mm
Weight of Labeling Machine : 180kg

Packaging & Shipping

Port: Shanghai
Packaging details: wooden case export packing
Delivery detail: Normally 12-15 days after receipt of payment

FAQ

1. What kind of labeling equipment do you have?

Dear Customer, we have automatic and semi-automatic labeling equipment for round containers and flat surface.

Some model for one label and others for two labels or even more. And we can design the equipment according to your specific labeling situation.

Thus, pls fell free to send us your labeling requirements, we'll provide you satisfying labeling solution.

2. Could we add coding equipment to print date and lot No.?

Yes, you can chose to add coding equipment to print the letters and No. you want.

It's hot stamp and can print at most three lines.

3. What information should we supply to check the suitable model?

Pls send us picture of your container and label, as well as the container and label size.

Pls also tell us what kind of label you use, if possible. (For exampe, self-adhesive, could glue, hot glue, etc. whether the label are in roll or pieces.)

Then, we'll let you check the suitable model.

VKPAK provide the following services to make you rest assured and process comfortably and smoothly:

1. Technical design and research

2. Sales & Customer service

3. Export & Shipping

4. Training & Commissioning

5. After sale service
