Detailed Product Description
Product Name: | Excellent Automatic Soft Drinks Bottles Labeling Machine Spare Parts Spoke And PLC System | Output Speed: | 20-200pcs/min |
---|---|---|---|
Is Suitable The Bottle Diameter: | 30-120mm | Bottle Height: | 30-280mm |
Power Supply: | 220V 1.5HP 50/60HZ | PLC: | MITSUBISHI(Japan) |
Servo Labeling Motor: | DELTA(Taiwan) | Height Of Label: | 15-140mm |
Lenghth Of Label: | 25-300mm | Key1: | Food Label Sticker |
Key2: | Adhesive Thermal Label Sticker | Key3: | Sticker Bottle Labeling Machine |

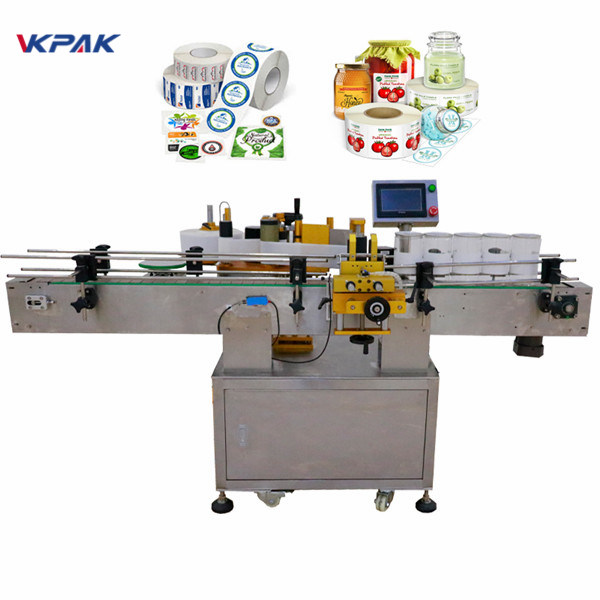

excellent automatic soft drinks bottles labeling machine spare parts spoke and PLC system
Application
Excellent automatic soft drinks bottles labeling machine spare parts spoke and PLC systemis suitable for all kinds of round cylinder shape objects asthe pharmaceutical, food, cosmetic and other industries, the circumference of the round object and high precision are (double standard) and the fixed point and position on the back label.
Features
1. Out of the station can be adjusted 3d space,especially suitable for taper type bottle,and easy to adjust different size of the product
2. Adopts for Japanese OMRON imported object detect magic eye and German DANFOSS imported main converter,simple operation,stability running
3. imported the Japannese PLC system, the touch operating system in English and Chinese, man-machine dialogue, operation simple
4. Adopts for screw and star wheel cooperate,ensure high speed operation,products smooth and stable
Technical Parameters
Name | automatic round bottle jar can labeling machine self adhesive sticker with elliptical spoke |
Labeling Speed | 20-200pcs/min |
Height of Object | 30-280mm |
Diameter of bottle can | 20-120mm |
Height of Label | 15-140mm |
Length of Label | 25-300mm |
Label Roller Inside Diameter | 76mm |
Label Roller Outside Diameter | 380mm |
Accuracy of Labeling | ±0.5mm |
Power Supply | 220V 50/60HZ 0.2KW |
Gas Consumption of Printer | 5Kg/m2(if add coding machine) |
Size of Labeling Machine | 570(L)×250(W)×500(H)mm |
Weight of Labeling Machine | 150kg |
option:
You can choose to add
1. Paging Machine | Normal paging machine is suitable for products, whose thickness less than 5mm, width less than 300mm.If your products are thicker and wider, you should change to paging machine with absorption. |
2. Coding Machine | Our coding machine is driven by electricity and do not need air pressure,it can print at most three lines and every line at most est. 12 letters. As it is added at the end of the labeling machine, it can be adjusted left and right and forward and backward. The ribbon size is standard, you can replace in your country later. The standard letters for the coding machine is numbers from 0 to 9, and some english letters, such as Date, Batch, Exp.etc. |
3. Transparent label monitor or Universal label monitor | If your labels are all non-transparent type, normal label monitor is ok; If your labels are all transparent type, change to transparent label monitor is suitable; |
