Automatic Sticker Labeling Machine , Oval Bottle Label Applicator Machine

Detailed Product Description

Capacity Per Hour:	Round Bottle 2500B/H Around ,oval / Flat Bottle 6000-8000B/H	Labeling Precision:	±1mm
Label Height Max.:	190mm	Paper Roll Inner Diameter:	76.2mm
Label Outer Diameter:	330mm	Packaging Material:	Adhesive Labels
Electric Machine:	Imported Motor	Domain:	Bevarage/Drinks/Daily Chemical

Automatic Sticker Labeling Machine , Oval Bottle Label Applicator Machine For Bottles

Suitable for

1 , This machine suit for front and back labeling of the square bottle,flat bottle ,oval bottle and round bottles (when the label size is not over 1/3 girth of round bottle) speed 5000-8000B/H

2 , It can install round bottle institution on it ,realize wrap around labeling of the round bottle,plus one sensor ,can realize orientation labeling of the round bottles.The speed is around 2500B/H,max label high 168mm (accept custom)

3 , Suit for diameter / width 30-110mm bottles,flat bottle,round bottle,square bottle and some irregular bottles

4 , Labeling head: new type,width 200mm,suit max label high 190mm,eight orienation adjustment

5 , We can provide ribbon date printer and injek printer for options

6 , When you have a lot of kinds of bottles,when labeling,only need to adjust institution

7 , If you also have oval bottle,then only need to adjust oval bottle synchronous chain correcting institution , easy to opearate

8 , We can also design according to your requirement

Technical Parameters

Production speed	45m/min
Labeling accuracy	±1mm
Label max width	190mm
Bottle diameter	30-100mm
Label inner diameter	76.2mm
Label outer diameter	Max330mm
Outline size	L2000×W700×1400mm
Air source	4-6KG 30L/MIn
Using power	220V 50HZ 1200W

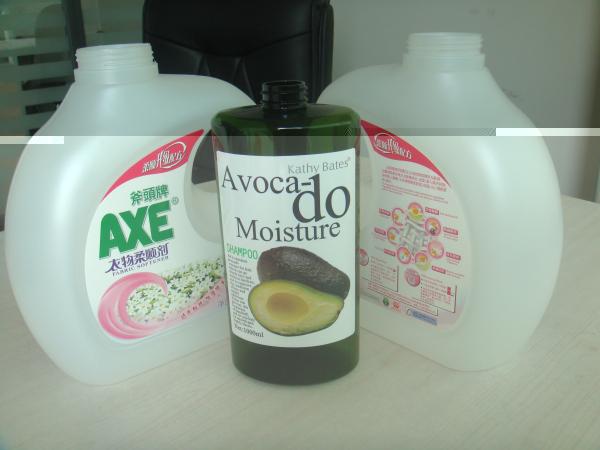

Labeling bottles in cosmetic industry

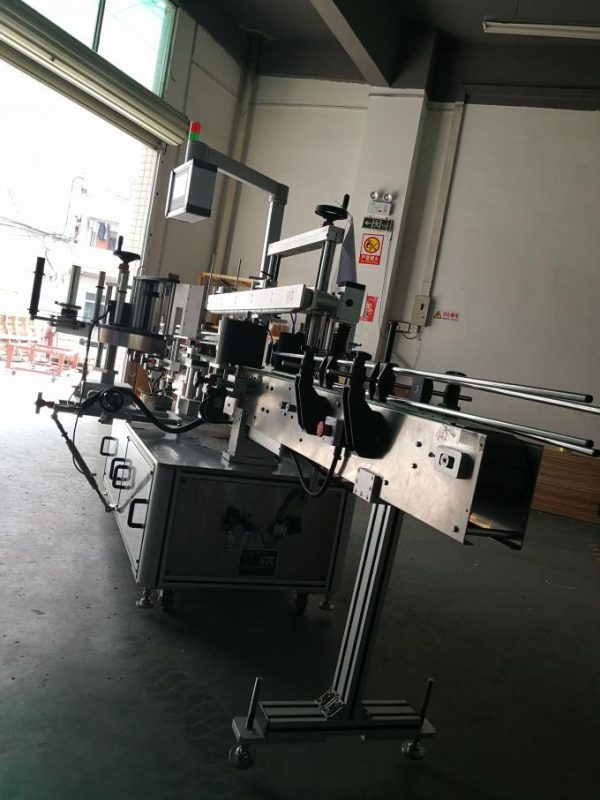

Machine photo

Tag: oval labeling machine, two side labeling machine
