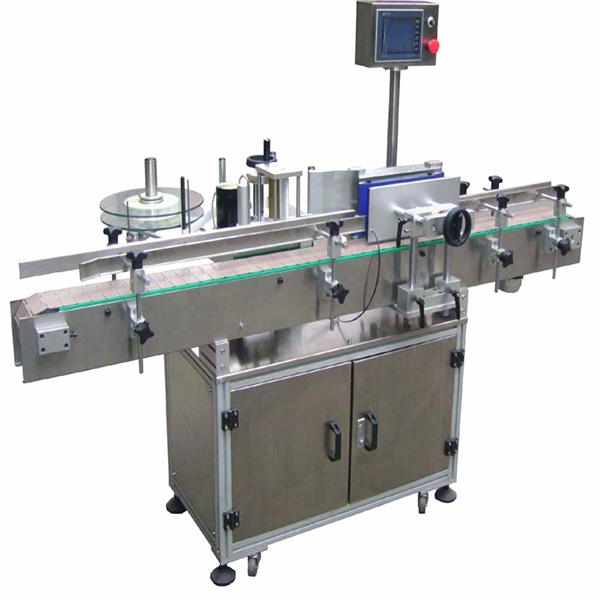

Bottle Sticker Labeling Machine For Bottle Neck Body / Back Label

Detailed Product Description

Label Type:	Sticker Labels	Production Place:	Shanghai
Package:	Woodcase Packaging	Production Speed:	250BS/min
Labeling Accuracy:	±1mm	Label Max Width:	Neck Label125mm Front Back Label195mm
Bottle Diameter:	Thickness≥30mm Height≤500mm	Using Power:	380V/220V 50Hz 6500W

Bottle Sticker Labeling Machine For Bottle Neck Body / Back Label

Technical Parameter

Production speed	5000-11000B/H up to bottle and label size
Labeling accuracy	±1mm
Label max width	Neck label125mm front back label195mm
Bottle diameter	Thickness≥30mm Height≤500mm
Label inner diameter	76.2mm
Label outer diameter	400mm
Outline size	L4080 W1200×1600mm
Weight	650KG
Using power	380V/220V 50Hz 6500W

Applications for

1 , Suits for different industries for beer,wine,white spirit,health wine,seasoning,cosmetics,medicine,cans and others. It can highly improve the work efficiency, with the advantages of humanized design,high flexibility ,easy to operate,steady speed,clean labeling environment ,easy to repair and maintenance, strong work performance ,It’s the necessary labeling machine for the company to upgrade their product and quality.

2 , It can install special institution,realize neck label wrap aound labeling,front and back labels for square,flat bottle at one finish.

Neck ,front ,back labels must be in different labels roll .

3 , The new type lebeling head, the eight dimension adjustment, for special angle products, only need to adjust angle, easy operation and convenient.

4 , Labeling head use double compression rollers structure, ensure that the label paper tension and avoid the label break off phenomenon because of back paper cutting injury, sectional type clutch makes tension more balanced.

5 , The pressure between the driving shaft and roller is adjustable, when is the labels are running, the direction can be adjusted arbitrarily, rather than the ordinary elastic pressing.the host uses servo motor from famous factory, realize the closed loop control to avoid the general stepping motor the blind phenomenon, high precision subdivision, built in absolute value encoder all this in order to provide high accuracy.

6 , The shaping mechanism with special design, ensure accurate positioning is attached to objects, to achieve accurate labeling.
