Detailed Product Description
Speed Of Production: | 45m/min | Precision Of Labeling: | ±1mm |
---|---|---|---|
Max Width Of Label: | 190mm | Label Inner Diameter: | 76.2mm |
Label Outer Diameter: | 330mm | Usage: | Adhesive Labels Bottles |
Motor: | Imported Motor | Advantage: | Widely Used |

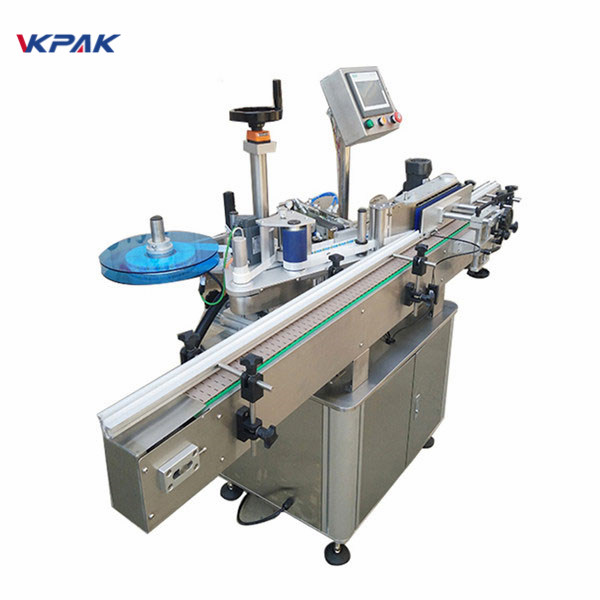

Coffee Round Bottle Sticker Label Machine For Beverage Industry
Product Characteristic
1 ,Main Parts Used Imported Brand,increases tablitily and durable of machine.
2 , Share parts with high precision processing, with advanced control system program
3 , The machine is particularly applicable to circular label for big round bottles,high repeat accuracy,without air bladder,with special design,no need the structure of separate bottle it makes the system easier,higher efficiency.
4 , The range of labels is extended because of hign-power servo motor.Solves the common problem of the insufficient strength.
5 , The machine adopts our company patent technology. The inaccurate labeling is eliminated largely because of the structure of three rollers capable of locating labeling position,automatically.
6 , The label station can be chosen to label one piece or two pieces,and it can label the washing hand liquid bottles in front and back at the same time.
7 , With the advanced interface system,on-line helping system, really human-machine communicating, it is easy to operate so the workers can install the machine within 5 hours.
Application
1 , The air pressure pump of air source is 4-6KG,about 30L/MIn.
2 , The machine is apply to the Daily Chemical and Food Industry.
3 , Labeling max width is 190mm(can be raised according to the require)Bottle diameter:30-100mm.
4 , Label inner diameter is 76.2mm, max outer diameter is 330mm.
Technical Parameters
Production speed | 45m/min |
Labeling accuracy | ±1mm |
Label max width | 190mm |
Bottle diameter | 30-100mm |
Label inner diameter | 76.2mm |
Label outer diameter | Max330mm |
Outline size | L2000×W700×1400mm |
Air source | 4-6KG 30L/MIn |
Using power | 220V 50HZ 1200W |
Advantages
1 , The machine’s Using power,dimension,Weight are customized.
2 , Most component are made by aluminum,cutting the weight and cutting the transportation fees.
3 , The production max speed is about 45m/min.Labeling accuracy is ±1mm.
Product details
Technical Parameters
Production speed | 45m/min |
Labeling accuracy | ±1mm |
Label max width | 190mm |
Bottle diameter | 30-100mm |
Label inner diameter | 76.2mm |
Label outer diameter | Max330mm |
Outline size | L2000×W700×1400mm |
Air source | 4-6KG 30L/MIn |
Using power | 220V 50HZ 1200W |
Tag: round bottle labeler, wrap around label applicator
