Curve Shrink Sleeve Applicator Machine For Variant Bottle Type
Detailed Product Description

Input Power::2.0KWInput Voltage::3Φ380V/220VAC
Speed:100 Bs/minSize Of Host Machine:2000(L) X 900(W) X 2000(H)
Applicable Diameter Of Bottle Body:Φ28mm-Φ125mmApplicable Length Of Label::30mm-250mm

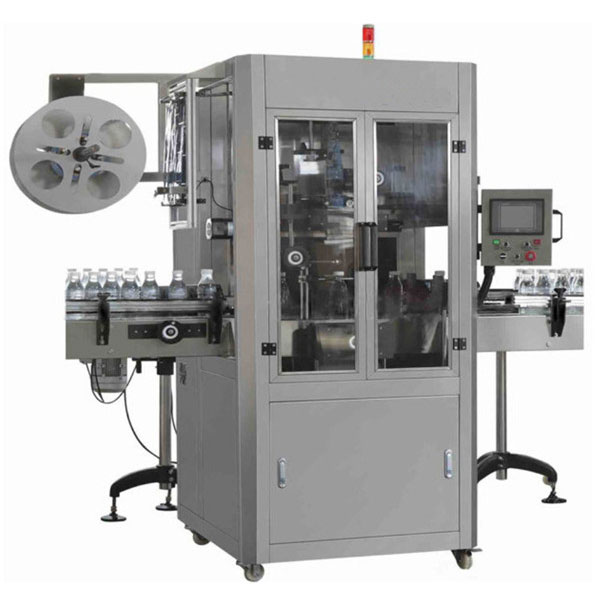

Curve shrink sleeve applicator machine for variat bottle type HTP-200P

Feature:

1. The standard position precision is high, and shrinkage can highlight the perfect shape of bottle.

2. High and stable mechanical structure of the whole machine adopts stainless steel protection box cover and aluminum alloy rigid frame, solid doesn't rust.

3. High quality positioning accuracy: all mechanical transmission design, using force set timescale, and various membrane materials 0.03mm-0.13mm film thickness, membrane material applies 5-10 range inner diameter can be adjusted.

4. Low maintenance cost: the spare parts of the machine is easy to change, low cost burden.

5. Reliable after-sale service: this machine various spare parts warehouse all have spare, can offer, and experienced engineers provides technical support.

6. Exclusive design :reciprocating cutting knives, adopt high technic, rigid body movements smooth, the tool life extend one times.

7. The structure of the machine is simple and easy, can ensure low failure rate, maintenance and simple.

8. Simple type center word column positioning, specifications, the operator is convenient to use easy replacement of manipulating plain, easiness, completely avoid the user's problems.

Input Power:3.0KW
Input Voltage:3Φ380V/220VAC
Speed100 -150bs/min

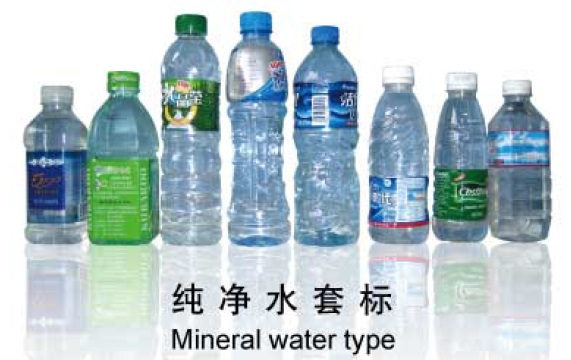

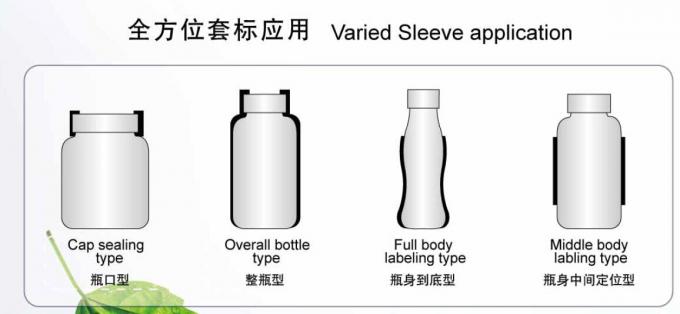

Bottle type:Round, Square, Flat, Curve
Label Length:30mm-150mm
Label thickness0.03mm-0.13mm
MaterialsPVC. PET. OPS
Core Inner Dia:5”-10”(Free adjustment)
Core Outer Dia:500mm-600mm
Weight:Roughly 450kg
Cutter Scope50-95mm (customized)

Curve shrink sleeve applicator machine for variat bottle type HTP-200P

Curve shrink sleeve applicator machine for variat bottle type HTP-200P

Tag: shrink sleeve applicator machine, shrink sleeve label machine
