Customized Self Adhesive Sticker Labeling Machine For Daily Chemical

Detailed Product Description

Prime Mover:	Electric	Production Speed:	45m/min
Labeling Accuracy:	±1mm	Bottle Diameter:	Thickness≥30mm Height≤500mm
Label Inner Diameter:	76.2mm	Label Outer Diameter:	330mm
Dimension:	L3048×W1700×1500mm	After Sales:	Overseas Service

Customized Self Adhesive Sticker Labeling Machine For Daily Chemical

Technical Parameter

Production efficiency	45m/min
Labeling accuracy	±1mm
Label max width	190mm(can be raised according to the require)
Bottle diameter	Thickness≥30mm height≤500mm
Label inner diameter	76.2mm
Label outer diameter	Max330mm
Outline size	L3048×W1700×1500mm
Weight	380KG

Product Characteristic

1 , Double side automatic labeling machine is suitable for square bottles or flat bottles with double mark or single mark.

2 , The machine is designed with large-power and strengthening structure.

3 , The machine can be adjusted successfully in several minutes for any bottle,becausethe shape belt can be inclined,and the labeling head can be adjusted at eight orientations .

4 , The label is only pressed flexibly without causing any distortio,the pressure between the active axle and the press roller can be adjusted ,so the running direction of the label can be adjusted freely.

5 , The labeling head adopts the structure of the double press rollers .it guarantees that the label is pulled tightly but isn't broken because of the underneath paper die-cutting, the separated clutch makes the strain more balanced.

6 , The touch screeneasy for operate the machine bythe workers,because itbased human interface in Chinese and English with the online helping system makes,the press belt is geared into the main transporting line ,so it makes the two transporting lines work in synchronous absolutely .

7 , The machine realizes real closed loop controlling and it avoids the phenomenon of “the blind man walk” when the machine apply the stepper motor.We usingthe famous server motor.

8 , The muti channel encoder detects labeling position precisely at high speed

9 , The label is pressed by a flap after applying on bottle and is pressed by the active and passive sponge rollers.So when the label is stuck it hasn’t any air bladder.It is especially applicable to the crystal bottles labeled with transparent labels.

10 , The optional air driving and roller labeling set can label round bottles precisely.

Application

1 , The machine is apply to the Daily Chemical and Food Industry,

2 , Labeling max width is 190mm(can be raised according to the require), Bottle diameter of Thickness is greater than or equal to 30mm, height is less than or equal to 500mm, Label inner diameter is 76.2mm, max outer diameter is 330mm.

Advantages

1 , Most component are made by aluminum,cutting the weight and cutting the transportation fees.

2 , The production max speed is about 45m/min.Labeling accuracy is ±1mm.The machine’s Using power,dimension,Weight are customized.

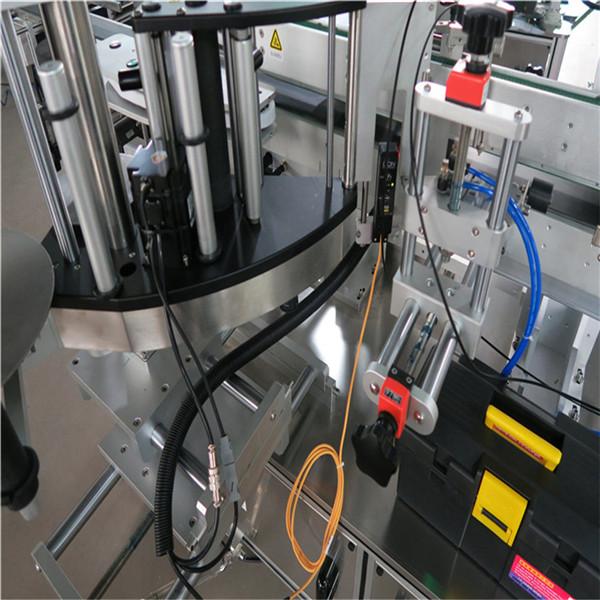

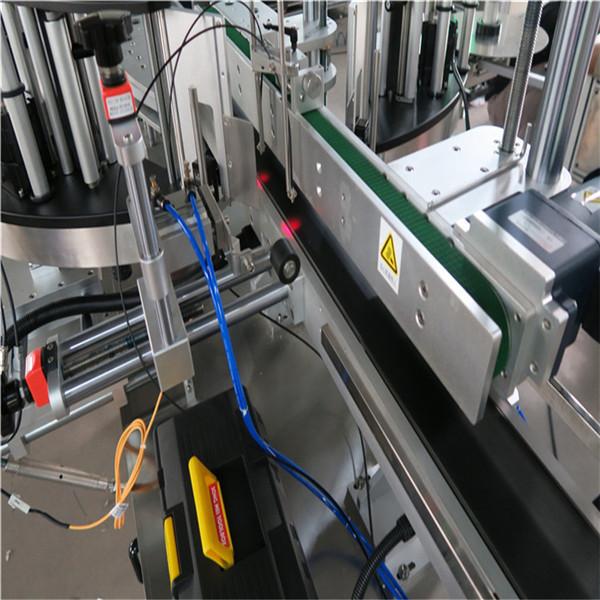

Productdetails
