Detailed Product Description
Name: | Labeler | Height Of Product: | 30-280mm |
---|---|---|---|
Thickness Of Product: | 20-200mm | Height Of Label: | 5-150mm |
Length Of Label: | 25-300mm | Accuracy Of Labeling: | ±1mm |
The Inner Of Label Roller: | 76mm | The Outside Of Labeling Roller: | 350mm |
No Label Alarm Magic Eye: | OMRON(Japan) | Label Outing Detect Magic Eye: | LEUZE(Germany) |

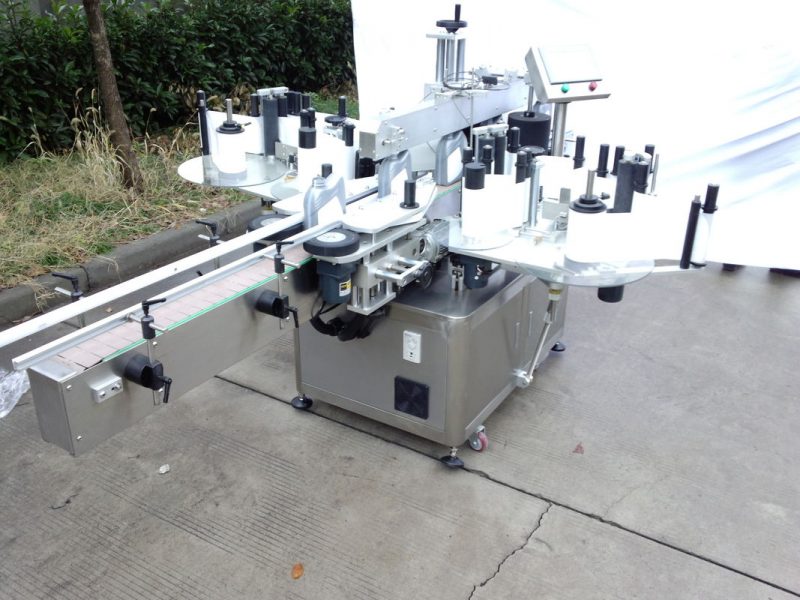

customized micro low price three or double side sticker labelling machine with coding machine
Application:
This servo motor automatic wrap round bottle labeling machine is applicable for all kinds of flat objects such as food, chemical, pharmaceutical, cosmetic, stationery, CD disc, carton, box and various oil kettles etc.
Quick Details:
Automatic Grade: Automatic
Driven Type: Electric
Power Supply: 220V 3.5KW Single-phase 50/60HZ
Height of Object: 30-350mm
Applicable Diameter of Bottle Body: 20-120mm
Height of Label: 5-180mm
Place of Origin: Shanghai,China(Mainland)
Size of Labeling Machine: 2800(L)×1650(W)×1500(H)mm
Weight: 450Kg
Label roller outside diameter: 420mm
After-sales Service:Provided engineers available to service machinery overseas
Labeling Speed: 60-350bottles/min
Customer's service:
1. VKPAK can provideo turn-key project for you, only you have any idea to start beverage factory plant.
2. VKPAK have professional design team, our engineer can draw bottle samples and flow chart of workshop for you .
3. VKPAK give you the best quotation for all kinds of beverage production, only you can tell me which kind of drink you want to product, what is your capacity(how many bottles one hour) what is you bottle material, pet or glass,etc
Configuration:
No. | part | brand | quantity |
1 | PLC | MITSUBISHI(Japan) | 1 |
2 | Main converter | DANFOSS(Denmark) | 1 |
3 | Bottle separating frequency convertor | DELTA(Taiwan) | 1 |
4 | HMI | WEINVIEW(Taiwan) | 1 |
5 | Servo labeling motor | DELTA(Taiwan) | 2 |
6 | Servo labeling motor driver | DELTA(Taiwan) | 2 |
7 | Conveyor motor | H.Y(Taiwan) | 1 |
8 | Conveyor motor gearbox | H.Y(Taiwan) | 1 |
9 | Spoke motor | GPG(Taiwan) | 1 |
10 | Spoke motor gearbox | GPG(Taiwan) | 1 |
11 | Bottle separating motor | GPG(Taiwan) | 2 |
12 | Bottle separating motor gear box | GPG(Taiwan) | 2 |
13 | object detect magic eye | OMRON(Japan) | 1 |
14 | optical fiber | OMRON(Japan) | 1 |
15 | Powder | DELTA(Taiwan) | 1 |
16 | No label alarm magic eye | OMRON(Japan) | 2 |
17 | Label outing detect magic eye | LEUZE(Germany) | 2 |
Option:
1. Coding machine (max. 200pcs/minute)
2. Transparent label monitor

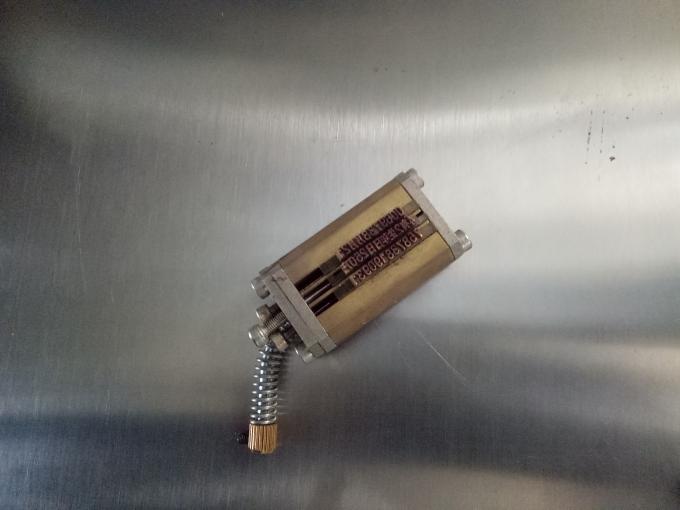

The Features of coding machine:
1) Printing type: ribbon printing, max. three lines available
2) Range of application: printing date, batch number and weight
3) gas needed: 3kg/cm3
4) speed: max. 300pcs/min
Technical Parameters:
■ Coding Speed: 20-120pcs/min
■ Coding Area: 11x35 mm
■ Max Width of Coding Ribbon: 25-300mm
■ Dimension: 410x200x250 mm
■ Power Supply: 220V, 50HZ ,200W
■Net Weight: 10KG
If you need them, you can choose them for printing batch number, date, weight
Tag: bottle sticker labeling machine, automatic label applicator machine
