Detailed Product Description
Capacity Per Hour: | Oval Bottle 5000-8000B/H | Labeling Precision: | ±1mm |
---|---|---|---|
Label Height Max.: | 190mm | Paper Roll Inner Diameter: | 76.2mm |
Label Outer Diameter: | 330mm | Packaging Material: | Adhesive Labels |
Electric Machine: | Imported Motor | Domain: | Bevarage/Drinks/Daily Chemical |

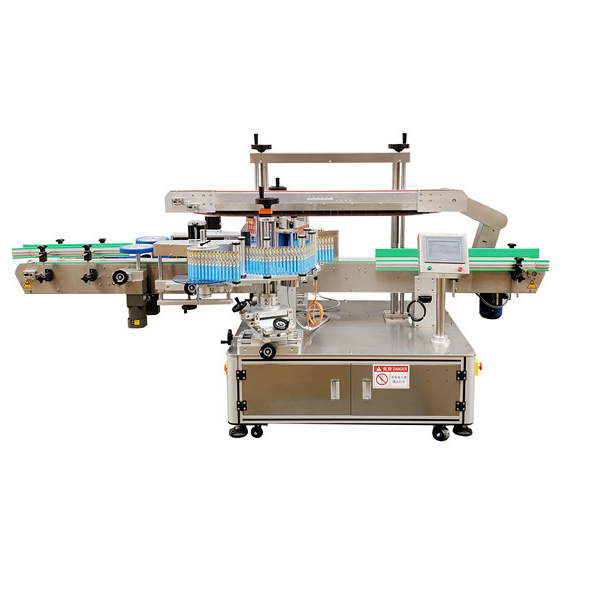

Self Adhesive automatic Double Side Sticker Labelling Machine
Applications for
1 , This double sides sticker labeling machine suit for front and back labeling of the square bottle,flat bottle and oval bottle and round bottles (when the label size is not over 1/3 girth of round bottle) speed 5000-8000B/H
2 , It can install round bottle institution on it ,realize wrap around labeling of the round bottle,plus one sensor ,can realize orientation labeling of the round bottles.The speed is around 2500B/H,max label high 168mm (accept custom)
3 , Suit for diameter / width 30-110mm bottles,flat bottle,round bottle,square bottle ,oval bottle and some irregular bottles. can accept custom according to your labeled samples .
4 , Labeling head: new type,width 200mm,suit max label high 190mm,eight orienation adjustment
5 , We can provide ribbon date printer and injek printer for options
6 , When you have a lot of kinds of bottles,when labeling,only need to adjust institution
7 , If you also have oval bottle,then only need to adjust oval bottle synchronous chain correcting institution , easy to opearate
8 , We can also design according to your requirement
Technical Parameters
Production speed | 45m/min |
Labeling accuracy | ±1mm |
Label max width | 190mm |
Bottle diameter | 30-100mm |
Label inner diameter | 76.2mm |
Label outer diameter | Max330mm |
Outline size | L4048×W1400×1650mm |
Air source | 4-6KG 30L/MIn |
Using power | 220V 50HZ 1200W |
Most Advantage
1. The labeling machine can achieve side labeling of oval bottle ,round bottle, flat bottle, square bottle, special-shaped bottle)
2. Adopting a rigid double sided synchronous oriented chain, automatically guarantee the bottle in center, low requirement on workers ' correct putting position, greatly reducing the difficulties of the workers ' jobs for lining and docking.
3. The labeling system save a lot of labor cost,after adjusting the machine for bottle,no need to recheck , from label on the first bottle and last bottle area are same.this means labeling accuracy is very stable
4. The machine can work separately or work on assembly line.
