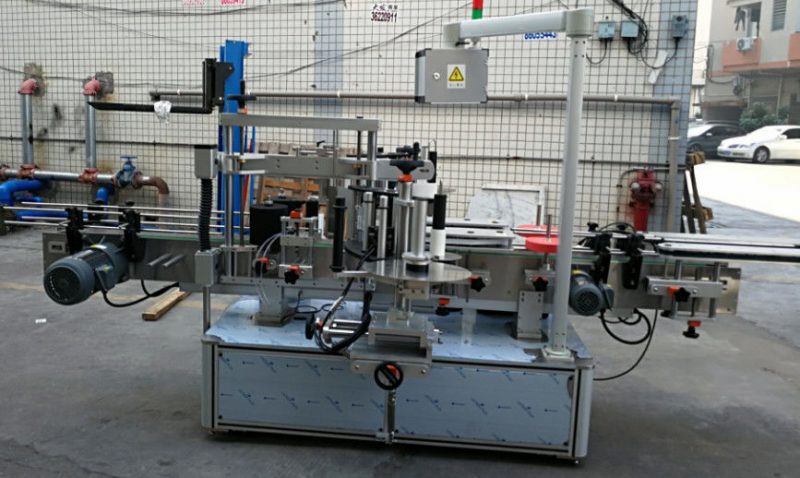

Double Side Sticker Elliptical Oval Bottle Automatic Labeling Machine

Detailed Product Description

Capacity Per Hour:	Oval Bottle 5000-8000B/H	Labeling Precision:	±1mm
Label Height Max.:	190mm	Paper Roll Inner Diameter:	76.2mm
Label Outer Diameter:	330mm	Packaging Material:	Adhesive Labels
Electric Machine:	Imported Motor	Domain:	Bevarage/Drinks/Daily Chemical

Sticker elliptical bottles double sides bottles automatic label machine

Most Advantage

1. The labeling machine can achieve side labeling of oval bottle ,round bottle, flat bottle, square bottle, special-shaped bottle)

2. Adopting a rigid double sided synchronous oriented chain, automatically guarantee the bottle in center, low requirement on workers ' correct putting position, greatly reducing the difficulties of the workers ' jobs for lining and docking.

​3. The labeling system save a lot of labor cost,after adjusting the machine for bottle,no need to recheck ,from label on the first bottle and last bottle area are same.this means labeling accuracy is very stable

4. The machine can work separately or work on assembly line.

Advantages

1 ,This double sides sticker labelingmachine suit for front and back labeling of the square bottle,flat bottle and oval bottle and round bottles (when the label size is not over 1/3 girth of round bottle) speed 5000-8000B/H

2 ,It can install round bottle institution on it ,realize wrap around labeling of the round bottle,plus one sensor ,can realize orientation labeling of the round bottles.The speed is around 2500B/H,max label high 168mm (accept custom)

3 ,Suit for diameter / width 30-110mm bottles,flat bottle,round bottle,square bottle ,oval bottle and some irregular bottles. can accept custom according to your labeled samples .

4 ,Labeling head: new type,width 200mm,suit max label high 190mm,eight orienation adjustment

5 ,We can provide ribbon date printer and injek printer for options

6 ,When you have a lot of kinds of bottles,when labeling,only need to adjust institution

7 ,If you also have oval bottle,then only need to adjust oval bottle synchronous chain correcting institution , easy to opearate

8 , We can also design according to your requirement

Technical Parameters

Production speed	45m/min
Labeling accuracy	±1mm
Label max width	190mm
Bottle diameter	30-100mm
Label inner diameter	76.2mm
Label outer diameter	Max330mm
Outline size	L4048×W1400×1650mm
Air source	4-6KG 30L/MIn
Using power	220V 50HZ 1200W

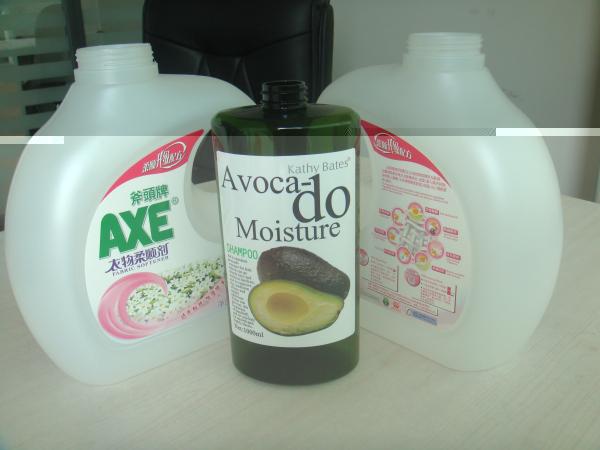

Labeling bottles in cosmetic industry

Tag: oval labeling machine, double side sticker labelling machine
