Factory Price Automatic Water Bottle Labeling Machine

Detailed Product Description

Name:	Factory Price HAY200 Automatic Beer Bottle Labeling Machine	Product Name:	Factory Price HAY200 Automatic Beer Bottle Labeling Machine
Machine Size:	2000x(L)x1100(W)x1300(H)mm	Output Speed:	20-200pcs/min
Hight Label Object:	30-280mm	Is Suitable The Bottle Diameter:	30-120mm
Label Hight:	15-140mm	Label Length:	25-300mm
Power Supply:	220V 1.5HP 50/60HZ

Factory Price Automatic Beer Bottle Labeling Machine

Application

China Automatic BeerBottle Labeling Machineis suitable for all kinds of round cylinder shape objects in food,chemical,pharmaceutical,cosmetic etc industry.

Features

Operation	PLC control system makes labeling machine easy to operate
Material	Labeling machine's main body is made of SUS304 stainless steel
Configuration	Our labeling machines adopt well known Japanese, German, American, Korean or Taiwan brand parts
Flexibility	Client can chose to add printer and code machine; can chose to connect with converyer or not.

Technical Parameters

Name	VKPAK Economy Automatic Beer Bottle Labeling Machine
Labeling Speed	20-50pcs/min
Height of Object	30-200mm
Thickness of Object	30-900mm
Height of Label	15-180mm
Length of Label	25-300mm
Label Roller Inside Diameter	76mm
Label Roller Outside Diameter	300mm
Accuracy of Labeling	±0.5mm
Power Supply	220V 50/60HZ 0.2KW
Gas Consumption of Printer	5Kg/m2(if add coding machine)
Size of Labeling Machine	570(L)×250(W)×500(H)mm
Weight of Labeling Machine	25kg

Packaging & Shipping

Port: Shanghai
Packaging details: wooden case export packing
Delivery detail: Normally 12-15 days after receipt of payment

Our Services

1. Offer you professional labeling sulution according to your specific labeling requirements.

2. Supply you high quality labeling machine after placing order.

3. Try to make the delivery time as short to meet your needs.

4. Provide you lifelong free technial support after you receiving our machine.

FAQ

1. What kind of labeling machine do you have?

Dear Customer, we have automatic and semi-automatic labeling machine for round containers and flat surface.

Some model for one label and others for two labels or even more. And we can design the machine according to your specific labeling situation.

Thus, pls fell free to send us your labeling requirements, we'll provide you satisfying labeling solution.

2. Could we add coding machine to print date and lot No.?

Yes, you can chose to add coding machine to print the letters and No. you want.

It's hot stamp and can print at most three lines.

3. What information should we supply to check the suitable model?

Pls send us picture of your container and label, as well as the container and label size.

Pls also tell us what kind of label you use, if possible. (For exampe, self-adhesive, could glue, hot glue, etc. whether the label are in roll or pieces.)

Then, we'll let you check the suitable model.

VKPAK provide the following services to make you rest assured and process comfortably and smoothly:

1. Technical design and research

2. Sales & Customer service

3. Export & Shipping

4. Training & Commissioning

4. After sale service

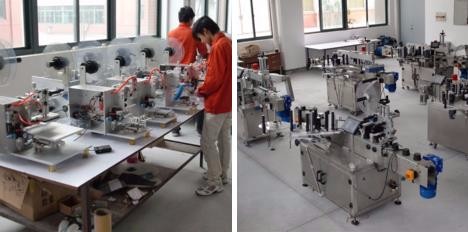

Factory Show
