Flat Bottle Pressure Sensitive Labeling Machine One Side Or Two Sides

Detailed Product Description

Label Max Width:	190mm	Inner Diameter Of Label:	76.2mm
Outer Diameter Of Label:	330mm	Usage:	Adhesive Labels Bottles
Motor:	Imported Motor	Advantage:	Widely Used

Sticker labeler pressure sensitive labeling machine one side or two sides​

Application

1. Highly precise, ultimate labeling solution.

2. Can be applied to one side or two sides of flat or circular faces of products.

3. Labeling can be done accurately from predefined starting position as set by the user even for circular labeling.

4. For flat square or irregular shaped products even 3 or 4 sides enwrapping labeling can be done.
This is indeed a truly versatile & final labeling solution.

Label applicator

1. Precise positioning as adjustments are possible on 8 orientation axes with index indicator.

2. Fast and easy adjustment virtually with no tools.

3. Label goes through two pressing rollers before it is peeled & applied to the product. These rollers press and hold the label flat in desired position, this feature is specially helpful for very thin label.

4. All parts and devices are machined on our CNC and digitally controlled machines with high degree of accuracy in dimensions and profiles leading to flawless assembly of the total machine.

Product Characteristic

1 , The machine adopts PLC process control, photoelectricity bottle checking and label delivery.

2 , The mahcine composes of high production effiency, labeling precise and reliable, operation convenience, and wide adaptive scope etc.

3 , The machine can be chosen to label one piece or two pieces,and it can label the washing hand liquid bottles in front and back at the same time.

4 , Start-up system: depend on 3-5 pole motor driving, electron control speed, full automatic transmission device.

5 , Electrcity source place conbine with high precise density steel star gear, including automatic suited machinery safty device

6 ,Labelrangeis extended because of hign-power servo motor.Solves the common problem of the insufficient strength.

7 ,The machine adopts our company patent technology.The inaccurate labeling is eliminated largely because of the structure of three rollers capable of locating labeling position,automatically.

8 , The advanced kind human interface system,on-line helping system,really human-machine communicating,it is easy to operate so the worker can operate the machine in several hours.

9 , This machine applys to single side, double side of all kinds round bottles in pharmacy, food beverage, daily chemical industry etc

10 , The machine is particularly applicable to circular label for big round bottles,high repeat accuracy,without air bladder,with special design,no need the structure of separate bottle it makes the system easier,higher efficiency.

Technical Parameters

Production speed	45m/min
Labeling accuracy	±1mm
Label max width	190mm
Bottle diameter	30-100mm
Label inner diameter	76.2mm
Label outer diameter	Max330mm
Outline size	L3048×W700×1400mm
Air source	4-6KG 30L/MIn
Using power	220V 50HZ 1200W

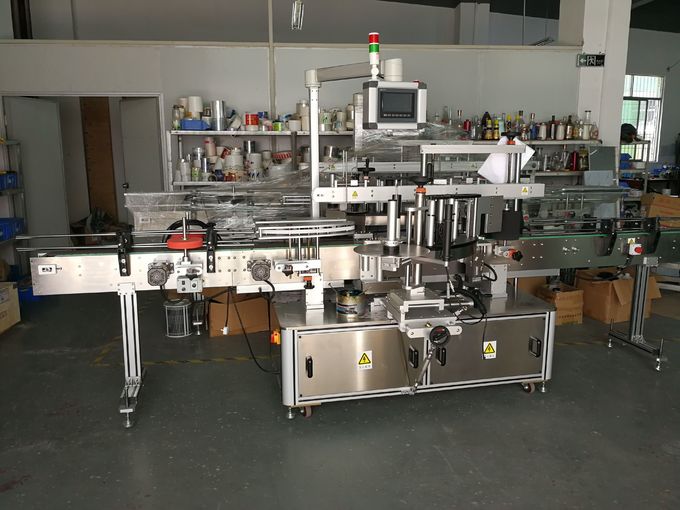

Machine picture
