Detailed Product Description
| Capacity Per Hour: | Oval Bottle 5000-8000B/H ,round Bottle 2500B/h Around | Labeling Precision: | ±1mm Within |
|---|---|---|---|
| Label Height Max.: | 190mm | Paper Roll Inner Diameter: | 76.2mm |
| Label Outer Diameter: | 330mm | Packaging Material: | Self Adhesive Labels |
| PLC Brand: | Siemens | Industury: | Bevarage/Drinks/Daily Chemical/cosmetic |
| Machine Size: | 4048mm X 1400mm X 1650mm |

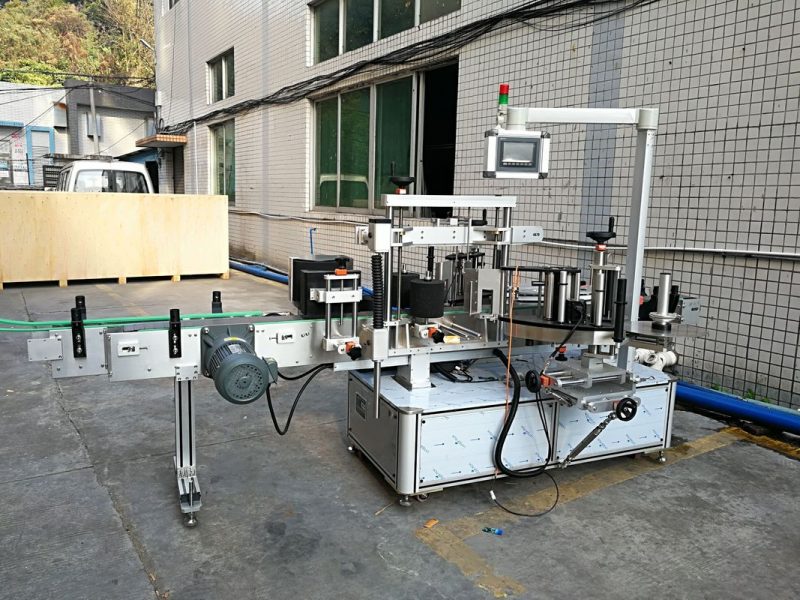

Front and Back Labeling Systems for Ovals and Rectangular Products
Application for
1, Front and Back Labeling machine apply labels to both sides of a bottle at the same time. A typical front and back labeler consists of several components including a spacer wheel, alignment system, top hold down belt (to stabilize the product), two labeling heads, and a powered roller to wipe down the label. Front and Back Labeling Machines of this type work on rectangular and oval shaped bottles, but can also be modified for three and four panel wrap applictions. There is even an option that allows a plug in wrap station to be inserted to add capability for wrap labeling of round bottles, commonly called a Front/Back/Wrap labeling machine.
2, Servo motor driven registered wrap-around mechanism which is in the form of a roller wheel to effectively ensure accurate registration
3, Design features to ensure precise and smooth labeling on oval or rectangular bottles
4, An alignment device composed of a pair of side chains to ensure symmetrical alignment of bottles along the center line
5, A top conveyor belt at synchronized speed with the main conveyor to hold the bottles in place to maintain bottle alignment and stability throughout the labeling process
6, Optional special label sensor for detection of film transparent labels. 50 sets of labeling parameters memory allows easy changeover between different labeling jobs by switching the pre-defined parameters set.
7, Optional special label sensor for detection of film transparent labels. 50 sets of labeling parameters memory allows easy changeover between different labeling jobs by switching the pre-defined parameters set.
8, Intelligent label quantity management, warning messages and optional visual inspection devices
Technical Parameters
| Production speed | 45m/min |
| Labeling accuracy | ±1mm |
| Label max width | 190mm |
| Bottle diameter | 30-100mm |
| Label inner diameter | 76.2mm |
| Label outer diameter | Max330mm |
| Outline size | L4048×W1400×1650mm |
| Air source | 4-6KG 30L/MIn |
| Using power | 220V 50HZ 1200W |
Unique Features
1. No bottle no labeling
2. No need Change Parts for different size bottle
3. Machine can save more than 20 sets parameters for ever ,you can call it out for use to save some debugging time.
4. Conveyor side board thickness 3.0mm,the rigidity of machine is better..
5. Label Roll Empty – Machine Stop System with Alarm
6. Missing Label in Roll – Machine Stop System with Alarm
