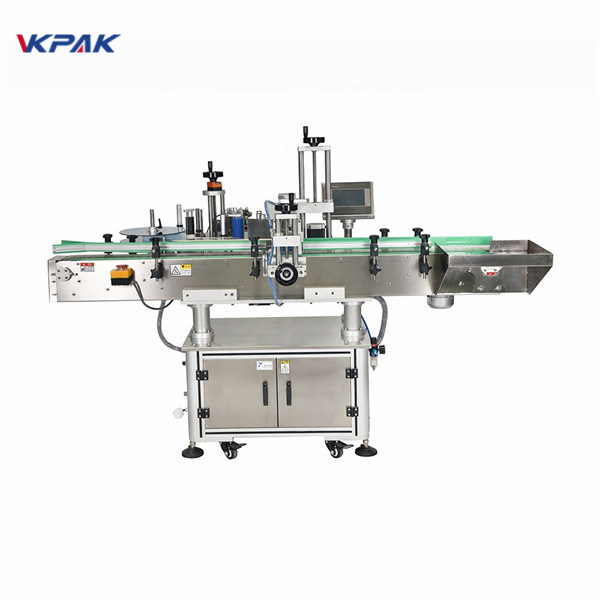

Dragon Fruit Juice Round Bottle Sticker Labeling Machine
Detailed Product Description

Condition:CustomizedPower:1200W
Label Max Width:190mmLabel Inner Diameter:76.2mm
Label Outer Diameter:330mmDelivery Time:15days

Hami Melon / Dragon Fruit Juice Round Bottle Sticker Labeling Machine Beverage Field

Product Characteristic

1 , Change different size bottles,only need to adjust the machine.

2 , Air driving and labeling rollers with high labeling accuracy,The machine adopts the special structure.

3 , The machine is particularly applicable to circular label for big round bottles,high repeat accuracy,without air bladder,with special design, no need the structure of separate bottle it makes the system easier,higher efficiency.

4 , The range of labels is extended because of high-power servo motor.Solves the common problem of the insufficient strength.

5 , The machine adopts our company patent technology.The inaccurate labeling is eliminated largely because of the structure of three rollers capable of locating labeling position,automatically.

6 , The machinecan label the washing hand liquid bottles in front and back at the same time.Also itcan be chosen to label one piece or two pieces.

7 , The advanced kind human interface system, on-line helping system,really human-machine communicating, it is easy to operate so the worker can operate the machine in several hours.

Technical Parameters

Production speed45m/min
Labeling accuracy±1mm
Label max width190mm
Bottle diameter30-100mm
Label inner diameter76.2mm
Label outer diameterMax330mm
Outline sizeL2000×W700×1400mm
Air source4-6KG 30L/MIn
Using power220V 50HZ 1200W

Application

1 , The machine is apply to the Daily Chemical and Food Industry.

2 ,Labeling max width is 190mm.

3 , Bottle diameter:30-100mm, Label inner diameter is 76.2mm,max outer diameter is 330mm.

4 , The air pressure pump of air source is 4-6KG,about 30L/MIn.

Special note

1 , Bottle surface must be cleaning and without water drop before labeling

2 , Use stainless steel board ,if it need special connect the production line requirement,the price need discussion.

3 , During the machine in production,the buyer need bottles and labels roll to manufacture for debugging

4 , The bottle cant be deformation,effect the labeling quality,the gaps between labels must be same,can't have a big difference

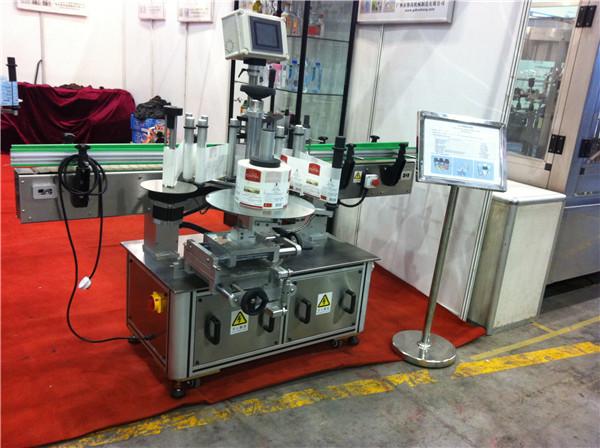

Pic of shippment

Hami Melon / Dragon Fruit Juice Round Bottle Sticker Labeling Machine Beverage Field

Tag: round bottle labeler, pet bottle labeling machine
