Detailed Product Description
Product Name: | Hand Bag Paper Flat Surface Label Applicator Servo Motor By Telta Well-known Brand | Machine Size: | 1600(L)×550(W)×1600(H)mm |
---|---|---|---|
Thickness Of Object: | 20-120mm | Label Hight: | 15-110mm |
Power Supply: | 220V 50/60HZ 0.75KW | Width Of Object: | 20-200mm |
Length Of Label: | 25-300mm | Height Of Label: | 15-110mm |
Type: | Labeling Machine |
Application
Hand bag paper flat surface label applicator servo motor by Telta well-known brand is suitablefor all kinds of flat objects such as food, chemical, pharmaceutical, cosmetic, stationery, CD disc, carton, box and various oil kettles etc. It’s for flat side labeling
Features
Operation | PLC control system makes labeling machine easy to operate |
Material | Labeling machine's main body is made of SUS304 stainless steel |
Configuration | Our labeling machines adopt well known Japanese, German, American, Korean or Taiwan brand parts |
Flexibility | Client can chose to add printer and code machine; can chose to connect with converyer or not. |
Technical Parameters
Name | Full-Automatic & Competitive economy flat surface label applicator servo motor by SUS304 stainless steel |
Labeling Speed | 20-200pcs/min |
Height of Object | 30-200mm |
Thickness of Object | 20-120mm |
Height of Label | 15-110mm |
Length of Label | 25-300mm |
Label Roller Inside Diameter | 76mm |
Label Roller Outside Diameter | 300mm |
Accuracy of Labeling | ±1mm |
Power Supply | 220V 50/60HZ 0.75KW |
Gas Consumption of Printer | 5Kg/m2(if add coding machine) |
Size of Labeling Machine | 1600(L)×550(W)×1600(H)mm |
Weight of Labeling Machine | 150kg |
Packaging & Shipping
- Port: Shanghai

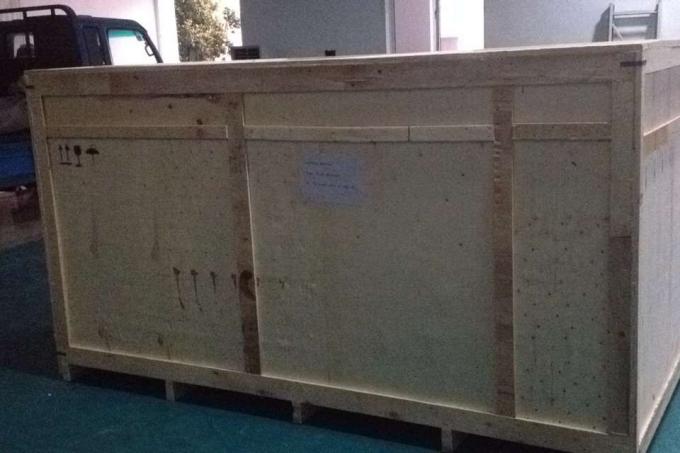

- Packaging details: wooden case export packing
- Delivery detail: Normally 12-15 days after receipt of payment
Other product
model | title | labeling speed | the size of object | application |
HAS3500 | automatic double side labeling machine | 20-200pcs/min | L:30-200mm W:20-200mm | pouch bags flat boxes square or round bottles |
HBP50 | manual flat label sticker machine | 20-50pcs/min | L:30-180mm W:20-180mm | pouch bags flat boxes envelope |
HAY200 | automatic round bottle labeling machine | 20-200bottles/min | H:30-280mm D:30-120mm | round bottle round jar round tube |
HAW200 | 10ml small bottle labeling machine | 60-200bottles/min | H:25-95mm D:12-25mm | syrup bottle penicillin bottl |
Tag: labeling sticker machine, box labeling machine
