Detailed Product Description
Production Speed: | 45m/min | Labeling Accuracy: | ±1mm |
---|---|---|---|
Label Max Width: | 190mm | Label Inner Diameter: | 76.2mm |
Label Outer Diameter: | 330mm | Usage: | Adhesive Labels Bottles |

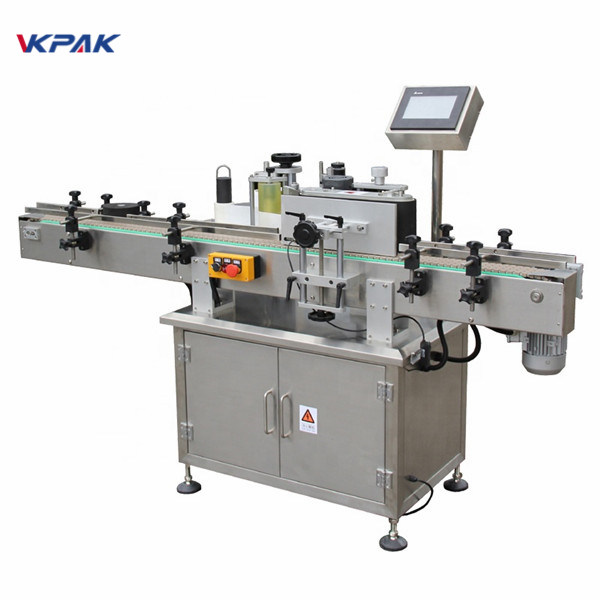

High Precision Dual Label wrap-around Labeling System for adhesvie label
Application
1 , the labeling machine is designed for putting two labels at a required spacing on to a round bottle with orientation requirement. It is widely used in the personal care product, food & beverage, health product and pharmaceutical product industries.
2 , Labeling max width is 190mm(can be raised according to the require)
3 , Bottle diameter:30-100mm, Label inner diameter is 76.2mm,max outer diameter is 330mm.
4 , The air pressure pump of air source is 4-6KG,about 30L/MIn.
5, It is specially designed to also fulfill the demanding requirement that when putting two labels on one bottle, the labels have to be symmetrically aligned on the bottle irrespective of the bottle diameter variation.
Technical Parameters
Production speed | 45m/min |
Labeling accuracy | ±1mm |
Label max width | 190mm |
Bottle diameter | 30-100mm |
Label inner diameter | 76.2mm |
Label outer diameter | Max330mm |
Outline size | L2000×W700×1400mm |
Air source | 4-6KG 30L/MIn |
Using power | 220V 50HZ 1200W |
Product Characteristic
1, Auto circumferential compensation - use of a vision system to detect the diameter variation of a bottle and make compensation to maintain relative consistence of the spacing between the labels on the bottle circumference.
2, Stable capacity at 60 bpm (dual label with bottle orientation)
3, 3-rollers holding of bottle for rotation and labeling to ensure alignment precision. Position accuracy up to ±0.8mm.
4, Various optional online coding devices including hot-stamping, inkjet, laser, and thermal transfer etc., for synchronized date/batch number coding.
5, Status information of peripheral devices can be integrated into the control panel of the system for each control.
6, Various inspection devices available for detection of missing label, wrong label, double label, bad alignment, missing code, and bad coding etc., to ensure high quality output from the system.
7, User-friendly interface with easy-to-use touch panel, comprehensive help menus, and fault indication etc.

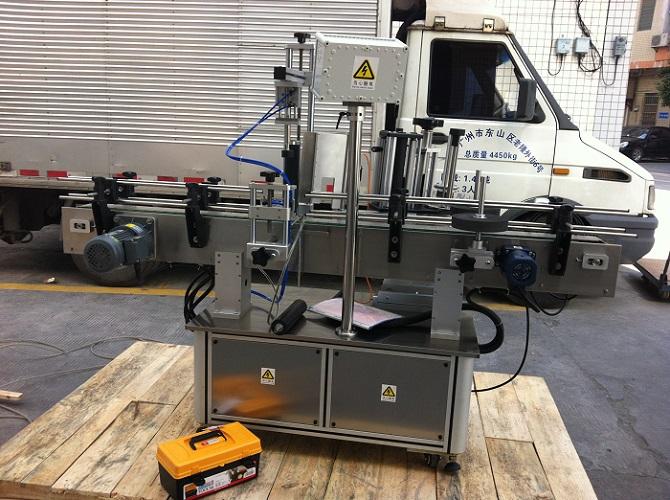

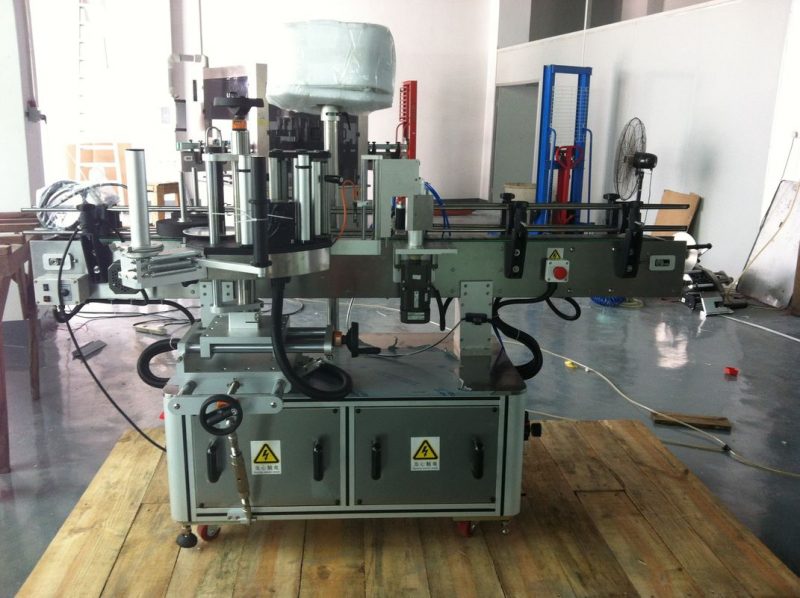

Machine photo
