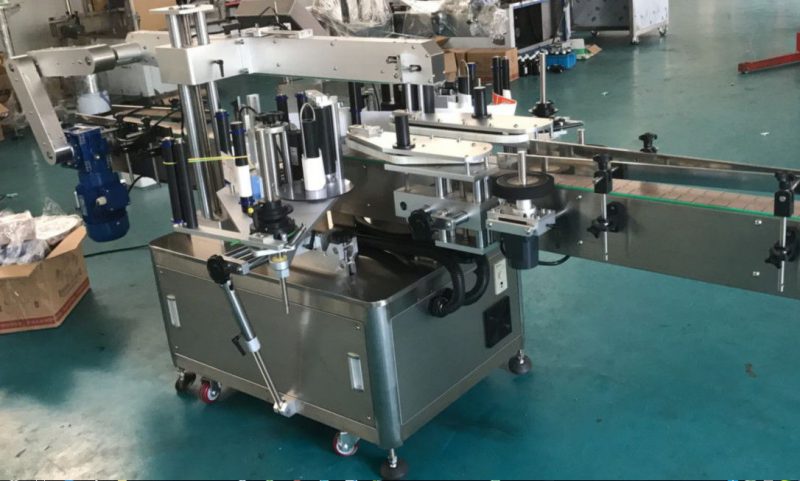

High Speed Double Side Sticker Labelling Machine for Square / Round / Flat Bottle

Detailed Product Description

Type:	Labeling Machine	Height Of Product:	30-280mm
Thickness Of Product:	20-200mm	Height Of Label:	5-150mm
Length Of Label:	25-300mm	Accuracy Of Labeling:	±1mm
The Inner Of Label Roller:	76mm	The Outside Of Labeling Roller:	350mm
The Thickness Of Board:	2-3mm	The Conveyor:	H.Y( Taiwan)

HG Square bottle / round bottle/ flat bottle Automatic double sides self adhesive bottle labeling machine

Quick Details:

Automatic Grade: Automatic

Driven Type: Electric

Power Supply: 220V 3.5KW Single-phase 50/60HZ

Height of Object: 30-350mm

Applicable Diameter of Bottle Body: 20-120mm

Height of Label: 5-180mm

Place of Origin: Shanghai,China(Mainland)

Brand Name: VKPAK

Size of Labeling Machine: 2800(L)×1650(W)×1500(H)mm

Weight: 450Kg

Label roller outside diameter: 420mm

After-sales Service: Provided engineers available to service machinery overseas

Labeling Speed: 60-350bottles/min

Application:

The labeling machine is suitable for the flat bottle, round bottle, square bottles of the single side and double sides labeling, such as oval shampoo bottle, Lubricating oil flat bottles, Hand sanitizer round bottles and so on.

Double side labeling which improve theproduction efficiency, Widely used in cosmetic, cosmetic, petrochemical, pharmaceutical and other industries

Most suitable for small standard of round bottle labeling in chemical

- Pharmaceutical food and beverage industries. The print unit can be added to the product according to the users need

Linear type paste labeling machine is widely used in pharmacy, daily use chemicals and foodstuff etc industry.

It can work independently or connect with automatic production line. Suitable for plastic bottle, glass bottle and metal column shape container etc.

Customer's service:

1. VKPAK can provideo turn-key project for you, only you have any idea to start beverage factory plant.

2. VKPAK have professional design team, our engineer can draw bottle samples and flow chart of workshop for you .

3. VKPAK give you the best quotation for all kinds of beverage production, only you can tell me which kind of drink you want to product, what is your capacity(how many bottles one hour) what is you bottle material, pet or glass,etc

After service:

1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.

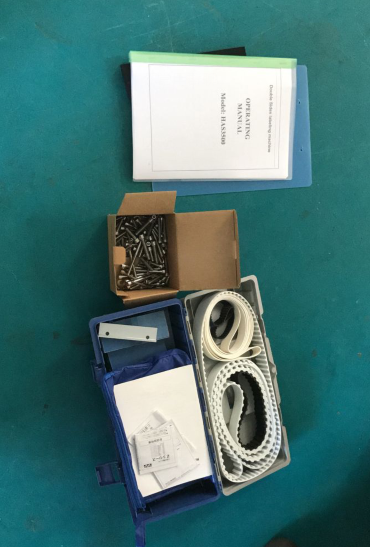

2. We supply below necessary documents with the machine:
a. Machine layout
b. Electricity diagram
c. Machine certificate
d. General manual book/maintenance book
3. After one year guarantee, the seller provides payable spare parts and technician’s

Other labeling machines:

LABELING MACHINE SIZES	LABELING SPEED	CONTAINER	WEIGHT
2800(L)×1650(W)×1500(H)mm	60-200PCS/MIN	double sides round or square cans bottles	250kg
1600(L)×550(W)×1600(H)mm	20-200PCS/MIN	flat surface boxes paper cans	150kg
440(L)×250(W)×600(H)mm	20-50pcs/min	semi-auto flat boxes cans	25kg
2000(L)×1100(W)×1300(H)mm	20-200pcs/min	round bottles cans	150kg
2000(L)×1100(W)×1250(H)mm	20-40pcs/min	fixed position round bottle	150kg
570(L)×250(W)×500(H)mm	20-50pcs/min	semi-auto round bottle cans	25kg
2500(L)×1250(W)×1750(H)mm	60-500pcs/min	horizontal small round bottle	150kg

Important alert

• Please note the specification before using, especially the proper circumstance for using.
• Operators of this machine must be trained specially
• Installation and examination must be carried out by professional.
• Before installation, you are expected to check if all the parts are ready without missing, as well as files.
• The system must be reliably grounded.
• All the safe indications must be obeyed strictly.
• Do please check the connecting parts are all connected correctly before you turn on the power.
• Do not put your hands or figures into the machine, in order to not get your figures hurt by the machine.
• Do not uninstall the machine before the machine stop working, do please turn off the power before you uninstall the controller box.
• Do no place anything inflammable on the machine.
