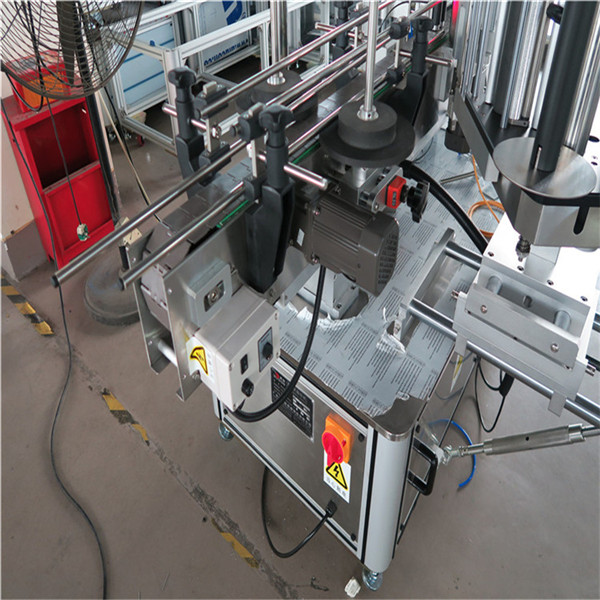

High Speed Labeling Machine For Beverage / Food / Chemical

Detailed Product Description

Power:	1500W	Production Speed:	80-120pcs/min
Accuracy:	±1mm	Label Max Width:	90mm
Weight:	380KG	Applications:	Adhesive Sticker Labeling
Voltage System:	380V / 220V	Machine Size:	2000mm X 1000mm X 1400mm

High Speed Labeling Machine For Beverage / Food / Chemical

Technical Parameter

Production speed	45m/min (80-120B/Min
Labeling accuracy	±1mm
Label max width	90mm
Bottle diameter	30-80mm
Label inner diameter	76.2mm
Label outer diameter	Max330mm
Outline size	L2000×W1000×1400mm
Weight	380KG
Using power	380/220V 50HZ 3000W

Product Characteristic

1 , The machine is designed with large-power and strengthening structure.

2 , The high speed round bottle automatic labeling machine is suitable for one label of round bottle

3 , The labeling system can be inclined design ,can be adjusted at eight orientations ,so the machine can be adjusted successfully in several minutes for any bottle.

4 , The touch screen with Chinese and English interface, with the online helping system makes it easy for operate the machine for the workers .

5 , The machine apply the famous server motor, so it realizes real closed loop controlling and it avoids the phenomenon of “the blind man walk” when the machine apply the stepper motor.

Application

1 , The machine is apply to the Daily Chemical and Food Industry.

2 , Labeling max width is 190mm(can be raised according to the require),

3 , Bottle diameter is 30-80mm, label long is less than 2/3 girth of round bottle

4 , Labels roll Max outer diameter is 330mm.Label inner diameter is 76.2mm.

Advantages

1 , Most component are made by aluminum,cutting the weight and cutting the transportation fees.

2 , The production max speed is about 45m/min.Labeling accuracy is ±1mm.

3 , The machine’s Using power,dimension,Weight are customized.
