Detailed Product Description
| Function: | Sticker Labeling | Accuracy Labeling: | ±1mm |
|---|---|---|---|
| Driven Type: | Electric | Bottle Diameter/width: | 30-110mm |
| Manufacture Speed: | 200BS/Min | Label Max Width: | 190mm |
| Packaging: | Woodcase With PE Firm |

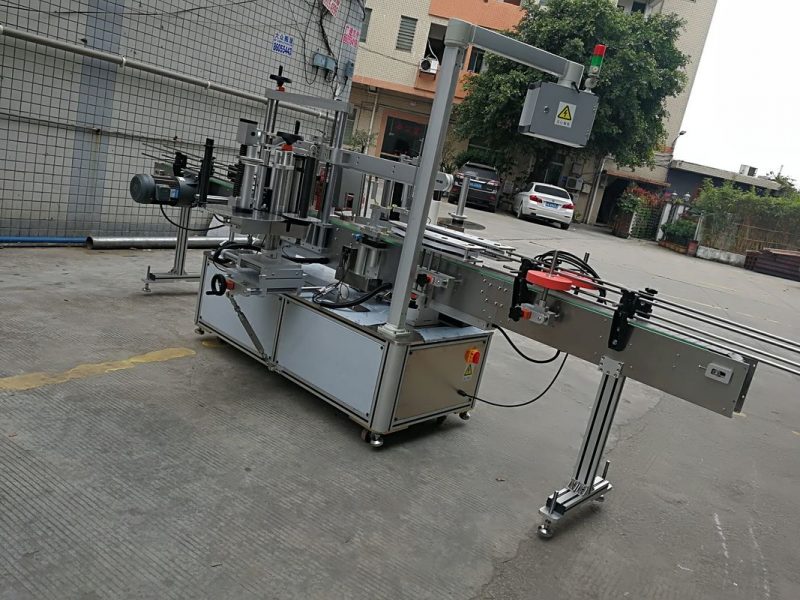

Automatic one label with three side self-adhesive labeling machine
Features
1 , Suitable for labeling round bottle wrap around labeling and square bottle with multi-sides labeling.
2 , Composed by main body, sending paper, receiving paper, bottle orientation etc parts.
3 , Easy to changing the different bottles,jar,can,container.
4 , Main machineparts are made of 304 stainless steel with surface finishing and special treatment, which we can guarantee you very good quality.
5 , The labeling machine is very easy to operate.
Description
1 ,For label: self-adhesive labels, self-adhesive film, electronic supervision code, bar code, etc.
2 ,Applicable products: Requires the side plane, side sweeping surface, the circumferential surface attached label.
3 ,Industry: Widely used in cosmetics, daily chemical, electronics, pharmaceutical, metal, plastics and other industries.
4 ,Application examples: Head & Shoulders shampoo flat bottle labeling, Shell Lubricants flat bottle labeling, labeling and fresh wine.
5 ,.Applicable to the pharmaceutical, food, cosmetic and other light industrial products such as oval, square, flat bottles on the single and double sides labeling.
6 ,The man-machine interface system is advanced and compatible, easy operation, complete functions, has a wealth of online help function
7 , The bottle dividing device shaped general, any diameter of the bottle without replacement parts, rapid positioning adjustment; bilateral chain correction device ensure the material on the neutral
8 , Special elastic pressing equipment ensure seeding materials stability
9 , Automatic optical inspection, have nothing items come without labeling, and without label automatic correction or alarm and automatic detection function, to prevent leakage and waste
10 , Labeling speed, conveyor speed, sub-bottle speed stepless speed, adjust as needed
11 , The machine has the advantages of simple structure, compact structure, convenient operation and maintenance
Technical Parameters
| Production speed | 200BS/min |
| Labeling accuracy | ±1mm |
| Label max width | 190mm |
| Bottle diameter/width | 30-110mm |
| Label inner diameter | 76.2mm |
| Label outer diameter | Max330mm |
| Outline size | L23048×W1200×1500mm |
| Weight | 480KG |
| Using power | 380/220V 50HZ 2300W |
Application
1 , The labeling machine is for Daily Chemical and Food Industry,Labeling max width is 190mm.
2 ,Label inner diameter is 76.2mm,max outer diameter is 330mm.
3 , Bottle diameter thickness is Less than or equal to 30mm height is Less than or equal to 500mm.
