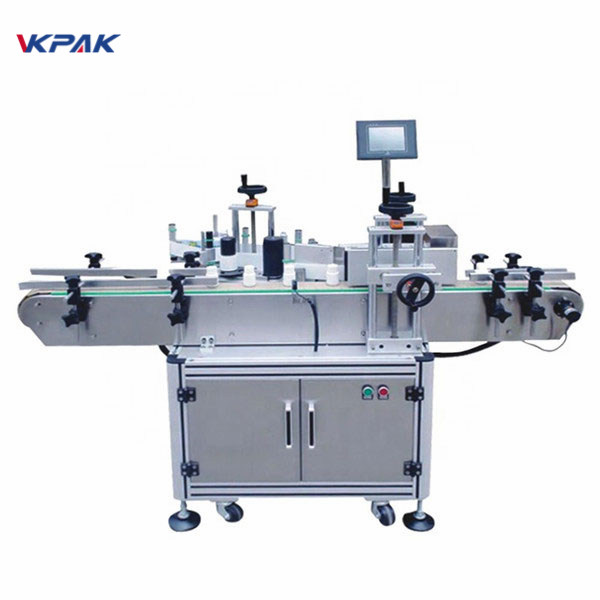

Honey Bottle Single Side Adhesive Labeling Machine

Detailed Product Description

Warranty:	One Year	Transport Pack:	Ply Wood Case
Machine Type:	Labeling Machine	Packaging:	Bottles,container,jar,
Accuracy:	±1mm	Mc Weight:	400KG

Honey Bottle Single Side Adhesive Labeling Machine 400KG Mc Weight

Comparison with others

1 ,The labeling machine use ultra-small inertia servo motor, but most of the labeling machine still use the stepper moto

2 ,The machine with PLC control, rather than general SCM

3 ,The HMI of the machine is a real sense of the digital control, rather than simply display

Transport sector

1 , Imported AC motor, Frequency converter speed regulation

2 , Ultra-high-power AC motor, with a large capacity inverter, the speed of sending bottles more stable, which will help improve the labeling accuracy

3 , In the labeling process of the machine, position of the optical switch for measured object can be adjustable to achieve zero-latency, so the machine can achieve zero pitch labeling, and improve greatly the production speed.

4 , In the past, most of labeling machine ,measured Optoelectronic switch was Fixed, using delayed control, that is, when measured Optoelectronic switch give the signal, the system delays the label, but if in the process, the system voltage changes, or changes in the load conveyor, then the position of label Will have a significant deviations

Labeling institution

1 , Labeling machine head:Hight orienations adjustment, the angle can be adjusted freely, easy to paste a variety of difficult and transparent label.

2 , High elastic sponge scraper and non-powered round extrusion, to ensure that no air bubbles,mechanical structure of machine uses an enhanced rigid design , Simple, generous and stable.

Application

1 , The machine applys to one side labeling of all kinds of quadrate & flat bottles in pharmacy, food beverage, daily chemical industry etc.

2 , Can quickly switch to a different size bottle , simple to cooperate,orderliness beautiful, clean, easy to wash

3 , Applicable to all industries double sides labeling products,and round bottle labeling such as daily chemicals, petroleum, machine oil, cleaning supplies, food and beverage, pharmaceutical and so on.

4 , Special Note: 1, such as double sides labeling of some irregular oval round bottle ,there may add an additional fixed mold labeling, the bottle is too thin, as the case may be labeling not pretty, high unqualified . The price need discussion

Advantages

1 , Designed for the application of front and/or back panel labels with the capability to label containers that are round, square, oval or rectangular..

2 , Increasing round bottle labeling system ,realize wrap arround bottle labeling ,plus one sensor ,can realize orientation labeling of the round bottles.The speed is around 2500B/H,max label high 168mm (accept custom).

3 ,Using 82.6mm chain board width ,Suit for diameter / width 30-110mm bottles,flat bottle,round bottle,square bottle and some irregular bottles.

4 ,Labeling head: eight orienation adjustment.esay to make label board paralled with bottle labeled surface

5 , The labeling Machine can work together with ribbon date printer and injek printer.

6 ,When you have a lot of kinds of bottles,when labeling,only need to adjust machine.

7 ,Only need to adjust oval bottle synchronous chain correcting device,for oval bottle.

Technical Parameters

Production speed	45m/min
Labeling accuracy	±1mm
Label max width	190mm
Bottle diameter	30-100mm
Label inner diameter	76.2mm
Label outer diameter	Max330mm
Outline size	L2000×W700×1400mm
Air source	4-6KG 30L/MIn
Using power	220V 50HZ 1200W
