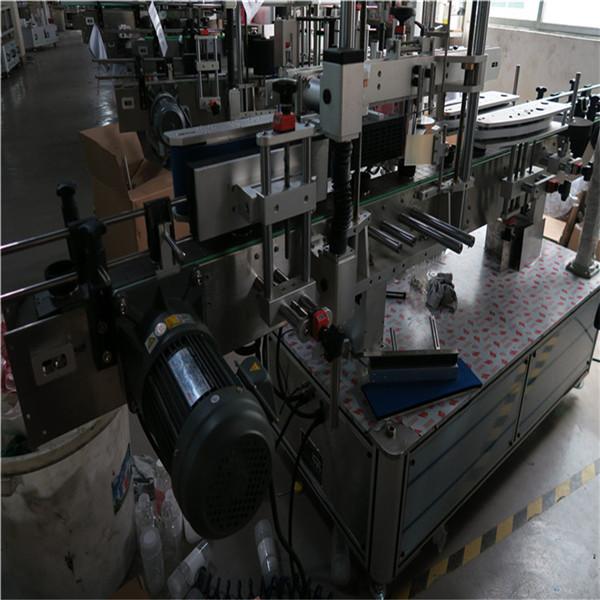

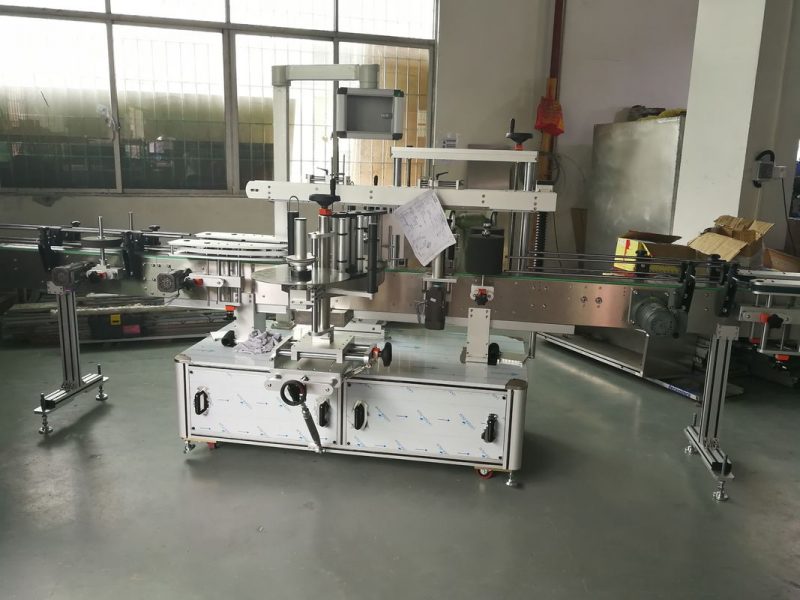

Juice / Wine Bottle Automatic Sticker Labeling Machine, Automatic Labeler Machine

Detailed Product Description

Capacity:	Round Bottle 2500B/H Around , Flat Bottle 6000-8000B/H	Precision Of Labeling:	±1mm
Label Height Max.:	190mm	Packaging Label:	Adhesive Labels
Applications:	Bevarage/Drinks/Daily Chemical	Options:	Single Side/Double Sides

Juice / Wine Bottle Automatic Sticker Labeling Machine, Automatic Labeler Machine

Features

1 , Heavy-duty construction utilizes oversized drive components combined with an aluminum and stainless steel base frame for years of dependable service.

2 , Various product infeed systems are available that provide precise product spacing and orientation. It can be used stand alone or integrated in-line and matching filling equipment speeds.

3 , Advanced high torque micro-stepping driven applicators include ratio-offset and speed-following capability for accurate and reliable application of a wide variety of label materials.

4 , Designed for the application of front and/or back panel labels with the capability to label containers that are round, square, oval or rectangular.

5 , The sensor detect the product,transmit the signal to labeling control system;

6 , After the signal has been processed by the PLC,a label is send out at an appropriate time and attach on a desired position of the container;

7 , The container go through the press plate unit,the press wheel lead the rotation of container,the label is pressed to fit smoothly, the labeling operation is finished.

8 , Simple structure in linear type ,easy in installation and maintation.

9 , Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

10 , Running in a high automatization and intellectualization,no pollution.

11 , Beautiful appearance, beautifully designed, small size, saving plant space, the use of high efficiency machines.

Application

1 , The machine applys to sigle side, double and facade labeling of all kinds of quadrate & flat bottles in pharmacy, food beverage, daily chemical industry etc.

2 , The machine adopts PLC process control, photo-electricity bottle checking and label delivery.

3 , The machine are composes of high production effiency, labeling precise and reliable, operation convenience, and wide adaptive scope etc.

4 , Start-up system: depend on 3-5 pole motor driving, electronic control speed, full automatic transmission device, electrcity source place conbine with high precise density steel star gear, including automatic suited machinery safty device.

Advantages

1. This machine suit for double sided labeling of the square bottle,flat bottle and round bottles

2. Installed round bottle institution on it ,realize round bottle labeling ,plus one sensor ,can realize orientation labeling of the round bottles.The speed is around 2500B/H,max label high 168mm (accept custom)

3. Using 82.6mm chain board width ,Suit for diameter / width 30-110mm bottles,flat bottle,round bottle,square bottle and some irregular bottles

4. Labeling head: new design,more stable,width 200mm,suit max label high 190mm,eight orienation adjustment

5. Machine can work with ribbon date printer and injek printer

6. When you have a lot of kinds of bottles,when labeling,only need to adjust machine

7. For oval bottle, only need to adjust oval bottle synchronous chain correcting device

Technical Parameters

Production speed	45m/min
Labeling accuracy	±1mm
Label max width	190mm
Bottle diameter	30-100mm
Label inner diameter	76.2mm
Label outer diameter	Max330mm
Outline size	L2000×W700×1400mm
Air source	4-6KG 30L/MIn
Using power	220V 50HZ 1200W
