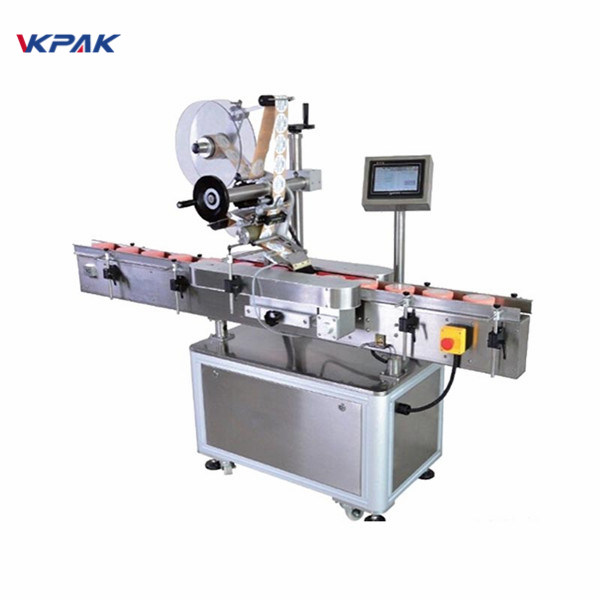

Label Application Equipment Auto Labelling Machine 1600mm*1100mm*1200 mm

Detailed Product Description

Power:	1 Kw,380V Three-phase,50HZ	Type:	Electric,Automatic
Labeling Speed:	40-100/min	Macgine Size:	1600mm*1100mm*1200 Mm

Paste Labeling Machine/Glue Labeling Machine/Sticker Labeler

Application:

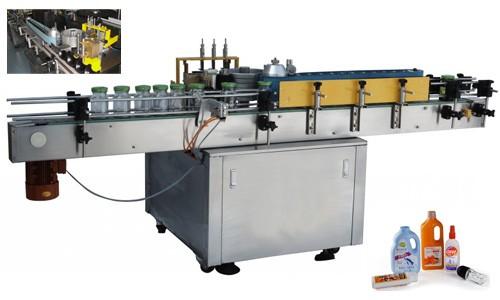

This wet glue labeling Machine is designed for round bottle labeling. It is suitable for all kinds of cylindrical objects.

Operation:
After the labeling machine operates, the labeling rod sticks resin adhesive firstly, then the label box transfer labels to the labeling rod, after rotating, labels will be sucked to the vacuum belt through vacuum suction, then labels will be posted completely on the bottle.

Technical parameter:

Capacity(BPM)	40-100
Diameter of bottle	30-110 mm
Size of label (L*H)	50-330—40-150 mm
Vertical error	±1
Labeling rate	≥99.8%
Power supply	380V three-phase,50HZ
Motor power	1.0KW
Gas consumption	4-6kgs/Min

Configuration:

Configurationname	brand	Operating principle
Machine Shell	AISI304	304 stainless steel: Strong Corrosion Resistance.
Pneumatic Control	German FESTO	Control the air cylinder of label box to delivery label and guarantee the cycle operation.
Main Converter	Taiwan DELTA	Speed regulation: Regulate the speed of conveyor belt motor, main motor and ensure the labeling synchronicity, is the main control part of the machine.
Reduction Driver	Taiwan LeeMing	Reduce the motor operating frequency, cooperate with the machine work normally.
Main Mart of Vacuum Machine	Taiwan CRELEC	In the process of operation, through the vacuum belt and acuum shaft to suck the on the bottle.
Main Motor	Taiwan TECO	Drive the whole machine.
Contactor	Taiwan SHIHLIN	Control the operation of the vacuum machine.
Bearings	NSK
Scraping Belt	Italy REGINA	304 stainless steel, guarantee the cycle operation.
Screw Thread Bottle Separator	Switzerland Raw material	Separate bottles on the conveyor chain at a certain distance, and via induction photoelectric device reaction to ensure the labeling rate.
