Detailed Product Description
Production Speed: | 45m/min | Labeling Accuracy: | ±1mm |
---|---|---|---|
Label Outer Diameter: | 330mm | Function: | Labeling Stiicker Labels |
Supply Of Power: | 1200W | Labeling Range: | 30-100mm Bottles |

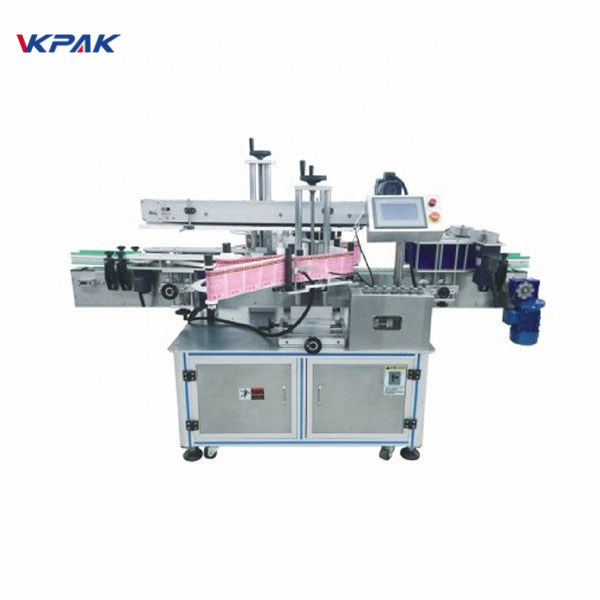

Liqueur Round Glass BottleAdhesive Labeling Machine Alcohol Industry
Technical Parameters
Production speed | 45m/min |
Labeling accuracy | ±1mm |
Label max width | 190mm |
Bottle diameter | 30-100mm |
Label inner diameter | 76.2mm |
Label outer diameter | Max330mm |
Outline size | L2000×W700×1400mm |
Air source | 4-6KG 30L/MIn |
Using power | 220V 50HZ 1200W |
Product Characteristic
1 , Wide application, adapt to the dimension of 10-100mm round bottle labeling.
2 , High accuracy, and the error of label joining part is no more than 0.5mm
3 , Adopt extrusion device to feeding, just need to put work- pieces, the machine can automatically finish labeling.
4 , Use chuck type to adjust, different work-piece can cut over easily.
5 , Use the synchronous belt, the stability of the mechanism is greatly improved.
6 , Desktop design, make the structure simple, figure small and function strong.
7 , Anode corundume alloy shelf and the deluxe computer white electricity box make the figure beautiful and generous.
8 , Advanced magic eyes, make the sensitivity high for the object and label
Advantages
1 , Most component are made by aluminum,cutting the weight and cutting the transportation fees.
2 , The production max speed is about 45m/min.Labeling accuracy is ±1mm.
3 , The machine’s Using power,dimension,Weight are customized.
Application
1 , The machine is apply to the Daily Chemical and Food Industry.
2 , Labeling max width is 190mm(can be raised according to the require)
3 , The air pressure pump of air source is 4-6KG, about 30L/MIn.
4 , Bottle diameter:30-100mm, Label inner diameter is 76.2mm, max outer diameter is 330mm.

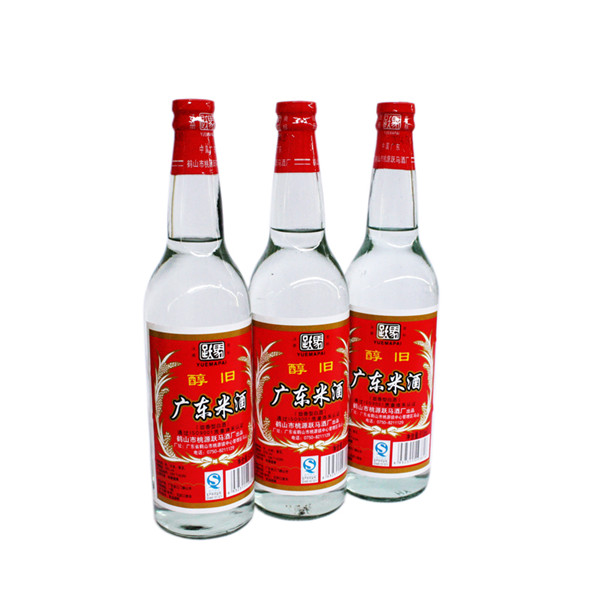

Bottle's Sample
