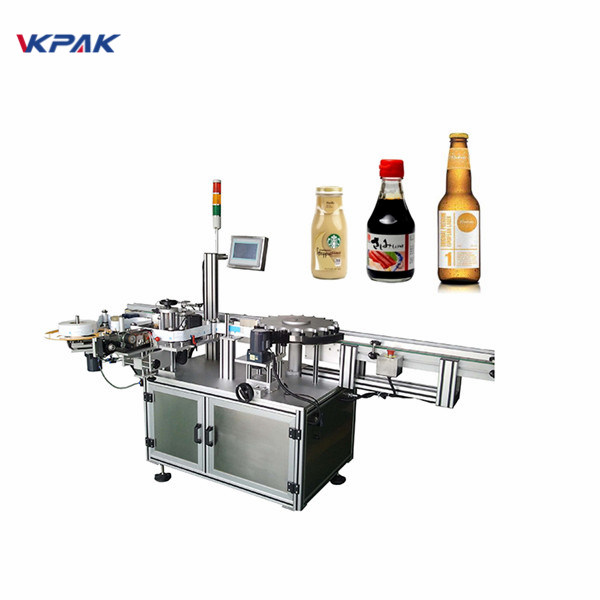

Orientated Wrap-around Labeling System For Round Bottle
Detailed Product Description

Speed Of Production:45m/minPrecision Of Labeling:±1mm
Max Width Of Label:190mmLabel Inner Diameter:76.2mm
Label Outer Diameter:330mmUsage:Adhesive Labels Bottles
Motor:Imported MotorAdvantage:Widely Used

Orientated Wrap-around Labeling System for round bottle / container/jar

Product Characteristic

1 , Main Parts Used Imported Brand, increases stability and durable of machine.

2 , Share parts with high precision processing, with advanced control system program

3 , The machine is particularly applicable to circular label for big round bottles,high repeat accuracy,without air bladder,with special design, no need the structure of separate bottle it makes the system easier, higher efficiency.

4 , The range of labels is extended because of hign-power servo motor.Solves the common problem of the insufficient strength.

5 , The machine adopts our company patent technology.The inaccurate labeling is eliminated largely because of the structure of three rollers capable of locating labeling position,automatically.

6 , The label station can be chosen to label one piece or two pieces,and it can label the washing hand liquid bottles in front and back at the same time.

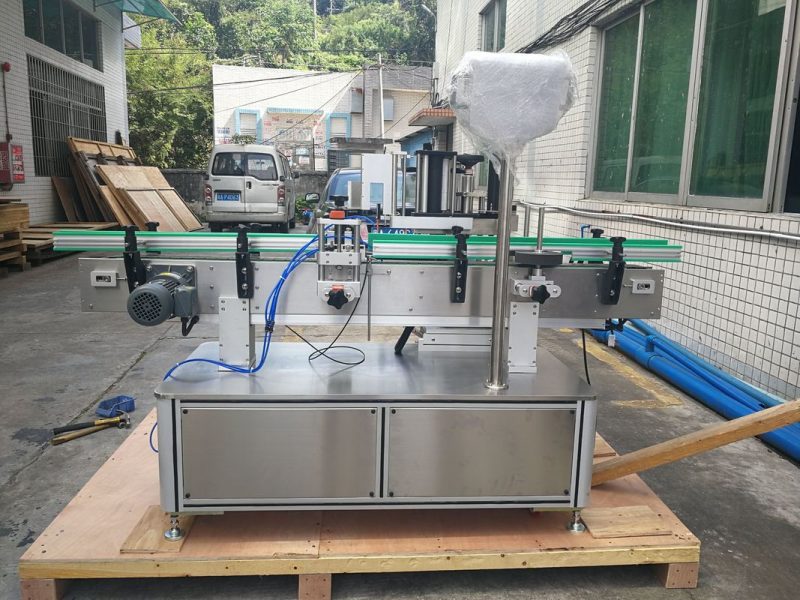

7 , With the advanced interface system,on-line helping system,really human-machine communicating,it is easy to operate so the workers can install the machine within 5 hours.China Orientated Wrap-around Labeling System For Round Bottle / Container / Jar supplier

Application

1 , The air pressure pump of air source is 4-6KG,about 30L/MIn.

2 , The machine is apply towrap around ,front and back of round bottle ,orienation labeling for round bottle in the Daily Chemical and Food Industry

3 , Labeling max width is 190mm(can be raised according to the require)Bottle diameter:30-100mm.

4 , Label inner diameter is 76.2mm,max outer diameter is 330mm.

5, Speed around 2500B/H

Technical Parameters

Production speed45m/min
Labeling accuracy±1mm
Label max width190mm
Bottle diameter30-100mm
Label inner diameter76.2mm
Label outer diameterMax330mm
Outline sizeL2000×W700×1400mm
Air source4-6KG 30L/MIn
Using power220V 50HZ 1200W

Product details

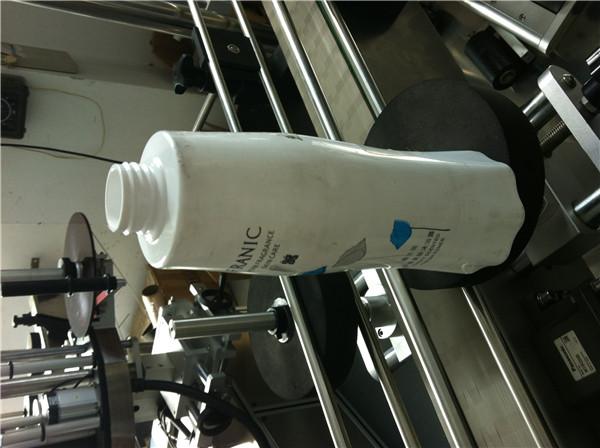

Orientated Wrap-around Labeling System For Round Bottle / Container / Jar

Tag: pet bottle labeling machine, wrap around label applicator
