Paper Tube Labeling Machine 500 Roller Lay Self Adhesive Fabric Sticker Label
Detailed Product Description

Type:Pill Bottle Vial Sticker Labelling Machine For Small Jars Label StickerApplication:For All Kinds Of Regular And Irregular Containers
Labeling Speed:60-500pcs/minFunction:For Small Jars And Bottles Label Sticker
Material:SUS304 Stainless Steel & High Grade Aluminum AlloyHeight Of Object:25-95mm
Thickness Of Object:12-30mmHeight Of Label:20-90mm
Length Of Label:25-80Key1:Cookies Label Sticker
Key2:Perfume Label StickerKey3:Polyester Sticker Label

paper tube labeling machine 500 roller lay self adhesive fabric sticker label

Features:

1. Unique bottle at three-point position, avoid to linear labeling machine labeling bottle is irregular, and the bottle is not caused by the error of vertical labeling skew, then it let labeling more accurate, beautiful, caressespositioning,improve the labeling accuracy,two space adjust, wide adjustable range.

2. Adopts for Japanese OMRON imported object detect magic eye and German DANFOSS imported main converter,simple operation,stability running

3. imported the Japannese PLC system,the touch operating system in English and Chinese,man-machine dialogue,operation simple

4. Main body is made by SUS304 stainless steel & high grade aluminum alloy.

Technical Parameters:

Namepaper tube labeling machine 500 roller lay self adhesive fabric sticker label
Labeling Speed60-500pcs/min
Height of Object25-95mm
Thickness of Object12-25mm
Height of Label20-90mm
Length of Label25-80mm
Label Roller Inside Diameter76mm
Label Roller Outside Diameter420mm
Accuracy of Labeling±0.5mm
Power Supply220V 50/60HZ 2KW
Gas Consumption of Printer5Kg/m2(if add coding equipment)
Size of Labeling equipment2500(L)×1250(W)×1750(H)mm
Weight of Labeling equipment150kg

Main configuration:

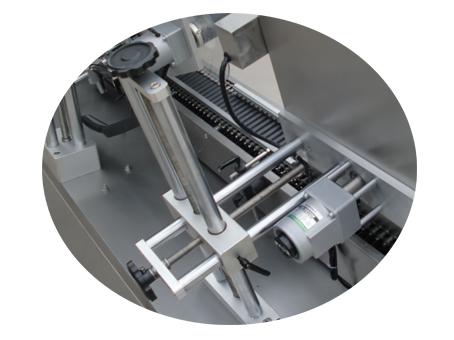

Paper tube labeling machine 500 roller lay self adhesive fabric sticker labelHeight adjusting: rotate the adjusting handle grip clockwise to lift the mainframe, counter-clockwise to low down.

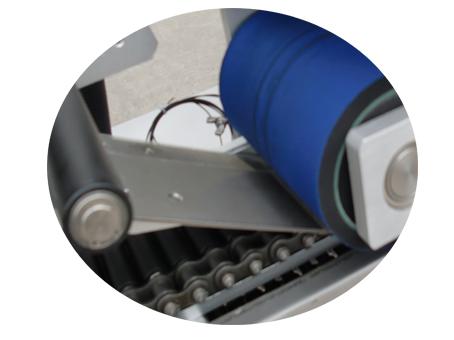

peel off board:

label paper belt is cross the label rob ,then peel off board feed the label and blank paper.

Paper tube labeling machine 500 roller lay self adhesive fabric sticker label
Paper tube labeling machine 500 roller lay self adhesive fabric sticker label1. feeding paper plate

2. label paper belt

3. belt guiding rod

4. label detector photo-eletric

5. peel off board

6. label straining rubber roller

FAQ

1. Can you do customized packing machine?

Yes,of course. We are not only produce the labeling machine ,but alsospecializein packing machinery manufacturer with morn than 10 years experiences,we can do packing machinery accourding to the customer's requirements.

2. What does the coding machine mean?

Coding machine is the code printer, to print the series no. and production date etc. if any.

3.What can we provide any other facilities? Guarantee period? Spareparts?

One year gurantee. There are spare parts (thermocouple and heating bars) and tools (screwdrivers, wrench) to be delivered together with the machine.

Tag: vial sticker labeling machine, small bottle labeling machine
