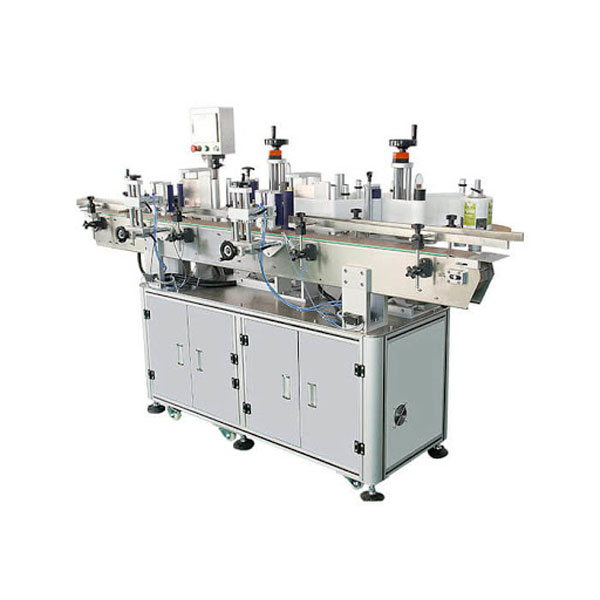

PCL Control Automatic Sticker Labeling Machine For Round
Detailed Product Description

Applicable Container Length:30-100mmMachine Warranty:1 Year
Label Width:190mmProduction Speed:150pcs
Labeling Accuracy:±0.5mmSuttle Weight:200KG

Autodouble side label machine for round / flat / square bottles

Features

1 , Automatic Self adhesive sticker labeling machine for single side/ two sides label to apply labels on side of square, round or flat products like bottles, glasses bottles, etc.

2 , Automatic Self adhesive sticker labeling machine for single side label to apply labels on single side of square, round or flat products like bottles, glasses bottles, etc.

3 , PCL control system, touch screen operation interface,

4 , Servo motor control labelling head

5 , Label sensor for normal self-adhesive label

6 , With bottle separating device.

7 , Stainless steel machine construction

Application

1 , The machine applys to sigle side, double and facade labeling of all kinds of quadrate & flat bottles in pharmacy, food beverage, daily chemical industry etc.

2 , The machine adopts PLC process control, photo-electricity bottle checking and label delivery.

3 , The machine are composes of high production effiency, labeling precise and reliable, operation convenience, and wide adaptive scope etc.

4 , Full automatic transmission device, electrcity source place conbine with high precise density steel star gear, including automatic suited machinery safty device.

Advantages

1 , This machine suit for double sided labeling of the square bottle,flat bottle and round bottles.

2 , Installed round bottle institution on it , realize round bottle labeling , plus one sensor , can realize orientation labeling of the round bottles. The speed is around 2500B/H, max label high 168mm (accept custom).

3 , Using 82.6mm chain board width , Suit for diameter / width 30-110mm bottles, flat bottle, round bottle, square bottle and some irregular bottles.

4 , Labeling head: new design, more stable, width 200mm, suit max label high 190mm, eight orienation adjustment.

5 , Machine can work with ribbon date printer and injek printer.

6 , When you have a lot of kinds of bottles, when labeling, only need to adjust machine.

7 , Only need to adjust oval bottle synchronous chain correcting device, for oval bottle.

Technical Parameters

Production speed45m/min
Labeling accuracy±1mm
Label max width190mm
Bottle diameter30-100mm
Label inner diameter76.2mm
Label outer diameterMax330mm
Outline sizeL2000×W700×1400mm
Air source4-6KG 30L/MIn
Using power220V 50HZ 1200W

Product Details

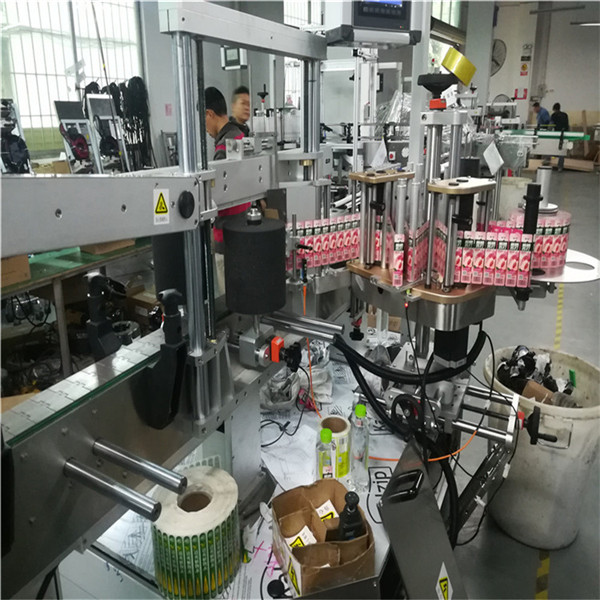

PCL Control Automatic Sticker Labeling Machine For Round / Flat / Square Bottle
