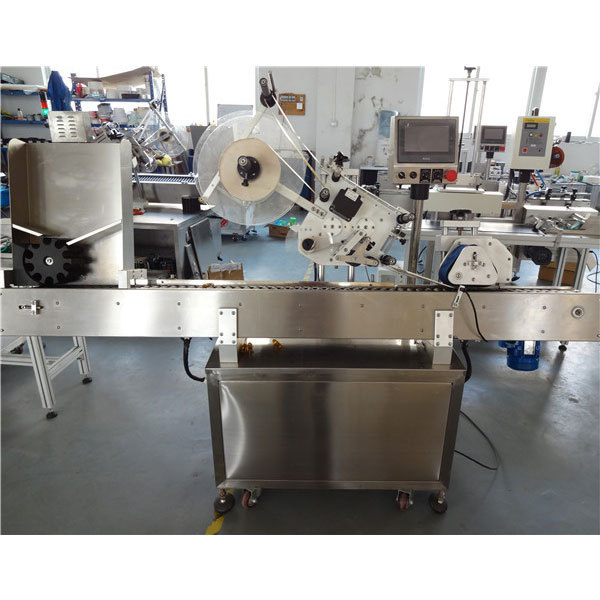

Plc Control Economy Automatic Vial Horizontal Labeling Machine For Mini Bottle

Detailed Product Description

Material:	Labeling Machine's Main Body Is Made Of SUS304 Stainless Steel	Labeling Speed:	60-300pcs/min
Height Of Object:	25-95mm	Thickness Of Object:	12-25mm
Length Of Label:	25-80mm	Label Roller Inside Diameter:	76mm

Easy operation PLC control economy automatic vial horizontal labeling machine for mini bottle

Features

The whole machine is made of high class stainless steel and aluminum alloy using anodizing treatment, it will never rust, which conform to GMP requirements. Marking head adopts imported high speed servo motor, to ensure the labeling speed and accuracy. All of the photoelectric control systems are adopted high-end products importing from Germany, Japan and Taiwan.

Application

This Easy operation PLC control economy automatic vial horizontal labeling machine for mini bottleis made to label all kinds of small round bottles that cannot stand steady, like pet bottle, penicillin bottle and olive oil bottles. In order to achieve rationalization of production target and design. The machine comes with automatic labeling process, simple operation, high speed running, accurate labeling position, beautiful labeling. The machine can be used for pharmaceutical, chemical and foodstuff Industry labeling.

Description

Operation	Touch screen operation , PLC control system,a truly human-machine communication system is easy to learn and simple to manage.
Material	Labeling machine's main body is made of SUS304 stainless steel
Configuration	Our labeling machines adoptwell known Japanese, German, American, Korean or Taiwan brand parts
Flexibility	We can also add automatic feeding facility to machinery inaccordance with customers special requests.

Technical Parameters

Name	Vial Labeling Machine
Labeling Speed	60-300pcs/min
Height of Object	25-95mm
Thickness of Object	12-25mm
Label Roller Inside Diameter	76mm
Label Roller Outside Diameter	350mm
Accuracy of Labeling	±0.5mm
Power Supply	220V 50/60HZ 2KW
Gas Consumption of Printer	5Kg/m2(if add coding machine)
Size of Labeling Machine	2500(L)×1250(W)×1750(H)mm
Weight of Labeling Machine	150kg

FAQ

1. What shall I do if our bags not that heavy, it may move right and lefton the conveyorthen make the labeling not that accurate?

►We can add the vacum suction under the conveyor which will ensure the accuracy

2. What should we notice when we make the labels?

►The maximum size of the label roller out side diameter is 320mm; the minimum of the label roller inside diameter is 76mm.

► The direction of the labels: the image should be upward, if without coding the data and exp, the labels roll follow clockwise direction; if with coding, the labels roll should follow anti-clockwise direction.
