Detailed Product Description
Type: | PLC Changed The Labeling Speed Self Adhesive Sticker Automatic Labeling Machine For Penicillin Bottle | Labeling Speed: | 60-300pcs/min |
---|---|---|---|
Packaging Material: | Wood | Height Of Object: | 25-95mm |
Diameter Of Bottle: | 12-25mm | Label Roller Inside Diameter: | 76mm |
Label Roller Outside Diameter: | 280mm | Power Supply: | 220V 50/60HZ 2KW |
Weight Of Labeling Machine: | 150kg | Brand Of PLC: | MITSUBISHI(Japan) |
Brand Of Conveyor Motor: | H.Y(Taiwan) | Brand Of Label Feeding Motor: | GPG(Taiwan) |
PLC changed the labeling speed self adhesive sticker automatic labeling machine for penicillin bottle
Application :
1. Apply labels: the non-drying label, dry film, electronic supervision code, bar code, etc.
2. Applicable products: demand in big radian on the side of the lateral plane, surface, circular surface attached with a tag of the product.
3. Application industry: widely used in cosmetics, daily chemical, electronics, medicine, hardware, plastic and other industries.
4. Application: shampoo flat bottle labeling, lubricating oil bottle labeling flat, shampoo bottle labeling, etc.
Technical Parameters:
Name : PLC changed the labeling speed self adhesive sticker automatic labeling machine for penicillin bottle
Label Roller Inside Diameter : 76mm
Label Roller Outside Diameter : 280mm
Accuracy of Labeling : ±0.5mm
Power Supply : 220V 50/60HZ 2KWLabeling Speed : 60-300pcs/min
Height of Object : 25-95mm
Diameter of Object : 15-25mm
Height of Label : 20-90mm
Length of Label : 25-80mm
Gas Consumption of Printer : 5Kg/m2(if add coding machine)
Size of Labeling Machine : 2800(L)×1650(W)×1500(H)mm
Weight of Labeling Machine : 180kg
Configuration:
No. | part | brand | quantity |
1 | PLC | MITSUBISHI(Japan) | 1 |
2 | Conveyor / spokes governor | GPG(Taiwan) | 2 |
3 | HMI | WEINVIEW(Taiwan) | 1 |
4 | labeling motor | DELTA(Taiwan) | 1 |
5 | labeling motor driver | DELTA(Taiwan) | 1 |
6 | Conveyor motor | H.Y(Taiwan) | 1 |
7 | Conveyor motor gearbox | H.Y(Taiwan) | 1 |
8 | Label feeding motor | GPG(Taiwan) | 1 |
9 | Label feeding motor gear box | GPG(Taiwan) | 1 |
10 | Paper receiving motor | GPG(Taiwan) | 1 |
11 | Paper receiving motor gear box | GPG(Taiwan) | 1 |
12 | Paper receiving motor controller | GPG(Taiwan) | 1 |
13 | Spoke motor | GPG(Taiwan) | 1 |
14 | Spoke motor gearbox | GPG(Taiwan) | 1 |
15 | Object Feeding motor | GPG(Taiwan) | 1 |
16 | Object feeding motor gear box | GPG(Taiwan) | 1 |
17 | Label outing detect magic eye | LEUZE(Germany) | 1 |
18 | Label feeding magic eye | OMRON(Japan) | 1 |
19 | Paper receiving proximity switch | OMRON(Japan) | 1 |
20 | No label alarm magic eye | OMRON(Japan) | 1 |
21 | object detect magic eye | OMRON(Japan) | 1 |
22 | optical fiber | OMRON(Japan) | 1 |
Parts of machine:
parts | details |

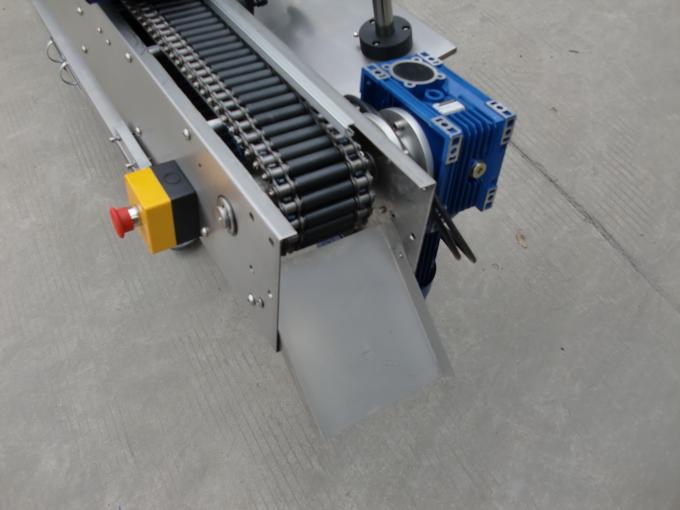

Spoke and brush 1. the brush tightly tough the object and label,then can not get goffer 2. Spoke twirls round and round that turns the small bottle | |
penicillin bottle: 150bottle/min regular labeling speed | |
Conveyor Belt 1. strain out the labels and make sure the label conveyorbelt is smooth. |
Tag: vial sticker labeling machine, small bottle labeling machine
