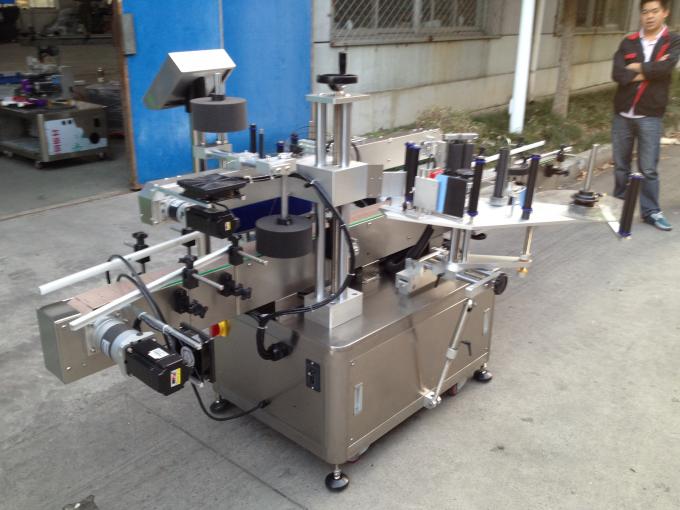

Round Bottle Cold Glue Flat Surface Label Applicator Machine

Detailed Product Description

Type:	Hot Melt Glue And Bopp Labeling Applicator Machine For Bottles Self Adhesive	Gas Consumption:	4-6kgs/Min
Capacity(BPM):	60-100/MIN	Dimension(L*W*H):	1600mm*1100mm*1200 Mm
Net Weight:	550kg	Superscript Rato:	≥99.8%
Supply Power:	380V、50HZ	Label Size:	50-300 40-150

Wet and automatic round bottle cold glue label applocator machine

Operation

After the labeling machine operates, the labeling rod sticks resin adhesive firstly, then the label box transfer labels to the labeling rod, after rotating, labels will be sucked to the vacuum belt through vacuum suction, then labels will be posted completely on the bottle.

Technical Parameters

Name	Hot melt glue and bopp labeling applicator machine for bottles self adhesive
Capacity(BPM)	40-100
Diameter of bottle	30-110 mm
Size of label (L*H)	50-330—40-150 mm
Vertical error	±1
Labeling rate	≥99.8%
Power supply	380V three-phase,50HZ
Motor power	1.0KW
Gas consumption	4-6kgs/Min
Glue	Water-soluble phenolic resin adhesive
Net weight	350KG

Application

High speed hot melt glue labeling machine for plastic bottle is designed for round bottle labeling. It is suitable for all kinds of cylindrical objects.

Our Services

1	Offer you professional labeling sulution according to your specific labeling requirements.
2	Supply you high quality labeling equipment after placing order.
3	Try to make the delivery time as short to meet your needs.
4	Provide you lifelong free technial support after you receiving our equipment

FAQ

1. What kind of labeling equipment do you have?

Dear Customer, we have automatic and semi-automatic labeling equipment for round containers and flat surface.

Some model for one label and others for two labels or even more. And we can design the equipment according to your specific labeling situation.

Thus, pls fell free to send us your labeling requirements, we'll provide you satisfying labeling solution.

2. Could we add coding equipment to print date and lot No.?

Yes, you can chose to add coding equipment to print the letters and No. you want.

It's hot stamp and can print at most three lines.

3. What information should we supply to check the suitable model?

Pls send us picture of your container and label, as well as the container and label size.

Pls also tell us what kind of label you use, if possible. (For exampe, self-adhesive, could glue, hot glue, etc. whether the label are in roll or pieces.)

Then, we'll let you check the suitable model.
