Detailed Product Description
Size Of Machine: | 2800(L)×1450(W)×1360(H)mm | Height Of Object: | 30-280mm |
---|---|---|---|
Thickness Of Object: | 20-200mm | Height Of Label: | 5-150mm |
Length Of Label: | 25-300mm | Accuracy Of Labeling: | ±1mm |
Label Roller: | With Carton Center | Labeling Speed: | 60-200pcs/min |
Power Supply: | 220/110V 2kw 50/60HZ | Control System: | Plc |
Magic Eye 1: | Detecting Label | Magic Eye 2: | Detecting Object |

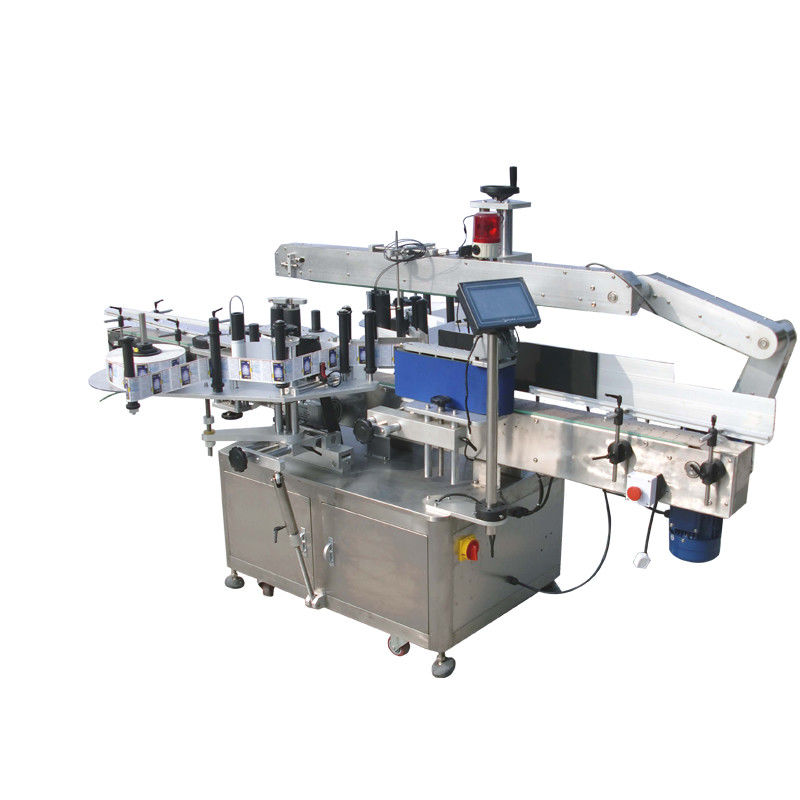

round bottles label applicator two side sticker labeling machine for beverage,food,chemical,medicine application
Features:
The labeling system is a rugged, reliable, economically priced pressure sensitive labeling system for front/back, side panel and wrap applications. It is ideal for budget-conscious companies with production ratesor less and may be hand loaded or integrated into a automatic production line. System features newly reconfigured flexible labeling head with MITSUBISHI plc control. VKPAK sets a new price threshold for automatic labeling. Advanced features such as heavy duty stainless steel construction and ‘no tool/ no change parts’ operation are all standard in the VKPAK .
The whole labeling machine can link in the washing machine, filling machine, capping machine, packing machine ect, there are ful production line.
Techinical parameter:
Type | Labeling machine |
Condition | New |
Packaging Type | Case |
Packaging Material | Wood |
Automatic Grade | Automatic |
Driven Type | Electric |
Power Supply | 220V 3.5KW 50/60HZ |
Size of Machine | 2800(L)×1650(W)×1500(H)mm |
Speed | 60-350pcs/min(relate to materials and labels'size) |
Height of Object | 30-350mm |
Diameter of object | 20-120mm |
Height of Label | 5-180mm |
Length of Label | 25-300mm |
Accuracy of Labeling | ±1mm (excluding the error of bottle and label) |
Can choose different types of sending label module according to clients' higher requirement for labeling speed and precision. |
Spare parts:
Name: Timing belt Number: 1 pcs
Name: O-belt Number: 2 pcs
Name: Hexagon wrench Number: 1 set
Name: Cross screwdriver Number: 1 pcs
Name: One screwdriver Number: 1 pcs
Spare parts is not easy broken parts. Normally not need spare. If you buy the labeling machine, we will provide those sqare parts for free.
configuration:
No. | part | brand | quantity |
1 | PLC | MITSUBISHI(Japan) | 1 |
2 | Main converter | DANFOSS(Denmark) | 1 |
3 | Bottle separating frequency convertor | DELTA(Taiwan) | 1 |
4 | HMI | WEINVIEW(Taiwan) | 1 |
5 | Servo labeling motor | DELTA(Taiwan) | 2 |
6 | Servo labeling motor driver | DELTA(Taiwan) | 2 |
7 | Conveyor motor | H.Y(Taiwan) | 1 |
8 | Conveyor motor gearbox | H.Y(Taiwan) | 1 |
9 | Spoke motor | GPG(Taiwan) | 1 |
10 | Spoke motor gearbox | GPG(Taiwan) | 1 |
11 | Bottle separating motor | GPG(Taiwan) | 2 |
12 | Bottle separating motor gear box | GPG(Taiwan) | 2 |
13 | object detect magic eye | OMRON(Japan) | 1 |
14 | optical fiber | OMRON(Japan) | 1 |
15 | Powder | DELTA(Taiwan) | 1 |
16 | No label alarm magic eye | OMRON(Japan) | 2 |
17 | Label outing detect magic eye | LEUZE(Germany) | 2 |
FAQ:
1).Label show erect goffer
Reason: the labeling output speed is too high, or the assembly line speed is to low
Solutions: slow down the label outputting speed or accelerate the speed of assembly line (speed of bottle moving)
2).Label show across goffer
Reason:
① the labeling output speed is too low, or the assembly line speed is to high
② the bottle shape is not good, it got pasted as spherical
Solution:
①accelerate the speed of labeling output or slow down the speed of assembly line
② increase the potency dimension of plough board or change better bottles.
