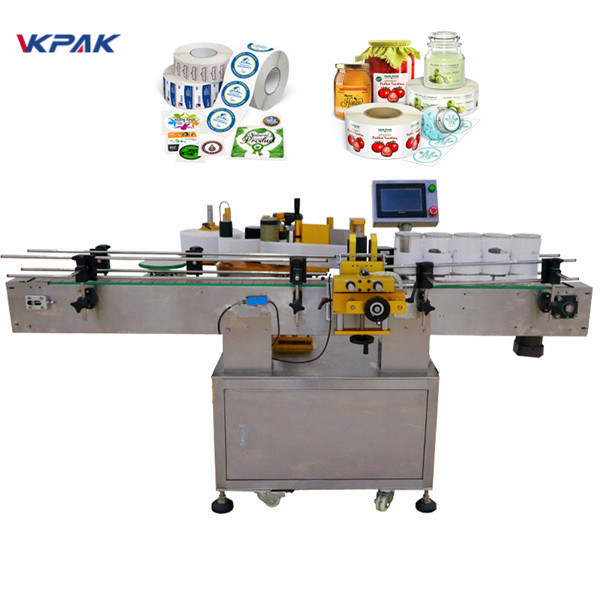

Self Adhesive Automatic Labeling Machine 15-140mm Label Height CE Approval
Detailed Product Description

Material:SUS304Diameter Of Object:20-120mm
Height Of Object:30-350mm

Best service 5 gallons bottle excellent automatic labeling machine with paging machine

Technical Parameters:

Name: High speed automatic flat stationery labeling machine

Labeling Speed: 60-350pcs/min

Height of Object: 30-350mm

Thickness of Object: 20-120mm

Height of Label: 5-180mm

Length of Label: 25-300mm

Label Roller Inside Diameter: 76mm

Label Roller Outside Diameter: 420mm

Accuracy of Labeling: ±1mm

Power Supply: 220V 50/60HZ 3.5KW

Gas Consumption of Printer: 5Kg/m2(if add coding equipment)

Size of Labeling equipment: 2800(L)×1650(W)×1500(H)mm

Weight of Labeling equipment: 180kg

Application:

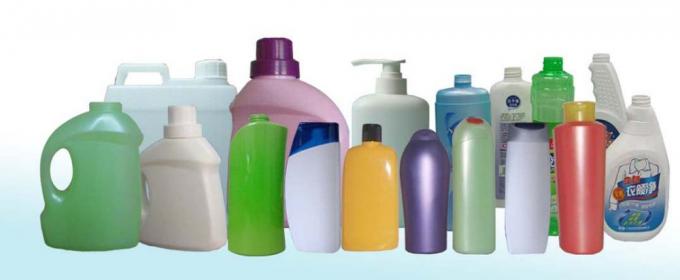

High speed automatic flat stationery labeling machine is suitable for all kinds regular and regular containers, flat surface or round bottles, especially ideal for flat surface and squarcontainers.flat bottles.jpg

Features:

OperationPLC control system makes labeling equipment easy to operate
MaterialLabeling equipment's main body is made of SUS304 stainless steel
ConfigurationOur labeling equipments adopt well known Japanese, German, American, Korean or Taiwan brand parts
FlexibilityClient can chose to add printer and code equipment; can chose to connect with converyer or not.

FAQ

1. What kind of labeling equipment do you have?

Dear Customer, we have automatic and semi-automatic labeling equipment for round containers and flat surface.

Some model for one label and others for two labels or even more. And we can design the equipment according to your specific labeling situation.

Thus, pls fell free to send us your labeling requirements, we'll provide you satisfying labeling solution.

2. Could we add coding equipment to print date and lot No.?

Yes, you can chose to add coding equipment to print the letters and No. you want.

It's hot stamp and can print at most three lines.

3. What information should we supply to check the suitable model?

Pls send us picture of your container and label, as well as the container and label size.

Pls also tell us what kind of label you use, if possible. (For exampe, self-adhesive, could glue, hot glue, etc. whether the label are in roll or pieces.)

Then, we'll let you check the suitable model.

Tag: sticker label machine, bottle labeling equipment
