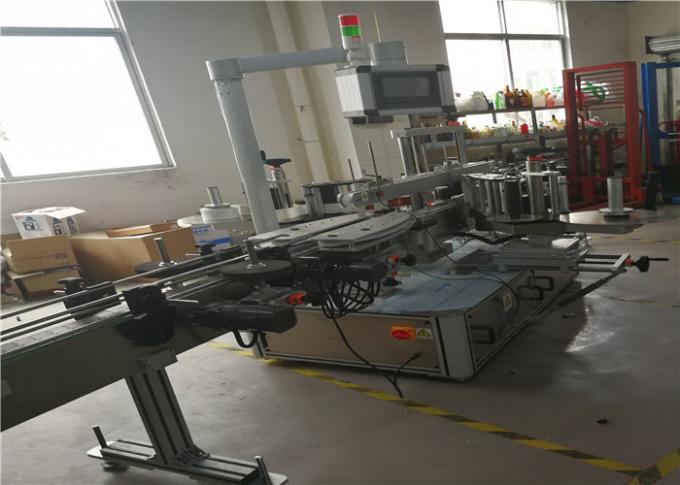

Self Adhesive Sticker Labeling Machine For Bottle Stick 3 Labels

Detailed Product Description

Product Of Material:	Most Aluminum And Stainless Stee	Place:	Guangzhou,China
Bottle Application:	Plastic,Glass	Speed:	250BS/Min
Accuracy:	1mm	Power:	6500W

Self Adhesive Sticker Labeling Machine For Chemical,Water Plastic Bottle

Application

1 , The machine is apply to the Daily Chemical,Medicineand Food and beverage Industry,

2 , The labeling machine stick 3 labels on one bottle

3 ,125mmLabel max width of Neck label

4 , Labeling height for front / back labels is 195mm.

3 , Bottle diameter of Thickness is greater than or equal to 30mm,height is less than or equal to 500mm,

4 , Label inner diameter is 76.2mm,max outer diameter is 400mm.

Technical Parameter

Production speed	250BS/min
Labeling accuracy	±1mm
Label max width	Neck label125mm front back label195mm
Bottle diameter	Thickness≥30mm Height≤500mm
Label inner diameter	76.2mm
Label outer diameter	400mm
Outline size	L4080 W1200×1600mm
Weight of labeling equipment	650KG
Using power of machine	380V/220V 50Hz 6500W

Product Characteristic

1 , Ensure accurate positioning is attached to objects,to achieve accurate labeling the shaping mechanism with special design.

2 , Adhesive Labeler,suit for neck,front,back labels of round bottle with one time finishing the labeling.

3 , The pressure between the driving shaft and roller is adjustable,when is the labels are running,the direction can be adjusted arbitrarily,rather than the ordinary elastic pressing.

4 , Double compression rollers structure,ensure that the label paper tension and avoid the label break off phenomenon because of back paper cutting injury,sectional type clutch makes tension more balanced.

5 , The machinecan install special institution,realize neck label wrap aound labeling,front and back labels for square,flat bottle at one finish.

6 , From famous factoryservo motor, realize the closed loop control to avoid the general stepping motorthe blind phenomenon,high precision subdivision,built in absolute value encoder all this in order to provide high accuracy.

7 , The new type lebeling head,the eight dimension adjustment,for special angle products,only need to adjust angle,easy operation and convenient.

Advantages

1 , The machine can do front and back ,neck labeling for one bottle with non-position labeling at one time

2 , It can neck and front labeling,front and back labeling;wrap around labeling of bottles

3 , Labeling equipment capacity 5000-8000B/H up to bottle size and label size

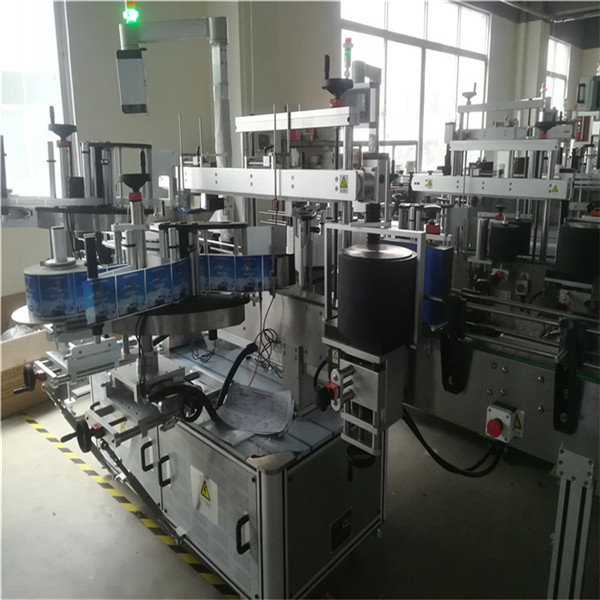

Product Details
