Self Adhesive Sticker Oval Bottle Labeling Machine Customized Condition

Detailed Product Description

Container Length:	30-100mm	Machine Warranty:	1 Year
Label Width:	190mm	Condition:	Customized
Accuracy:	±0.5mm	Suttle Weight:	400KG

Self Adhesive Sticker Oval Bottle Labeling Machine Customized Condition

Features

1 , Applicable to label whole curved surfaces or half curved surfaces on rotundities that can’t stand on their ontheir own fet with short diameter.

2 , Advanved touch human-compater interface which is easy and intuitionistic to operate and has completefunctions including abundant online help.

3 , The design of special tilting loading material method and conveying by idler wheel makes the objects to labelto be located automatically.

4 , Automatic photoelectric detection functions,such as cancelling labeling without objects there,stopping runningor raising an alarm without labels to use to avoid omitting or wasting lables.

5 , Simple and compact machine construction that is easy to operate and maintain.

6 , Well-knowen motor drive is matched with the complete machine that ensures a stable and reliable label-feeding speed.

7 , The sensor detect the product,transmit the signal to labeling control system;

8 , Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

9 , Running in a high automatization and intellectualization,no pollution.

10 , Beautiful appearance, beautifully designed, small size, saving plant space, the use of high efficiency machines.

Function

1 , Use the flexible adjustment of the pressure the top agencies and guides, ingenious design for combination of mechanical and structural adjustment and the winding labels. labeling location can be fixed after adjustment, so that it is simple and time-saving for adjustment of the conversion between different products and labels Winding.

2 , This machine can automatically attach adhesive labels or stickers film on the side surface of the product/ large curvature, circumference, and square surface, etc.

3 , Attached location is accuracy and stable; to avoid manual labeling, inefficient film, attached skew, foaming and folds, and irregular attached location problems, reduce cost, make product more nice, so that improve product competitiveness.

4 , Use PLC control system, touch screen, has standard sensor electronic control system, human control interface show prompted comments and complete function, operation function, easy to use and maintain.

5 , Labeling smooth, not wrinkled, no bubbles, labeling accuracy, high efficiency, good stability.

6 , For flat bottles, square bottles, arc bottles, this machine use double sides rigid with simultaneous oriented chain, can make sure the bottles on the middle automatically.

7 , Use PLC control system, touch screen, has standard sensor electronic control system, human control interface show prompted comments and complete function, operation function, easy to use and maintain.

Application

1 , The machine applys to sigle side, double and facade labeling of all kinds of quadrate & flat bottles in pharmacy, food beverage, daily chemical industry etc.

2 , Start-up system: depend on 3-5 pole motor driving, electronic control speed, full automatic transmission device, electrcity source place conbine with high precise density steel star gear, including automatic suited machinery safty device.

3 , The machine adopts PLC process control, photo-electricity bottle checking and label delivery.

4 , The machine are composes of high production effiency, labeling precise and reliable, operation convenience, and wide adaptive scope etc.

Advantages

1 ,This machine suit for double sided labeling of the square bottle,flat bottle and round bottles.

2 ,Installed round bottle institution on it ,realize round bottle labeling ,plus one sensor ,can realize orientation labeling of the round bottles.The speed is around 2500B/H,max label high 168mm (accept custom).

3 ,Using 82.6mm chain board width ,Suit for diameter / width 30-110mm bottles,flat bottle,round bottle,square bottle and some irregular bottles.

4 ,Labeling head: new design,more stable,width 200mm,suit max label high 190mm,eight orienation adjustment.

5 ,Machine can work with ribbon date printer and injek printer.

6 ,When you have a lot of kinds of bottles,when labeling,only need to adjust machine.

7 ,Only need to adjust oval bottle synchronous chain correcting device,for oval bottle.

Technical Parameters

Production speed	45m/min
Labeling accuracy	±1mm
Label max width	190mm
Bottle diameter	30-100mm
Label inner diameter	76.2mm
Label outer diameter	Max330mm
Outline size	L2000×W700×1400mm
Air source	4-6KG 30L/MIn
Using power	220V 50HZ 1200W

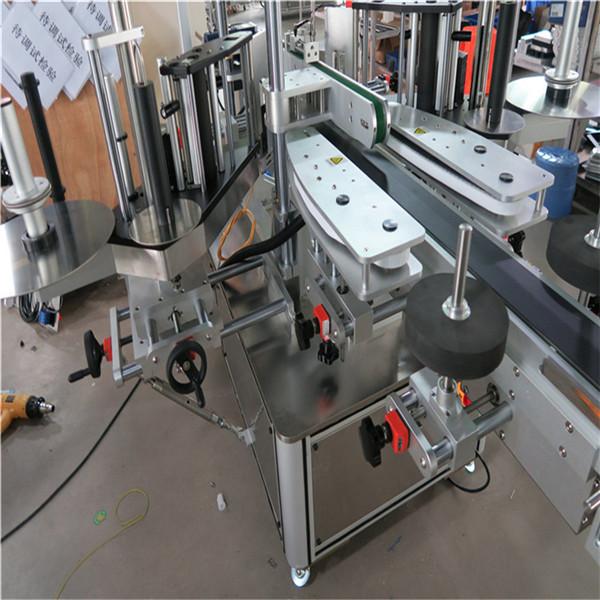

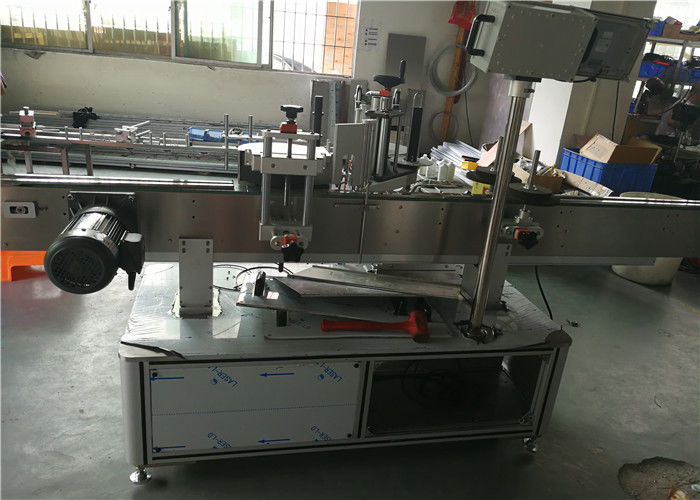

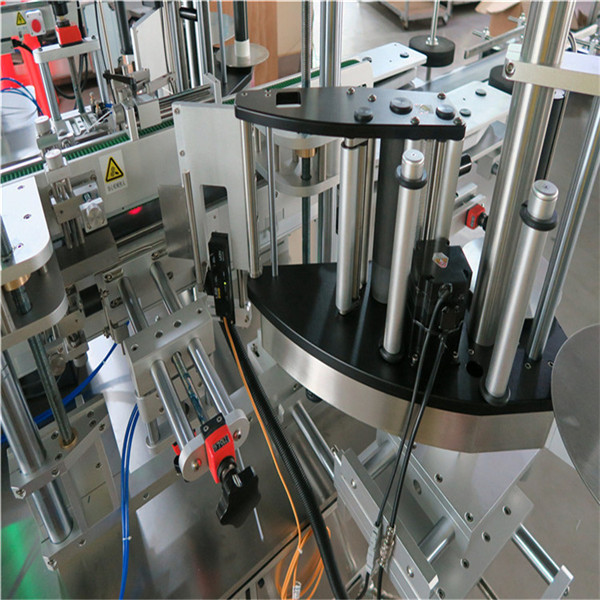

Product Details

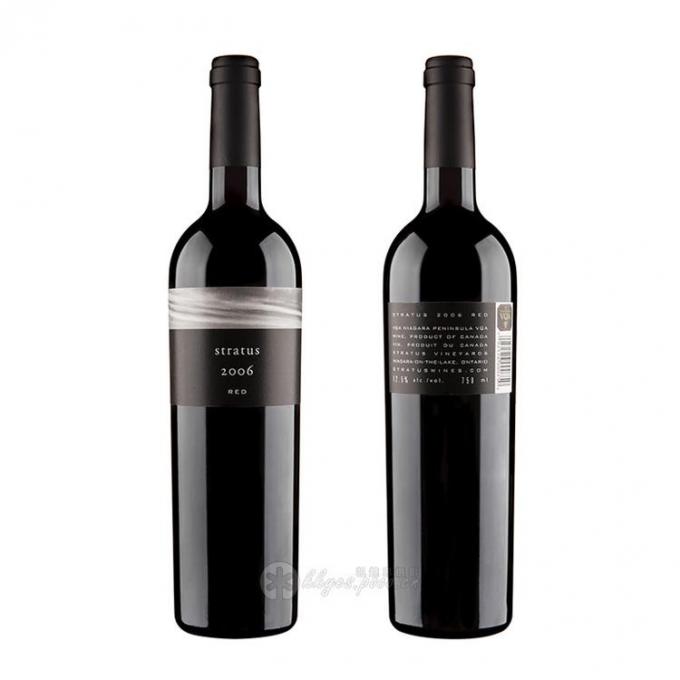

Bottle's Sample
