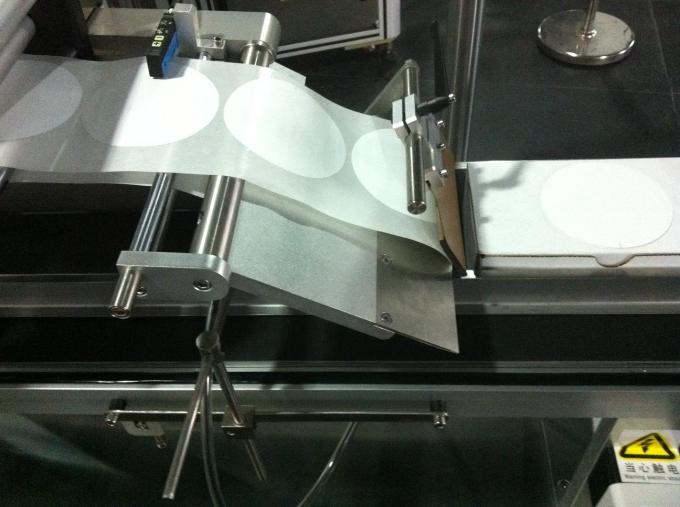

Self Adhesive Top Labeling Machine For Jar / Carton / Container

Detailed Product Description

Function:	Top Labeling On Jar	Label Type:	Sticker / Self Adhesvie
Driven Type:	Electric	Production Speed:	1-50m/min
Labeling Precision:	±1mm	Label Height Max.:	100mm
Weight:	180KG	Using Voltage:	220V 50HZ 1500W

Self Adhesive Top Labeling Machine For Jar / Carton / Container

Technical Parameters

Production speed	1-50m/min
Labeling accuracy	±1mm
Label max width	130mm
Label inner diameter	76.2mm
Label outer diameter	330mm
Outline size	L2000×W700×1400mm
Weight	180KG
Using power	220V 50HZ 1500W
Bottle diameter	10-300mm

Product Characteristic

1 ,It’s available to label on top, the perfect design and the advanced controlling and checking system guarantee it is labeled speedily and precisely. The advanced and kind human interface, interface freely and the on-line helping system make it easy to operate.

2 ,The famous high precise serve motor drives the labeling head and controls to convey the labels

The separated clutch makes the strain more balanced.It ensures accurate labeling

3 , The controlling system adopts SIMEMS and famous panel, the human interface can be operated in Chinese and English

4 ,It is convenient to adjust the labeling head, labeling speed is automatically synchronized with conveyor speed to ensure precisely labeling.

5 , Labeling dynamic entrainment institutions: clamp the product and apply label on product to improve labeling precison

Application

Themachine is apply to the Daily Chemical and Food Industry,Labeling max width is 130mm, Label inner diameter is 76.2mm,max outer diameter is 330mm.

Labeling organizations

Labeling head 6-dimensional space adjustment, the angle can be adjusted labeling, easy to paste all kinds of special products;

Elastic or flexible scraper brush, sponge roller extrusion without power, to ensure smooth labeling;

Machine used to strengthen the rigidity of the mechanical structure design, simple, stable

Labeling system for reference

Tag: top label applicator, flat surface label applicator
