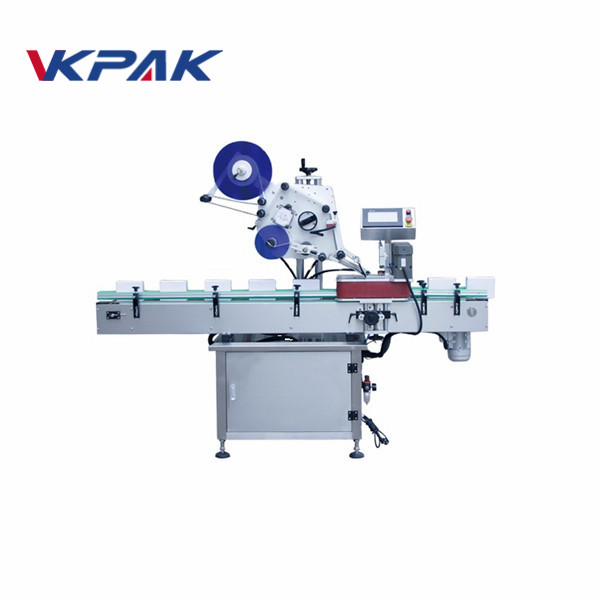

Servo Flat Surface Label Applicator With Coding Machine

Detailed Product Description

Automatic Grade:	Automatic	Power Supply:	220V  50/60HZ   0.75KW
Label Roller Outside Diameter:	350mm	Gas Consumption Of Printer:	5Kg/m2(if Add Coding Machine)
Size Of Labeling Machine:	1600(L)×550(W)×1600(H)mm	Driven Type:	Electric

Delta servo labeling motor driver automatic flat surface label applicator with coding machine

Touch screen operation ,a truly human-machine communication system is easy to learn and simple to manage. And PLC control system makes labeling machine easy to operate. The whole machine is made of high class stainless steel and aluminum alloy using anodizing treatment ,it will never rust, which conform to GMP requirements. Our labeling machines adoptwell known Japanese, German, American, Korean or Taiwan brand parts. We can also add automatic feeding facility to machinery in accordance with customers special requests.

Technical Parameters

Name	Flat Surface Label Applicator
Height of Label	15-110mm
Labeling Speed	20-200pcs/min
Height of Object	30-200mm
Width of object	20-200mm
Applicable Diameter of Bottle Body	20-200mm
Label roller inside diameter	76mm
Label roller outside diameter	350mm
Size of Machine	1600(L)×550(W)×1600(H)mm
Power Supply	220V 0.75KW 50/60HZ (if power supply different, a transformer is needed)

Competitive Advantages

1. The new industry-leading design, quality is more solid and excellence, by no means able to compare the existing domestic products.
2. The machine is simple and elegant structural components, ensures low failure rate, easy maintenance.
3. A full range of security principal security box, in fact, thoughtful design.
4. Synchronous bottles, delivery and stable.
5. Adjustable cutter, cutting maneuver, tool life doubled.
6. The man-machine interface, operating more humane.

Pre-sale service:

Provide free pre-sales technical consulting,and make a scientific and reasonable equipment layout, technological process and system of theoverall design and planning according to the actual needs of your factory ,make sure that the whole factory system of your factory is the most economic and effective.

We are dedicated to provide you with the highest cost-effective, high-quality products and meticulous after-sales service!To serve you, with your sincere cooperation and common development, is our highest pursuit of habitats.

Tag: flat label applicator, box labeling machine
