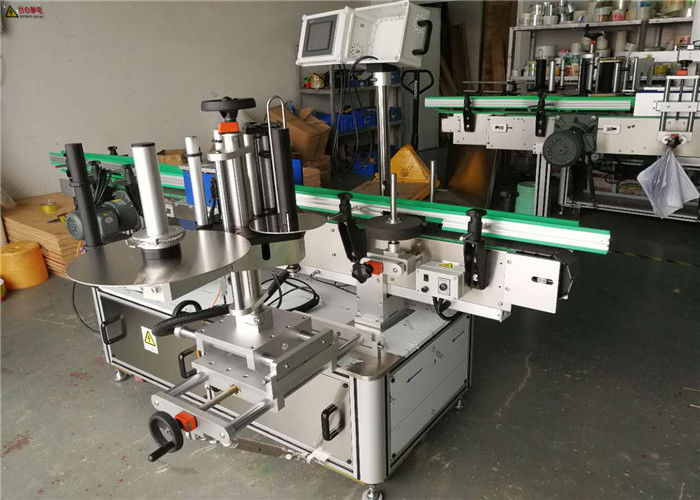

Servo Motor Bottle Labeler Machine For Round / Flat / Square Bottle

Detailed Product Description

Motor Method:	Server Motor	Machine Brand:	Boson
Package:	Woodcase Inner With PE Film	Specification:	L2000×W700×1400mm
Label Roll Core:	76.2mm	Label Roll Diameter:	330mm

Server Motor Bottle Labeler Machine For Round / Flat / Sqaure Bottle

Introduction

1 , This series of products are not only suitable for the s round can/jar/cylinder/bottle but also flat square two sides bottles in pharmaceutical, pesticide, food & chemical industries.

2 , It can automatically finish bottle-grouping, sending mark tape, separating labels synchronously, labeling and automatically printing batch number etc.

3 , With mechanics technology, it adopts big torque motor to drive, and imported photoelectric control & PLC program control system, thus guaranteeing accurate labeling, stable, reliable and high efficiency.

Features

1 , With micro-computer labeling system, fast & stable, suitable for longtime work
with system check function: labels lacking or broken, leaving out, e-stop, abnormal frequency-conversion, typewriter ribbon lacking, it can detect all & then stops auto.

2 , The I/O self-check function, can display all system photoelectric signals & motor, shorten repair time, reduce maintenance cost.

3 , With step less speed control, labeling speed automatically changes according to conveying speed, no need to move labeling sensor.

4 , Made of SUS304 & alumni alloy, totally meeting GMP requirements.

Description

1 , Designed for the application of front and/or back panel labels with the capability to label containers that are round, square, oval or rectangular.

2 , Heavy-duty construction utilizes oversized drive components combined with an aluminum and stainless steel base frame for years of dependable service.

3 , Various product infeed systems are available that provide precise product spacing and orientation. It can be used stand alone or integrated in-line and matching filling equipment speeds.

4 , Advanced high torque micro-stepping driven applicators include ratio-offset and speed-following capability for accurate and reliable application of a wide variety of label materials.

Useage

1, Round bottle labeling is suitable for pharmaceutical, food, cosmetic and other industries, can be attached to the whole week and half circle labeling labeling.

2 , Optional automatic turntable machine, can be directly connected to the front end of the production line, automatic feeding bottle into the labeling machine, increase efficiency.

Working principle

1 , The control system is provided with a control system to send out the label and attach to the product to be in the position of the label, the product flows through the marking device, the marking belt drives the product to rotate, the label is rolled and a label attached to the action is completed.

2 , The core work principle: the bottle body will be separated from the product, the sensor detects the product passed, the signal back to the label control system, in the appropriate place.

3 , Operation process: put the product (can be connected line) - > product delivery (equipment automatically realized) - > product range - > Product Detection - Labeling - > cover label - collection has been labeling products.

Scope of application

1 , Applicable labels: self adhesive labels, adhesive film, electronic regulatory code, bar code, etc..

2 , Applicable products: products that require a label or film on the circumferential surface.

3 , Application industry: widely used in food, medicine, cosmetics, daily chemical, electronic, metal, plastic and other industries.

4 , Application examples: PET round bottle labeling, plastic bottle labeling, food cans, etc..

Service

1 , Range experienced senior engineer come to client company for installation .

2 , If quality problems arise, the supplier provide technical support and timely supply wearing parts.

3 , Supply systematic operation training for client workers.

4 , Client usedthe machine for several years, we can provide a detailed refurbishment program, the original equipment and replacement of hardware and software upgrades, extend machine service life for more than 3-4 years.

5 , Guarantees all equipment (except human factors) within one year, lifetime maintenance sevices.

Apply to

1 , Label inner diameter is 76.2mm,max outer diameter is 330mm.

2 ,The machine is apply to the Daily Chemical and Food Industry,

3 , Labeling max width is 190mm(can be raised according to the require).

4 , Bottle diameter of Thickness is greater than or equal to 30mm,height is less than or equal to 500mm.

Technical Parameters

Production speed	45m/min
Labeling accuracy	±1mm
Label max width	190mm(can be raised according to the require)
Bottle diameter	Thickness≥30mm height≤500mm
Label inner diameter	76.2mm
Label outer diameter	Max330mm
Outline size	L2000×W700×1400mm
Weight	380KG
Using power	220V 50HZ 1500W
