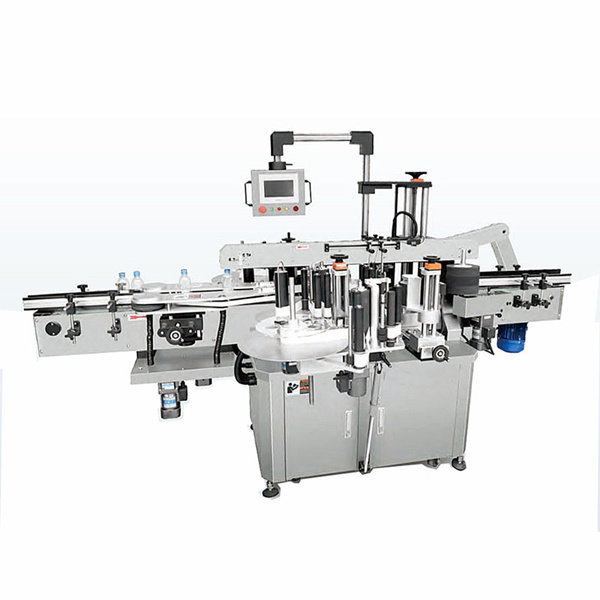

Ss 350ml Plastic Round Bottle Labeling Machine With Coding Machine

Detailed Product Description

SS 350ml plastic round bottle labeling machine with coding machine

Application:

The labeling Machine is suitable for all kinds of cylindrical objects, such as glass bottles, Plastic bottles. (The machine also can be customized for cone objects)

Client can choose to add screw bottle separator or coding machine.

It can work separately or connecting with conveyor to work with other equipment.

Features:

1. The machine is made in SUS304 stainless steel and high grade aluminum alloy.
2. Imported step motor or servo motor is used for the labeling head to assure labeling speed and accuracy.
3. The photo electricity and control system apply advanced component from Germany or Japan or Taiwan.
4. Use PLC man-machine interface control system, which is easy to understand.

Technical Parameters:

■ Size of Machine: 2000(L)×1000(W)×1300(H)mm

■ Labeling Speed: 20-200pcs/min (Depend on the length of label and diameter of bottle)

■ Height of Object: 30-280mm

■ Diameter of object: 30-120mm

■ Height of Label: 15-140mm

■ Length of Label: 25-300mm

■ Accuracy of Labeling: ±1mm (excluding the error of bottle and label)

■ Inside diameter of Label roller: 76mm

■ Outside diameter of Label roller: 380mm

■ Power Supply: 220V1.5HP 50/60HZ (if power supply different, a transformer is needed)

■ Air consumption of Printer: 5Kg/cm2 (if use the coding machine)

■ Weight of Machine: 150Kg

Configuration

No.	part	brand	quantity
1	PLC	MITSUBISHI(Japan)	1
2	Main converter	DANFOSS(Denmark)	1
3	Dividing bottle converter	DELTA(Taiwan)	1
4	HMI	WEINVIEW(Taiwan)	1
5	Servo labeling motor	DELTA(Taiwan)	1
6	Servo labeling motor driver	DELTA(Taiwan)	1
7	Conveyor motor	TCG(Taiwan)	1
8	Conveyor motor gearbox	TCG(Taiwan)	1
9	Dividing bottle motor	GPG(Taiwan)	1
10	Dividing bottle motor gearbox	GPG(Taiwan)	1
11	object detect magic eye	OMRON(Japan)	1
12	optical fiber	OMRON(Japan)	1
13	Label outing detect magic eye	LEUZE(Germany)	1
14	Label stock electric eye	OMRON(Japan)	1

Option:

■ screw rod bottle separator

■ coding machine

■ transparent label monitor

Quotation:

• Payment term: TT, 100% to be paid before production
• Delivery time: normally 12-15 days after receipt of payment
