Sticker Label Applicator For Front Back And Wrap Around Label Bottle

Detailed Product Description

Application Industry:	Beverage, Chemical, Commodity, Food, Medical	Delivery:	15 Working Days
Conveyor Type:	Chain Board	Production Speed:	45m/min
Labeling Accuracy:	±1mm	Bottle Diameter:	Thickness≥30mm Height≤500mm
Labels Roll Inner Diameter:	76.2mm	Labels Roll Outer Diameter:	Max330mm

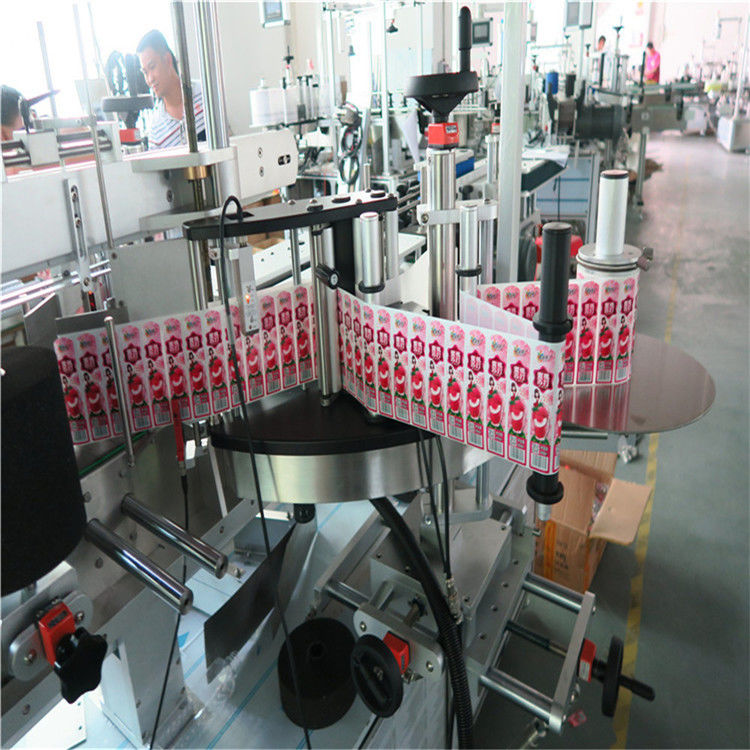

VK-650G Sticker Label Applicator for front back and wrap around label bottle

Advantages

1 , Most component are made by aluminum of anodizing and 304 SS .conveyor side board 3.0mm

2 , Accept OEM according to your current plant conditions

3 , The machine used for all industries such as daily chemicals, petroleum, machine oil, cleaning supplies, food and beverage, pharmaceutical etc

4 , Changing different size bottle very fast, easy to cooperate,orderliness beautiful, clean, easy to wash

5 , Label on bottle without wrinkle,no bubbles

Product Characteristic

1 , The automatic labeling machine is suitable for square bottles or flat bottles with double sided and one side

2 , The labeling head can be adjusted at eight orientations, so the machine can be adjusted successfully in several minutes for any bottle.

3 , The touch screen interface in Chinese and English with the online helping system makes it easy for operate the machine for the workers .

4 , The labeling head adopts the structure of the double press rollers. it guarantees that the label is pulled tightly but isn't broken

Technical Parameter

Production speed	45m/min
Labeling accuracy	±1mm
Label max width	190mm(can be raised according to the require)
Bottle diameter	Thickness≥30mm height≤500mm
Label inner diameter	76.2mm
Label outer diameter	Max330mm
Outline size	L3048×W1700×1500mm
Weight	380KG
Using power	380/220V 50HZ 3000W

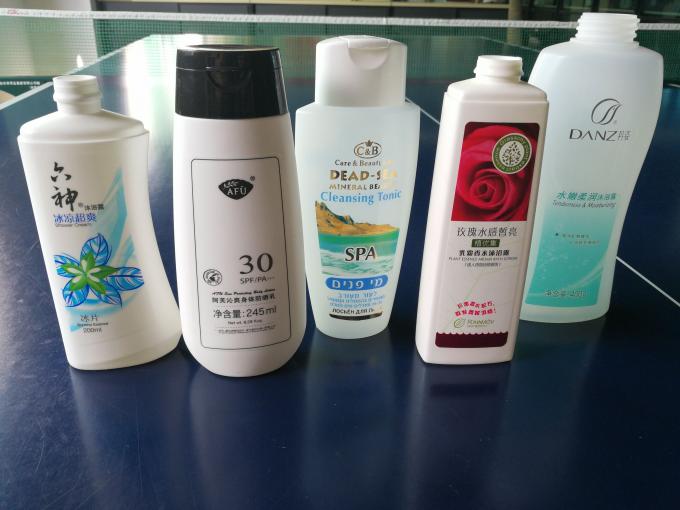

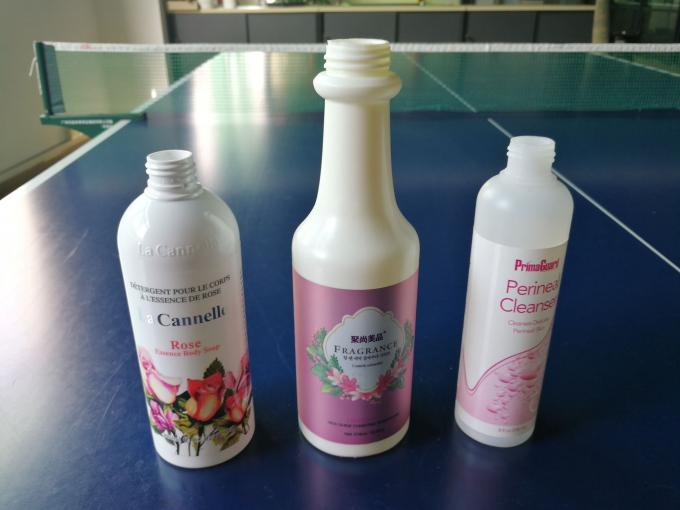

Labeled bottles
