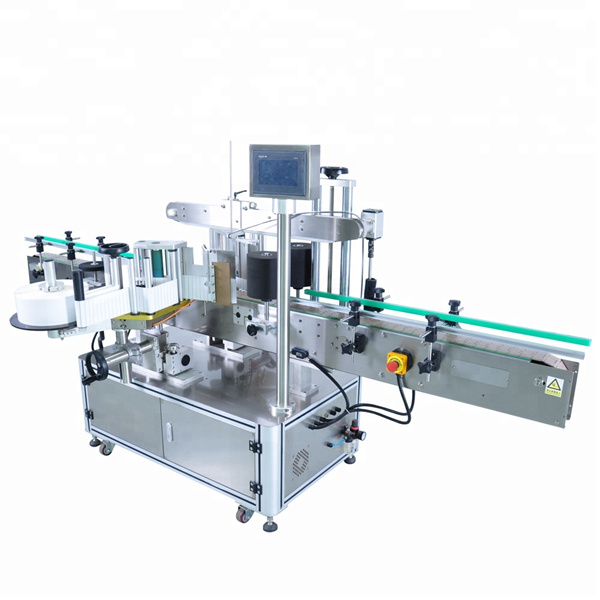

Three Labels Self Adhesive Labeling Machine
Detailed Product Description

Delivery Time:7-20 DaysType:Self-adhesive Labeling Machine
Labeling Precision:+-1mmLabel Qty:Three Labels On One Bottle
Main Material:Aluminum Adozing And 304SSPlace Of Origin:Guangzhou
Packaging Details:Wood CaseAutomation Degree:Full Automatic
Voltage:220V / 110V /380VApplication:Beverage, Chemical, Commodity, Food

Front Back Neck Three Labels Self Adhesive Sticker Labeling Machine

Applications for

1 , The machine can realize the labeling of round, square and other type of bottles.

2 , The labeler can do neck,front and back labeling of bottles; neck and front labeling in aline,front and back labeling, neck labeling, front or back labeling, wrap around label etc

3 , Neck labeling ,label long is less 125mm

4, Labeling machine with three sets labeling heads .front ,back ,neck labels separate.

5, Speed 5000-8000B/H

Technical Parameter

Production speed250BS/min
Labeling accuracy±1mm
Label max widthNeck label125mm front back label195mm
Bottle diameterThickness≥30mm Height≤500mm
Label inner diameter76.2mm
Label outer diameter400mm
Outline sizeL4080 W1200×1600mm
Weight650KG
Using power380V/220V 50Hz 6500W

Description

1 , Can add ribbon printer, or heat transfer machine and automatic turntable (optional).

2 , The servo motor system.

3 , Machine with high labeling precision.

4 , Machine structure is simple, compact, easy to operation and maintenance.

5 , Advanced color HMI control system.

6 , Germany Siemens PLC control, high reliability.

7 , We can custom according to your labeled samples

Others

1 , Touch Screen Control System with 20 sets Job Memory

2 , Labeling speed up to 250BPM ( according to the length of label )

3 , Simple Straight Forward Operator Controls

4 , Special design for three-side labeling,also added fold label.

5 , On-Screen trouble description which is easy to solve

6 , Most material are made by Aluminum and less are Stainless Frame

7 , Open Frame design, easy to adjust and change the label

8 , Variable Speed with Servo motor

9 , Label Count Down (for precise run of set number of labels) to Auto Shut Off

10 , Stamping Coding Device attached

Machine picture

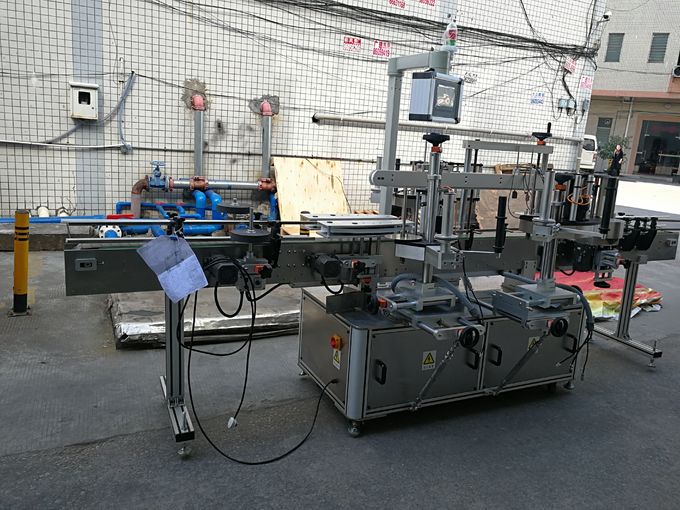

Three Labels Self Adhesive Labeling Machine 110V /380V Voltage

Tag: self adhesive sticker labeling machine, self adhesive labeler
