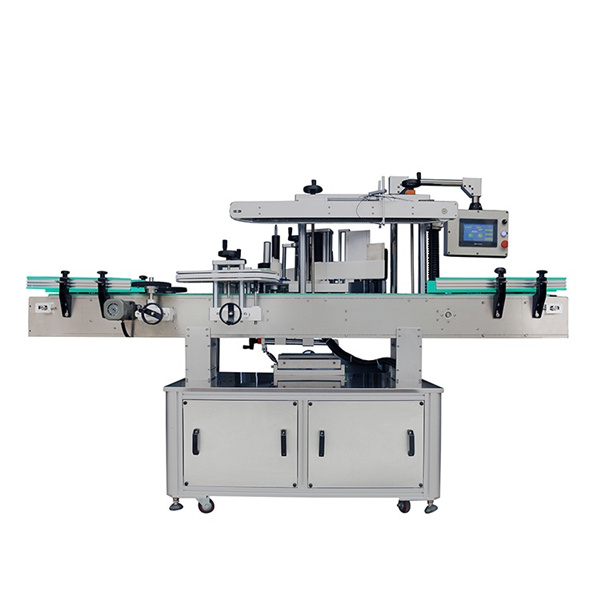

Three Linear Self Adhesive Labeling Machine Front / Back / Neck

Detailed Product Description

Label Type:	Sticker Labels	Production Place:	Shanghai
Package:	Woodcase Packaging	Production Speed:	250BS/min
Labeling Accuracy:	±1mm	Label Max Width:	Neck Label125mm Front Back Label195mm
Bottle Diameter:	Thickness≥30mm Height≤500mm	Using Power:	380V/220V 50Hz 6500W

Three Linear Self Adhesive Labeling Machine front /back and neck Beverage / Food / Daily Chemical

Technical Parameter

Production speed	250BS/min
Labeling accuracy	±1mm
Label max width	Neck label125mm front back label195mm
Bottle diameter	Thickness≥30mm Height≤500mm
Label inner diameter	76.2mm
Label outer diameter	400mm
Outline size	L4080 W1200×1600mm
Weight	650KG
Using power	380V/220V 50Hz 6500W

Product Characteristic

1 , Linear high-speed three labels labeling machine, suit for neck, front, back labels of round bottle with one time finishing the labeling.

2 , It can install special institution, realize neck label wrap aound labeling, front and back labels for square, flat bottle at one finish.

3 , The new type lebeling head, the eight dimension adjustment, for special angle products, only need to adjust angle, easy operation and convenient.

4 , Labeling head use double compression rollers structure, ensure that the label paper tension and avoid the label break off phenomenon because of back paper cutting injury, sectional type clutch makes tension more balanced.

5 , The pressure between the driving shaft and roller is adjustable, when is the labels are running, the direction can be adjusted arbitrarily, rather than the ordinary elastic pressing.the host uses servo motor from famous factory, realize the closed loop control to avoid the general stepping motor the blind phenomenon, high precision subdivision, built in absolute value encoder all this in order to provide high accuracy.

6 , The shaping mechanism with special design, ensure accurate positioning is attached to objects, to achieve accurate labeling.

Application

1 , The machine is apply to the Daily Chemical and Food Industry,

2 , Label max width of Neck label is 125mm, front back label is 195mm, Bottle diameter of Thickness is greater than or equal to 30mm, height is less than or equal to 500mm, Label inner diameter is 76.2mm, max outer diameter is 400mm.

Advantages

1 , Most component are made by aluminum, cutting the weight and cutting the transportation fees.

2 , The production max speed is about 250BS/min. Labeling accuracy is ±1mm. The machine’s Using power, dimension, Weight are customized.

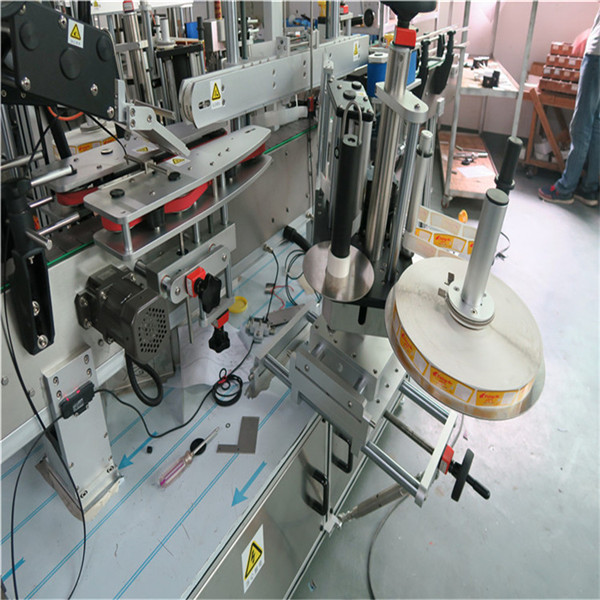

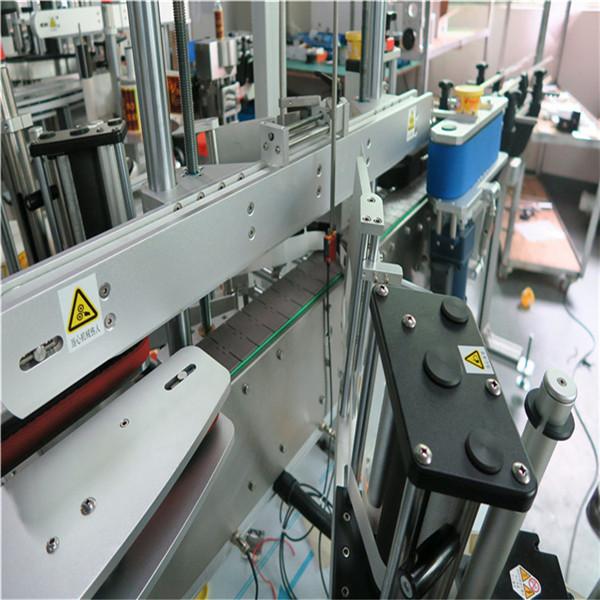

Product Details
