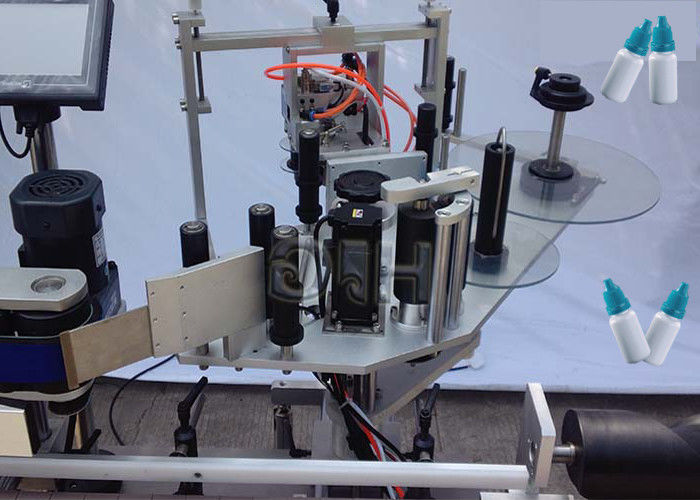

Top / Bottom Sides Vertical Sticker Round Bottle Labeling Machine With Automatic

Detailed Product Description

Advantage:	High Speed	Labeling Speed:	60-200pcs/min
Function:	Ahesive Sticker Labeling	Material:	Stainless Steel
Label Hight:	5-140mm

Top and bottom sides vertical sticker round bottle labeling machine with automatic

Application:

Top and bottom sides vertical sticker round bottle labeling machine with automatic is suitable for all kinds regular and regular containers, flat surface or round bottles, especially ideal for flat surface and squarcontainers.

Features:

Operation	PLC control system makes labeling machine easy to operate
Material	Labeling machine's main body is made of SUS304 stainless steel
Configuration	Our labeling machines adopt well known Japanese, German, American, Korean or Taiwan brand parts
Flexibility	Client can chose to add printer and code machine; can chose to connect with converyer or not.

Technical Parameters:

Name : Tube and water bottles labeling sticker machine full automatic
Labeling Speed : 60-350pcs/min
Height of Object : 30-350mm
Thickness of Object : 20-120mm
Height of Label : 5-180mm
Length of Label : 25-300mm
Label Roller Inside Diameter : 76mm
Label Roller Outside Diameter : 420mm
Accuracy of Labeling : ±1mm
Power Supply : 220V 50/60HZ 3.5KW
Gas Consumption of Printer : 5Kg/m2(if add coding machine)
Size of Labeling Machine : 2800(L)×1650(W)×1500(H)mm
Weight of Labeling Machine : 180kg

Our Services

♦. Offer you professional labeling sulution according to your specific labeling requirements.

♦. Supply you high quality labeling machine after placing order.

♦. Try to make the delivery time as short to meet your needs.

♦. Provide you lifelong free technial support after you receiving our machine.

FAQ

1. What kind of labeling machine do you have?

Dear Customer, we have automatic and semi-automatic labeling machine for round containers and flat surface.

Some model for one label and others for two labels or even more. And we can design the machine according to your specific labeling situation.

Thus, pls fell free to send us your labeling requirements, we'll provide you satisfying labeling solution.

2. Could we add coding machine to print date and lot No.?

Yes, you can chose to add coding machine to print the letters and No. you want.

It's hot stamp and can print at most three lines.

3. What information should we supply to check the suitable model?

Pls send us picture of your container and label, as well as the container and label size.

Pls also tell us what kind of label you use, if possible. (For exampe, self-adhesive, could glue, hot glue, etc. whether the label are in roll or pieces.)

Then, we'll let you check the suitable model.

Tag: self adhesive sticker labeling machine, label applicator equipment
